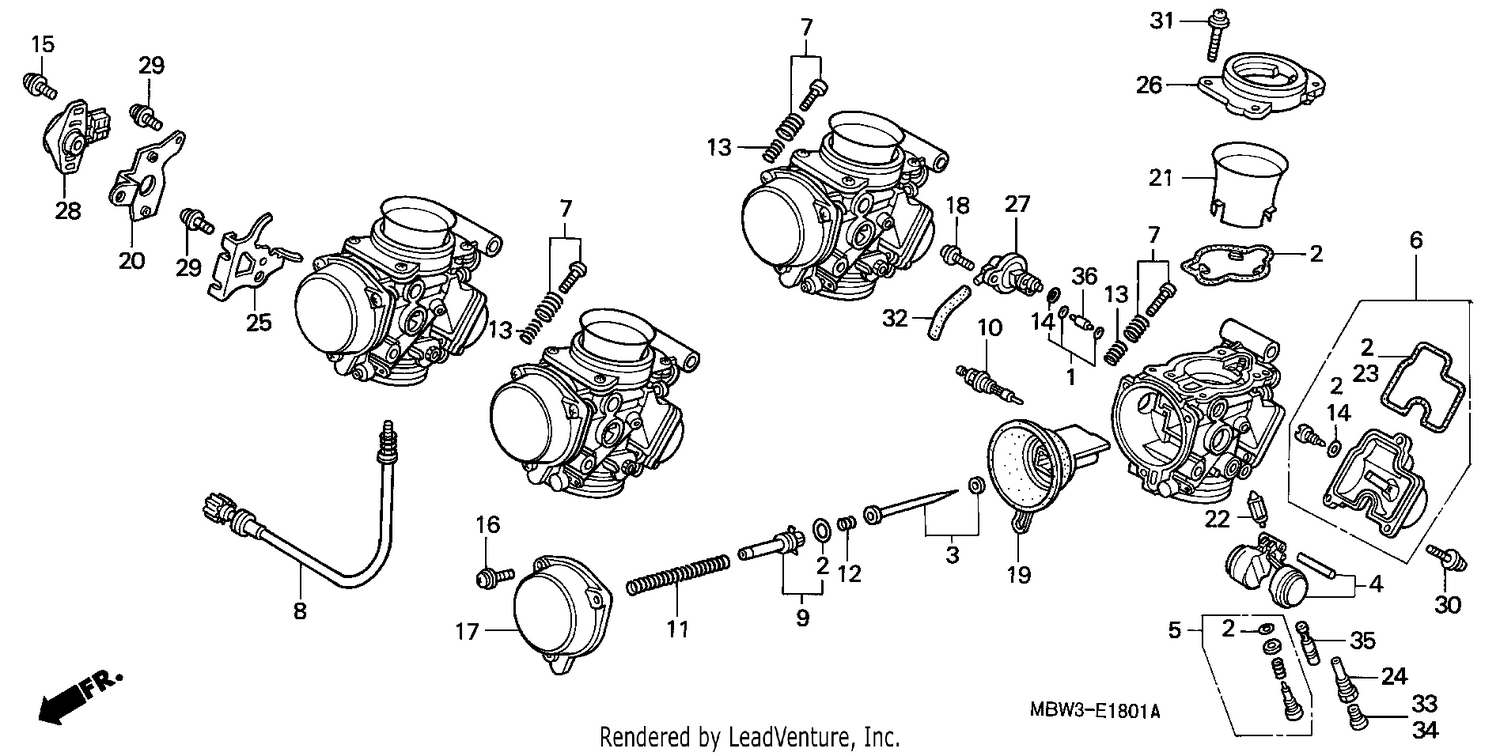

CARBURETOR (COMPONENT PARTS)

CARBURETOR (COMPONENT PARTS)

Parts (35)

RefPart NumberDescription
1 16010HM7670 GASKET SET Price: Call Us
2 16010MZ2E00 GASKET SET A Price: Call Us
3 16025MBW601 NEEDLE SET, JET Price: Call Us
4 16013MBZ610 FLOAT SET Price: Call Us
5 16016MY9690 SCREW SET Price: Call Us
6 16023MZ5920 CHAMBER SET, FLOAT Price: Call Us
7 16028MZ2E00 SCREW SET Price: Call Us
8 16029MBW601 SCREW SET, STOP Price: Call Us
9 16037MZ2E00 PLATE SET, VALVE Price: Call Us
10 16046MAL600 VALVE SET, STARTER Price: Call Us
11 16050MBW601 SPRING, COMPRESSION COIL Price: Call Us
12 16051MV4000 SPRING, COMPRESSION COIL Price: Call Us
13 16052ME9672 SPRING Price: Call Us
14 16075GHB640 O-RING, 1.3X4.3 Price: Call Us
15 16080MBB640 SCREW-WASHER, TORX Price: Call Us
16 16080MV4000 SCREW-WASHER Price: Call Us
17 16107MW0670 TOP Price: Call Us
18 16108MW0750 SCREW Price: Call Us
19 16111MBW601 PISTON COMP., VACUUM Price: Call Us
20 16129MBW601 PLATE, STAY Price: Call Us
21 16141MBW601 FUNNEL, AIR Price: Call Us
22 16155413751 VALVE COMP., FLOAT Price: Call Us
23 16163MZ5920 GASKET, FLOAT CHAMBER Price: Call Us
24 16165MBW601 HOLDER, NEEDLE JET Price: Call Us
25 16169MBW601 STAY, WIRE Price: Call Us
26 16188MW0671 PLATE, FUNNEL SETTING Price: Call Us
27 16510MBW601 VALVE ASSY., AIR CUT Price: Call Us
28 37890MBW601 SENSOR ASSY., THROTTLE Price: Call Us
29 938920501010 SCREW-WASHER, 5X10 Price: Call Us
30 938920501610 SCREW-WASHER, 5X16 Price: Call Us
31 938930401417 SCREW-WASHER, 4X14 Price: Call Us
32 950053506020 TUBE, 3.5X60 (95005-35001-20M) Price: Call Us
33 99101GHB1320 JET, MAIN, #132 Price: Call Us
34 99101GHB1350 JET, MAIN, #135 Price: Call Us
35 99103MT20400 JET, SLOW, #40 Price: Call Us
