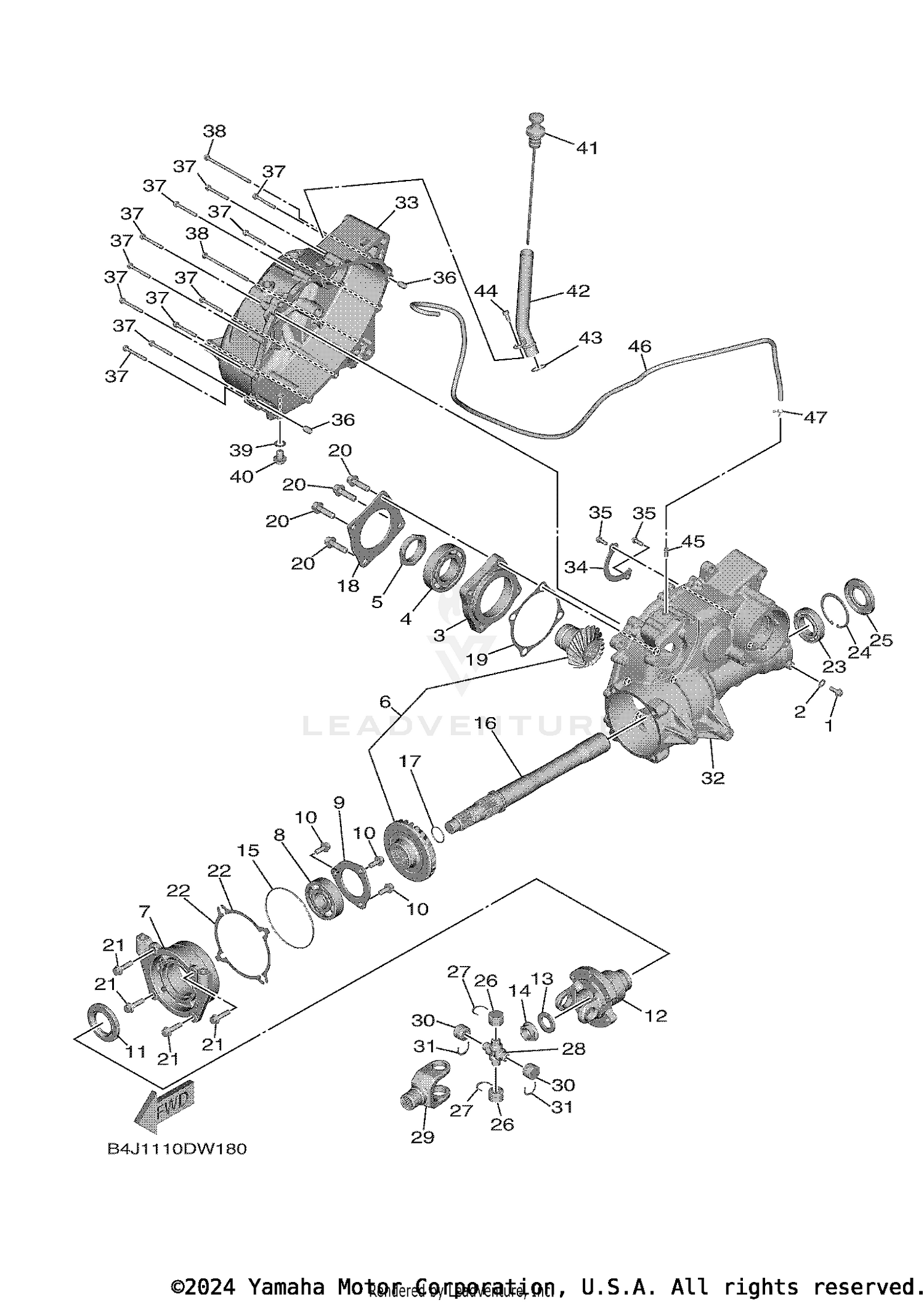

| Ref | Part Number | Description |
|---|
| 1 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 2 |
90430-06014-00 |
GASKET Price: $8.60 |
| 3 |
BG4-17521-00-00 |
HOUSING, BEARING Price: $85.99 |
| 4 |
93306-20904-00 |
BEARING Price: $93.99 |
| 5 |
90179-44001-00 |
NUT Price: $29.99 |
| 6 |
B4J-17530-00-00 |
PINION SET Price: $576.99 |
| 7 |
B4J-17551-00-00 |
HOUSING, BEARING Price: $120.99 |
| 8 |
93306-30646-00 |
BEARING Price: $82.99 |
| 9 |
B4J-17568-00-00 |
PLATE, BRG. 2 Price: $11.49 |
| 10 |
95812-08020-00 |
BOLT, FLANGE This part replaces 90105-08171-00. Price: $2.80 |
| 11 |
93102-40031-00 |
OIL SEAL Price: $18.49 |
| 12 |
B4J-17576-00-00 |
YOKE,JOINT 2 Price: $350.99 |
| 13 |
90201-22026-00 |
WASHER, PLATE Price: $8.49 |
| 14 |
90179-22025-00 |
NUT Price: $22.99 |
| 15 |
93211-05471-00 |
O-RING Price: $16.49 |
| 16 |
B4J-17553-00-00 |
SHAFT, MIDDLE DRIVEN Price: $267.99 |
| 17 |
93210-25755-00 |
O-RING Price: $6.49 |
| 18 |
BG4-15383-00-00 |
PLATE, BEARING COVER Price: $11.49 |
| 20 |
95812-10035-00 |
BOLT, FLANGE Price: $6.49 |
| 21 |
90105-08236-00 |
BOLT, FLANGE Price: $5.00 |
| 23 |
93306-00702-00 |
BEARING This part replaces 93306-00704-00. Price: $66.99 |
| 24 |
99009-62500-00 |
CIRCLIP Price: $9.49 |
| 25 |
93102-35042-00 |
OIL SEAL Price: $17.49 |
| 26 |
93399-99965-00 |
BEARING Price: $28.99 |
| 27 |
93440-23197-00 |
CIRCLIP Price: $3.95 |
| 28 |
1YW-46187-10-00 |
SPIDER Price: $83.99 |
| 29 |
BG4-46147-00-00 |
YOKE, JOINT 2 Price: $133.99 |
| 30 |
93399-99965-00 |
BEARING Price: $28.99 |
| 31 |
93440-23197-00 |
CIRCLIP Price: $3.95 |
| 32 |
BG4-17541-10-00 |
CASE, TRANSFER 1 Price: $370.99 |
| 33 |
BG4-17542-01-00 |
CASE, TRANSFER 2 Price: $284.99 |
| 34 |
B4J-17558-00-00 |
PLATE, BEARING Price: $6.49 |
| 35 |
95022-06016-00 |
BOLT, FLANGE This part replaces 90105-06187-00. Price: $3.90 |
| 36 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 37 |
95022-06045-00 |
BOLT, FLANGE Price: $4.65 |
| 38 |
95022-06100-00 |
BOLT, FLANGE Price: $3.50 |
| 39 |
90430-12213-00 |
GASKET Price: $6.49 |
| 40 |
90340-12006-00 |
PLUG, STRAIGHT SCREW Price: $4.55 |
| 41 |
BG4-15362-00-00 |
PLUG, OIL LEVEL Price: $26.99 |
| 42 |
BG4-15112-00-00 |
PIPE, OIL Price: $44.99 |
| 43 |
93210-21631-00 |
O-RING Price: $8.49 |
| 44 |
91317-06012-00 |
BOLT This part replaces 91312-06012-00. Price: $9.49 |
| 45 |
137-13115-01-00 |
CONNECTOR, SUCTION PIPE Price: $4.99 |
| 46 |
90445-080K8-00 |
HOSE (L1200) Price: $8.99 |
