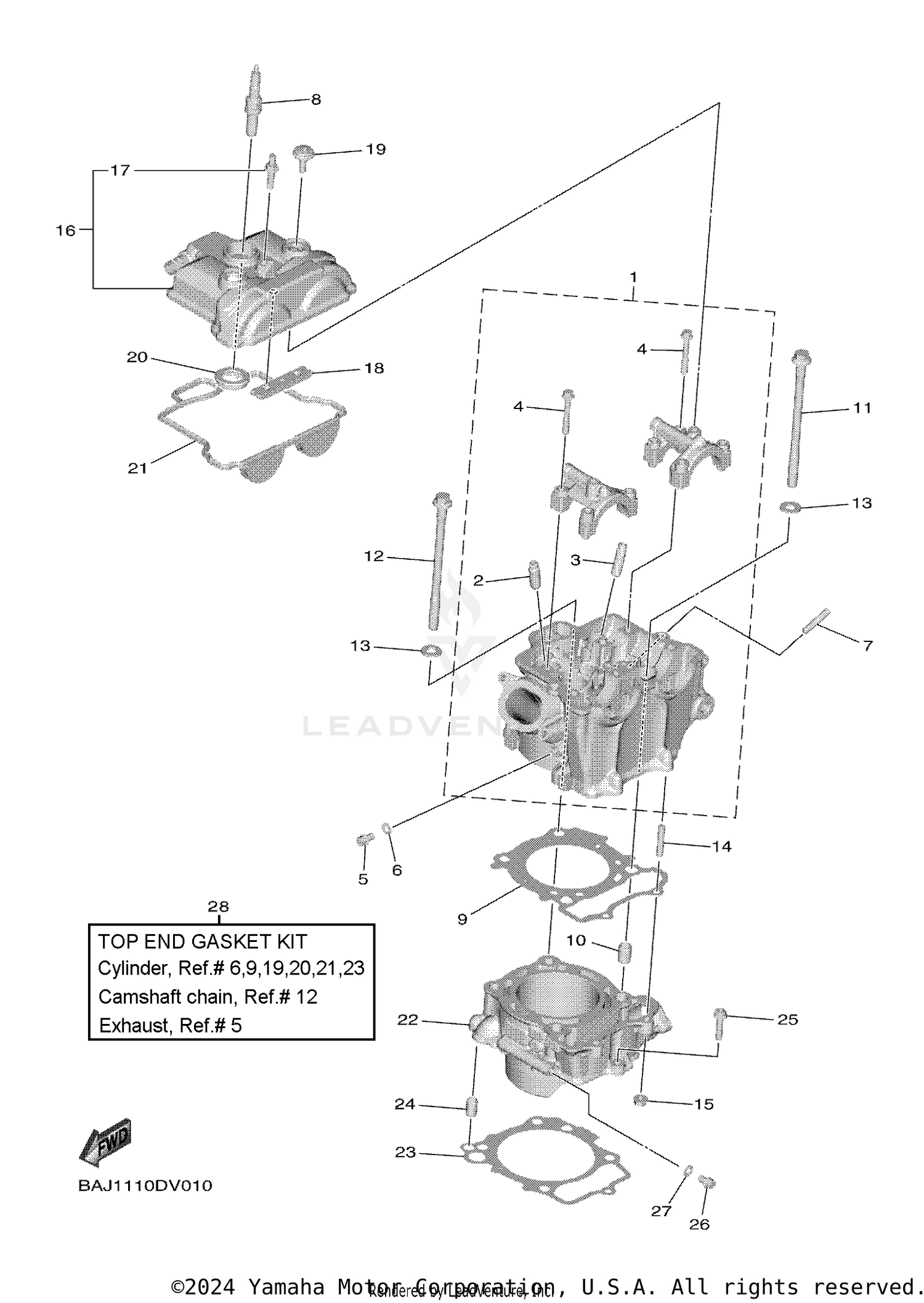

| Ref | Part Number | Description |
|---|
| 1 |
B7B-11101-09-00 |
CYLINDER HEAD ASSY Price: $1,073.99 |
| 2 |
5TA-11134-10-00 |
GUIDE, VALVE 2 Price: $59.99 |
| 3 |
3D7-11133-10-00 |
GUIDE, VALVE 1 Price: $69.99 |
| 4 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 5 |
95E32-06010-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 7 |
90116-06037-00 |
BOLT, STUD Price: $4.25 |
| 8 |
94701-00444-00 |
PLUG, SPARK (NGK LMAR8E-J) Price: $49.99 |
| 10 |
93612-16254-00 |
PIN, DOWEL Price: $6.49 |
| 11 |
90105-09004-00 |
BOLT, FLANGE Price: $15.49 |
| 12 |
90105-09002-00 |
BOLT, FLANGE Price: $17.49 |
| 13 |
90201-096J9-00 |
WASHER, PLATE Price: $3.65 |
| 14 |
90116-06037-00 |
BOLT, STUD Price: $4.25 |
| 15 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 17 |
90116-06049-00 |
BOLT, STUD This part replaces 90116-06048-00. Price: $5.49 |
| 18 |
5BE-12241-01-00 |
GUIDE, STOPPER 2 This part replaces 5BE-12241-00-00. Price: $32.99 |
| 22 |
B7B-11311-00-00 |
CYLINDER 1 Price: $540.99 |
| 24 |
99530-10116-00 |
PIN, DOWEL Price: $4.40 |
| 25 |
90110-06380-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 26 |
95E32-06010-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 27 |
90430-06014-00 |
GASKET Price: $8.60 |
