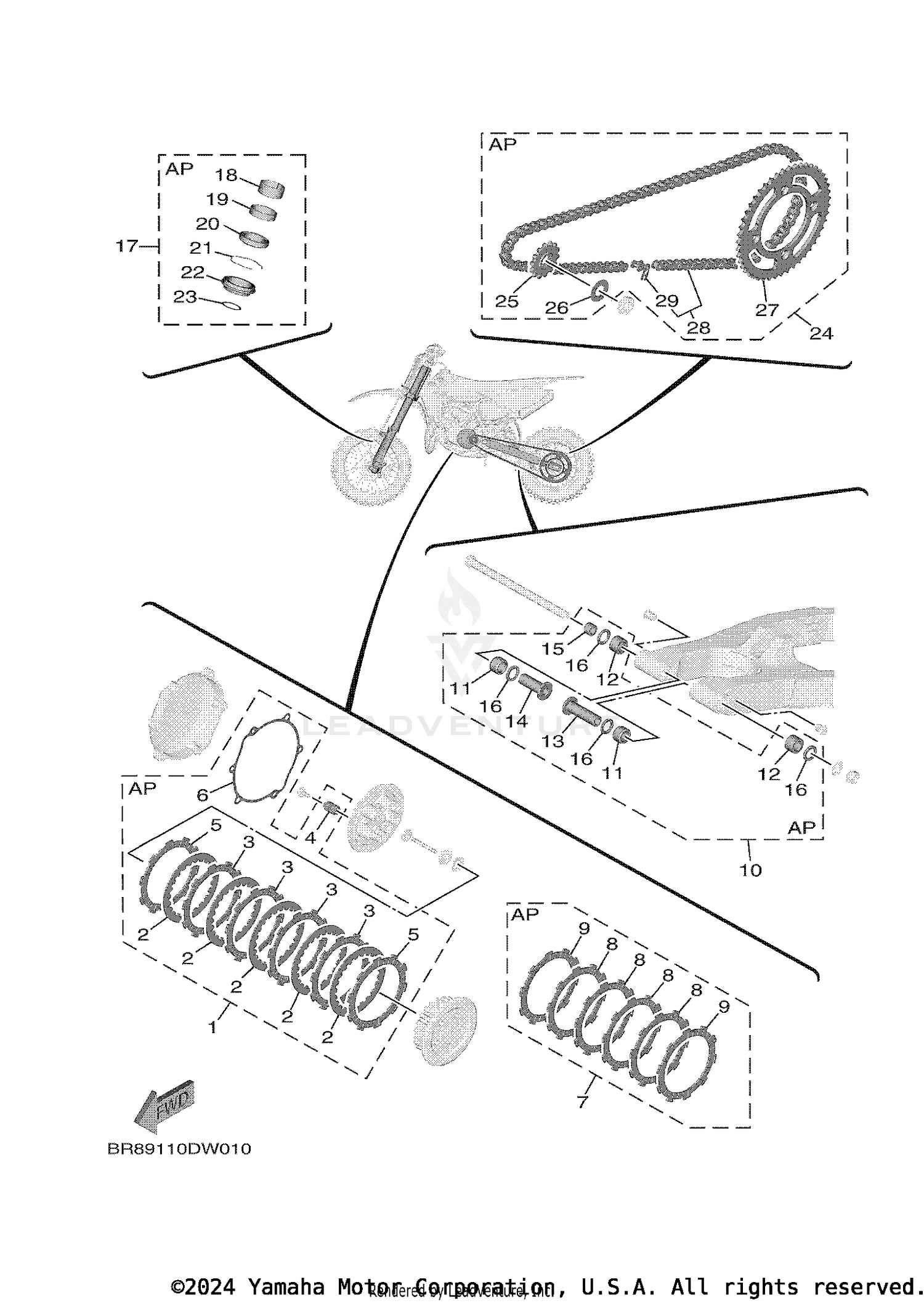

| Ref | Part Number | Description |
|---|
| 2 |
131-16324-10-00 |
PLATE, CLUTCH 1 This part replaces 131-16324-00-00. Price: $22.99 |
| 3 |
4ES-16321-00-00 |
PLATE, FRICTION Price: $19.99 |
| 4 |
90501-204A0-00 |
SPRING, COMPRESSION Price: $9.49 |
| 5 |
3XP-16321-00-00 |
PLATE, FRICTION This part replaces 21V-16321-00-00. Price: $21.99 |
| 6 |
5PA-15463-00-00 |
GASKET, COVER PINION 2 Price: $15.49 |
| 8 |
4ES-16321-00-00 |
PLATE, FRICTION Price: $19.99 |
| 9 |
3XP-16321-00-00 |
PLATE, FRICTION This part replaces 21V-16321-00-00. Price: $21.99 |
| 11 |
90385-17042-00 |
BUSH Price: $23.99 |
| 12 |
93317-21746-00 |
BEARING Price: $37.99 |
| 13 |
90387-127J8-00 |
COLLAR Price: $38.99 |
| 14 |
90387-127J7-00 |
COLLAR Price: $33.99 |
| 15 |
90387-1200U-00 |
COLLAR Price: $19.49 |
| 16 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 18 |
5PA-23171-00-00 |
PISTON, FRONT FORK Price: $33.99 |
| 19 |
5PA-23125-00-00 |
METAL, SLIDE 1 Price: $21.99 |
| 20 |
4ES-23145-00-00 |
OIL SEAL Price: $24.99 |
| 21 |
4A1-23156-00-00 |
CLIP, OIL SEAL Price: $5.99 |
| 22 |
4ES-23144-00-00 |
SEAL, DUST Price: $26.99 |
| 23 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 25 |
9381A-14243-00 |
SPROCKET, DRIVE (14T) Price: $47.99 |
| 26 |
90215-20261-00 |
WASHER, LOCK Price: $10.49 |
| 27 |
BR8-25447-00-00 |
SPROCKET, DRIVEN (47T) Price: $77.99 |
| 28 |
9Y582-48113-00 |
CHAIN (DID420D I G&B 114LL) Price: $61.99 |
