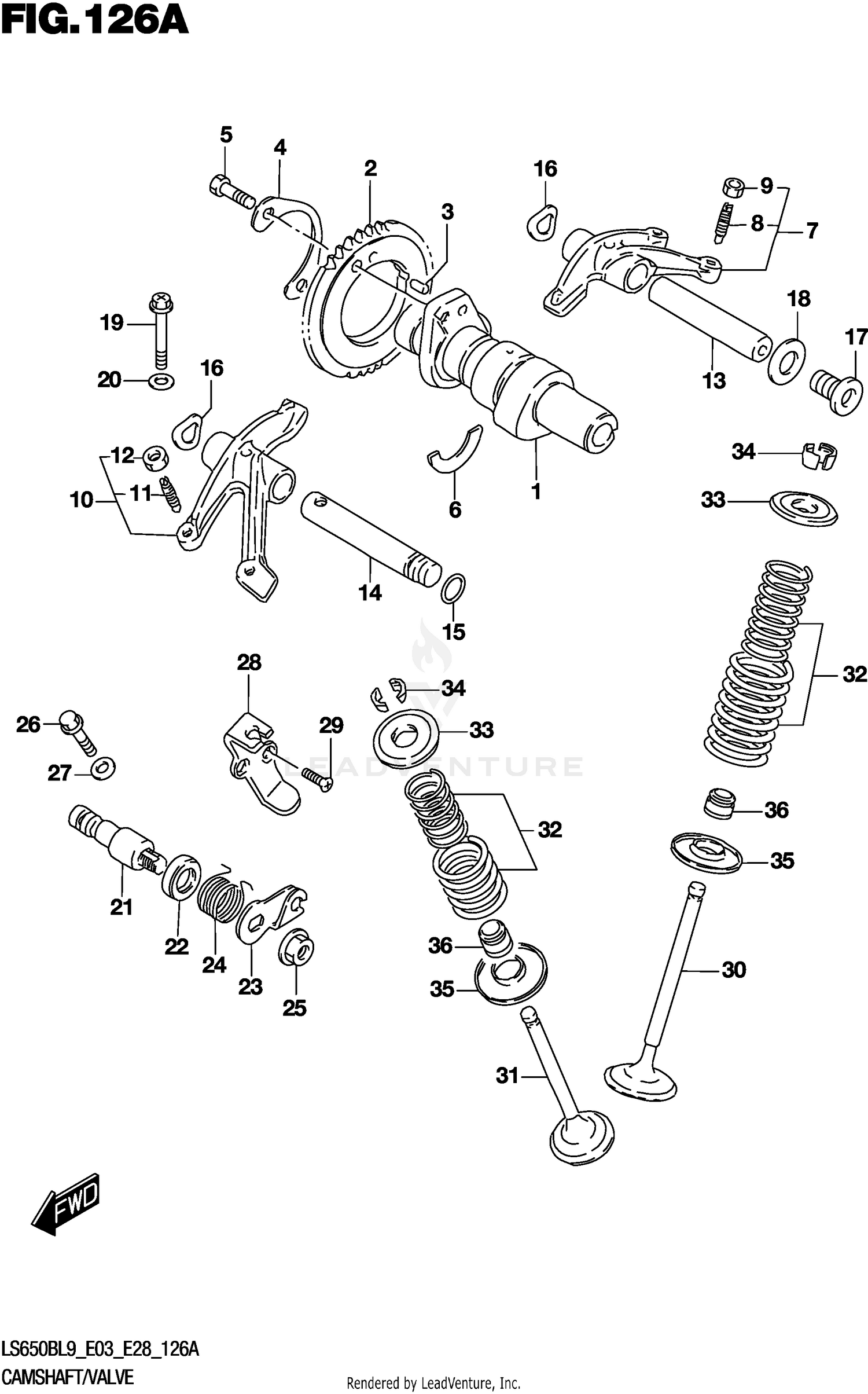

CAMSHAFT/VALVE
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12711-24B11 | CAM SHAFT Price: $278.94 |
| 2 | 12741-24B00 | SPROCKET Price: $59.13 |
| 3 | 09261-05009 | PIN (5X12.9) Price: $1.89 |
| 4 | 12747-44001 | WASHER,SPROCKET Price: $3.04 |
| 5 | 09111-06053 | BOLT (6X16) Price: $5.01 |
| 6 | 09390-25003 | C RING Price: $2.89 |
| 7 | 12840-24B10 | ARM Price: $102.02 |
| 10 | 12850-24B10 | ARM Price: $102.02 |
| 14 | 12871-14A00 | SHAFT Price: $31.60 |
| 16 | 09164-12018 | WASHER (12.7X18.1X0.2) Price: $1.58 |
| 17 | 09248-14011 | PLUG (14X12) Price: $3.68 |
| 18 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 19 | 02162-0630B | SCREW Price: $2.02 |
| 20 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 21 | 12941-24B01 | SHAFT Price: $26.80 |
| 22 | 09282-10012 | SEAL,OIL (10X20X6) Price: $9.72 |
| 23 | 12942-24B00 | LEVER Price: $3.69 |
| 25 | 08316-1008B | NUT Price: $3.21 |
| 26 | 09103-06090 | BOLT (6X16) Price: $2.35 |
| 27 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 28 | 12944-24B00 | HOLDER Price: $11.70 |
| 29 | 02122-0510A | SCREW Price: $1.48 |
| 30 | 12911-24B01 | VALVE Price: $54.11 |
| 31 | 12912-24B01 | VALVE Price: $109.47 |
| 32 | 12920-37402 | SPRING SET Price: $19.46 |
| 33 | 12931-45001 | RETAINER Price: $8.78 |
| 34 | 12932-82000 | COTTER Price: $3.77 |
| 35 | 12933-37401 | SEAT,VALVE SPRI This part replaces 12933-37400. Price: $4.58 |
