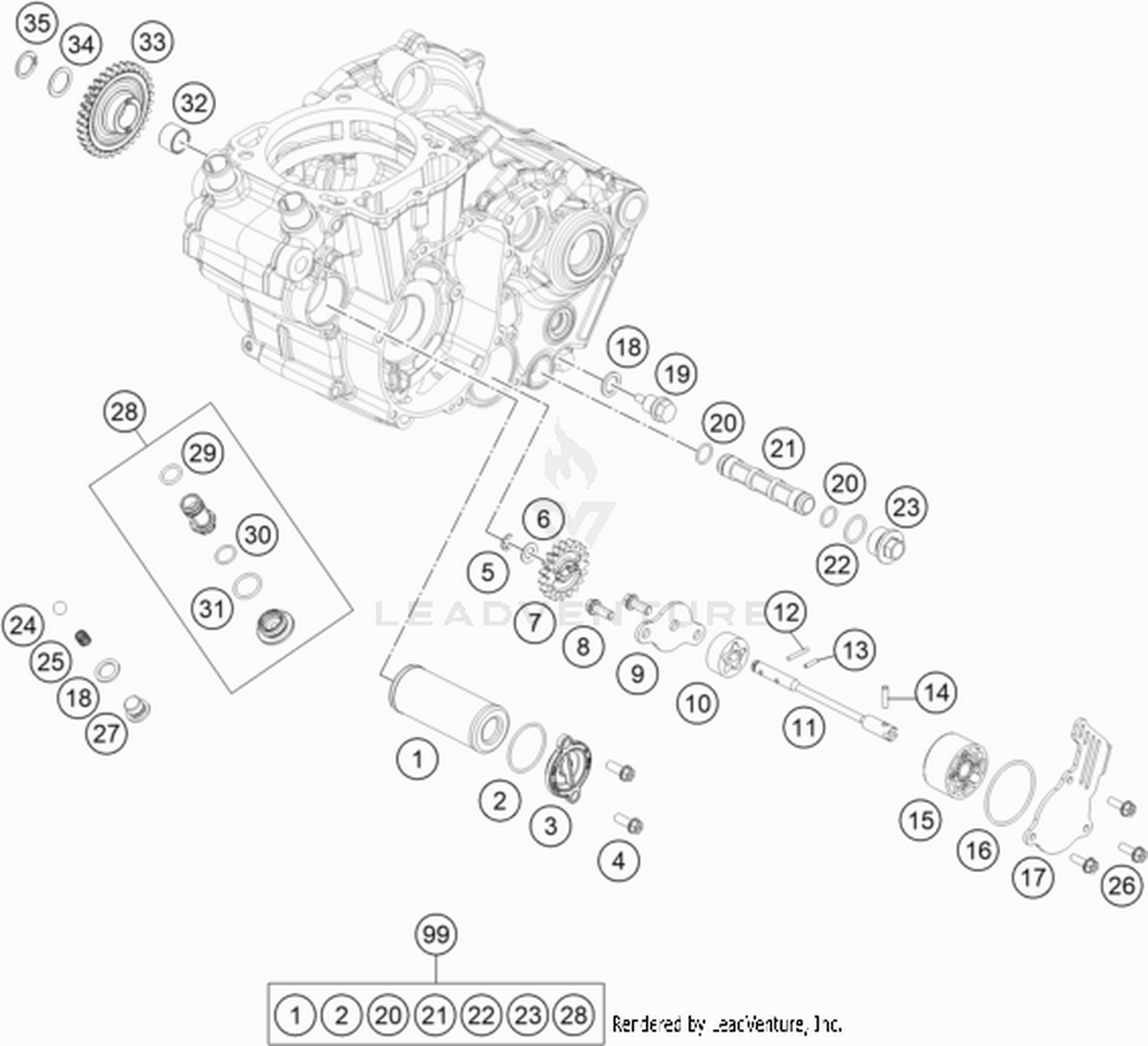

38 LUBRICATING SYSTEM

38 LUBRICATING SYSTEM

Parts (33)

RefPart NumberDescription
1 77338005100 Oil Filter 07 Price: Call Us
2 07703305178 O-RING 33,05X1,78 Price: Call Us
3 77338041200 OIL FILTER COVER 08 Price: Call Us
4 0025060166 HH collar screw M6x16 TX30 Price: Call Us
5 0799060000 TAB WASHER DIN6799-RS 6,0 Price: Call Us
6 58038007755 STOP DISK 8,1 X 15 X 0,5 Price: Call Us
7 79538001018 Oil pump gear wheel, 18 teeth Price: Call Us
8 0025060166S HH collar screw M6x16 TX30 SL Price: Call Us
9 79438003000 OIL PUMP COVER Price: Call Us
10 59038011112 OILPUMP ROTOR-SET 12MM CPL. Price: Call Us
11 79438002100 Oil pump shaft suction pump-fo Price: Call Us
12 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 Price: Call Us
13 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 Price: Call Us
15 61238011100 ROTOR SET 22MM Price: Call Us
16 0770440020 O-RING 44,00X2,00 VITON Price: Call Us
17 79438004100 OIL PUMP COVER Price: Call Us
18 58038022000 CU-seal ring DIN7603-12X18X1.5 Price: Call Us
20 07701250151 O-RING 12,5X1,5 VITON V75 Price: Call Us
21 59038016200 Oil screen This part replaces 59038016100. Price: Call Us
22 0770020170 O-RING 17,17X1,78 GLO Price: Call Us
23 59038017100 PLUG M20X1,5 WS=13 Price: Call Us
24 0401090003 BALL DIN5401-9 Price: Call Us
25 79438026000 PRESSURE SPRING Price: Call Us
26 0984050143S CYL. SCREW DIN6912 M5X14 8.8 Price: Call Us
27 78036024000 PLUG SCREW SAS M12X1,5 Price: Call Us
28 78138015001 OIL SCREEN CPL. Price: Call Us
29 0770012021 O-RING 12X2 VITON GREEN Price: Call Us
30 0770125015 O-RING 12,5X1,5 NBR Price: Call Us
31 0770170200 O-RING 17,00X2,00 Price: Call Us
32 79438001010 NEEDLE BEARING INNER RING Price: Call Us
33 79438001033 IDLER WHEEL 33T Price: Call Us
34 0988162205 THRUST WASH. DIN0988-16X22X0,5 Price: Call Us
35 0471150010 CIRCLIP DIN0471-15X1 Price: Call Us
