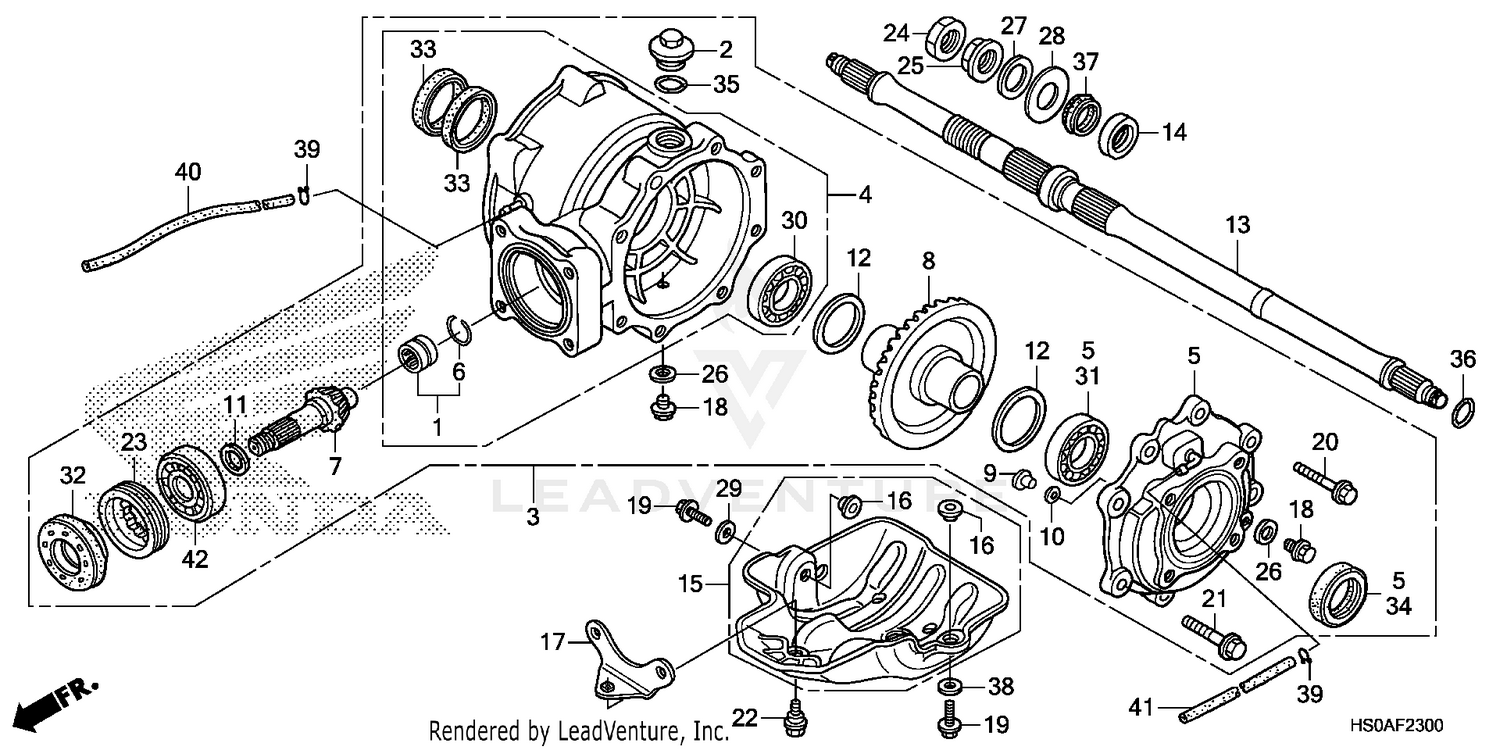

| Ref | Part Number | Description |
|---|
| 1 |
06910-HS0-AF0 |
BEARING SET, NEEDLE Price: $14.31 |
| 2 |
12361-300-000 |
CAP, VALVE ADJ. This part replaces 12361-035-000. Price: $12.40 |
| 3 |
41300-HS0-AF0 |
GEAR ASSY., RR. FINAL Price: $341.67 |
| 4 |
41311-HS0-AF0 |
CASE SET, FINAL Price: $130.24 |
| 5 |
41320-HM8-020 |
COVER SET, GEAR CASE Price: $110.24 |
| 6 |
41405-HA7-670 |
RING, STOPPER Price: $3.73 |
| 7 |
41421-HN5-670 |
GEAR, PINION (13T) Price: $132.22 |
| 8 |
41431-HM8-000 |
GEAR, RING (48T) Price: $288.84 |
| 9 |
41436-MB0-310 |
PIN, RING GEAR STOPPER Price: $36.45 |
| 10 |
41437-MB0-310 |
SHIM A, STOPPER PIN (0.10) Price: $6.45 |
| 10 |
41438-MB0-310 |
SHIM B, STOPPER PIN (0.15) Price: $6.45 |
| 11 |
41447-HM8-000 |
SHIM A, PINION GEAR (1.64) Price: $10.04 |
| 11 |
41448-HM8-000 |
SHIM B, PINION GEAR (1.70) Price: $10.04 |
| 11 |
41449-HM8-000 |
SHIM C, PINION GEAR (1.76) Price: $10.04 |
| 11 |
41451-HM8-000 |
SHIM D, PINION GEAR (1.82) Price: $10.04 |
| 11 |
41452-HM8-000 |
SHIM E, PINION GEAR (1.88) Price: $10.04 |
| 11 |
41453-HM8-000 |
SHIM F, PINION GEAR (1.94) Price: $10.04 |
| 11 |
41454-HM8-000 |
SHIM G, PINION GEAR (2.00) Price: $10.04 |
| 11 |
41455-HM8-000 |
SHIM H, PINION GEAR (2.06) Price: $10.04 |
| 11 |
41456-HM8-000 |
SHIM I, PINION GEAR (2.12) Price: $10.04 |
| 11 |
41457-HM8-000 |
SHIM J, PINION GEAR (2.18) Price: $10.04 |
| 12 |
41540-HC4-000 |
SPACER A, RING GEAR (1.26) Price: $14.53 |
| 12 |
41541-HC4-000 |
SPACER B, RING GEAR (1.32) Price: $14.53 |
| 12 |
41542-HC4-000 |
SPACER C, RING GEAR (1.38) Price: $14.53 |
| 12 |
41543-HC4-000 |
SPACER D, RING GEAR (1.44) Price: $14.53 |
| 12 |
41544-HC4-000 |
SPACER E, RING GEAR (1.50) Price: $14.53 |
| 12 |
41545-HC4-000 |
SPACER F, RING GEAR (1.56) Price: $14.53 |
| 12 |
41546-HC4-000 |
SPACER G, RING GEAR (1.62) Price: $14.53 |
| 12 |
41547-HC4-000 |
SPACER H, RING GEAR (1.68) Price: $14.53 |
| 12 |
41548-HC4-000 |
SPACER I, RING GEAR (1.74) Price: $14.53 |
| 12 |
41549-HC4-000 |
SPACER J, RING GEAR (1.80) Price: $14.53 |
| 12 |
41550-HC4-000 |
SPACER K, RING GEAR (1.86) Price: $14.53 |
| 13 |
42311-HM8-000 |
SHAFT, RR. AXLE Price: $294.73 |
| 14 |
42625-HM8-000 |
COLLAR, RR. AXLE Price: $13.45 |
| 15 |
50355-HM8-B40 |
PLATE, SKID Price: $34.76 |
| 16 |
50358-HM8-B40 |
COLLAR, SKID PLATE Price: $5.76 |
| 17 |
52190-HN6-000 |
STAY, SKID PLATE Price: $4.40 |
| 18 |
90109-371-000 |
BOLT, SEALING (8MM) Price: $3.09 |
| 19 |
90131-GW0-750 |
BOLT, FLANGE (8X20) Price: $6.42 |
| 20 |
90133-HP5-600 |
BOLT, FLANGE (8X27) Price: $3.05 |
| 21 |
90134-HP5-600 |
BOLT, FLANGE (10X35) Price: $4.40 |
| 22 |
90186-HM8-B40 |
BOLT, FLANGE (8X18) Price: $1.75 |
| 23 |
90242-MB0-000 |
NUT, LOCK (64MM) Price: $39.40 |
| 24 |
90307-HM5-930 |
NUT, RR. AXLE Price: $4.15 |
| 25 |
90308-HM5-930 |
NUT A, RR. AXLE Price: $4.67 |
| 26 |
90471-580-000 |
WASHER (8MM) Price: $3.40 |
| 27 |
90481-HC4-000 |
WASHER, TAPER Price: $9.69 |
| 28 |
90501-HM8-000 |
WASHER (32X60X1.5) Price: $6.84 |
| 29 |
90504-MA6-000 |
WASHER (8.5X26) Price: $1.98 |
| 30 |
91051-HC4-003 |
BEARING, RADIAL BALL (43X68X13) Price: $57.80 |
| 31 |
91051-HC4-003 |
BEARING, RADIAL BALL (43X68X13) Price: $57.80 |
| 32 |
91251-HM8-003 |
OIL SEAL (34X70X11) Price: $18.89 |
| 33 |
91271-HC4-004 |
OIL SEAL (42X51X7) Price: $12.91 |
| 34 |
91271-HC4-004 |
OIL SEAL (42X51X7) Price: $12.91 |
| 35 |
91302-001-020 |
O-RING (30.8MM) (Honda Code 0001065) Price: $4.70 |
| 36 |
91301-401-000 |
O-RING (29.5X3) Price: $4.42 |
| 37 |
91351-HB3-004 |
RING, SEAL Price: $4.76 |
| 38 |
94102-08800 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 39 |
95002-35000 |
CLIP, TUBE (C6.5) Price: $0.78 |
| 40 |
95005-35001-30M |
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) Price: $10.45 |
| 41 |
95005-35001-30M |
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) Price: $10.45 |
