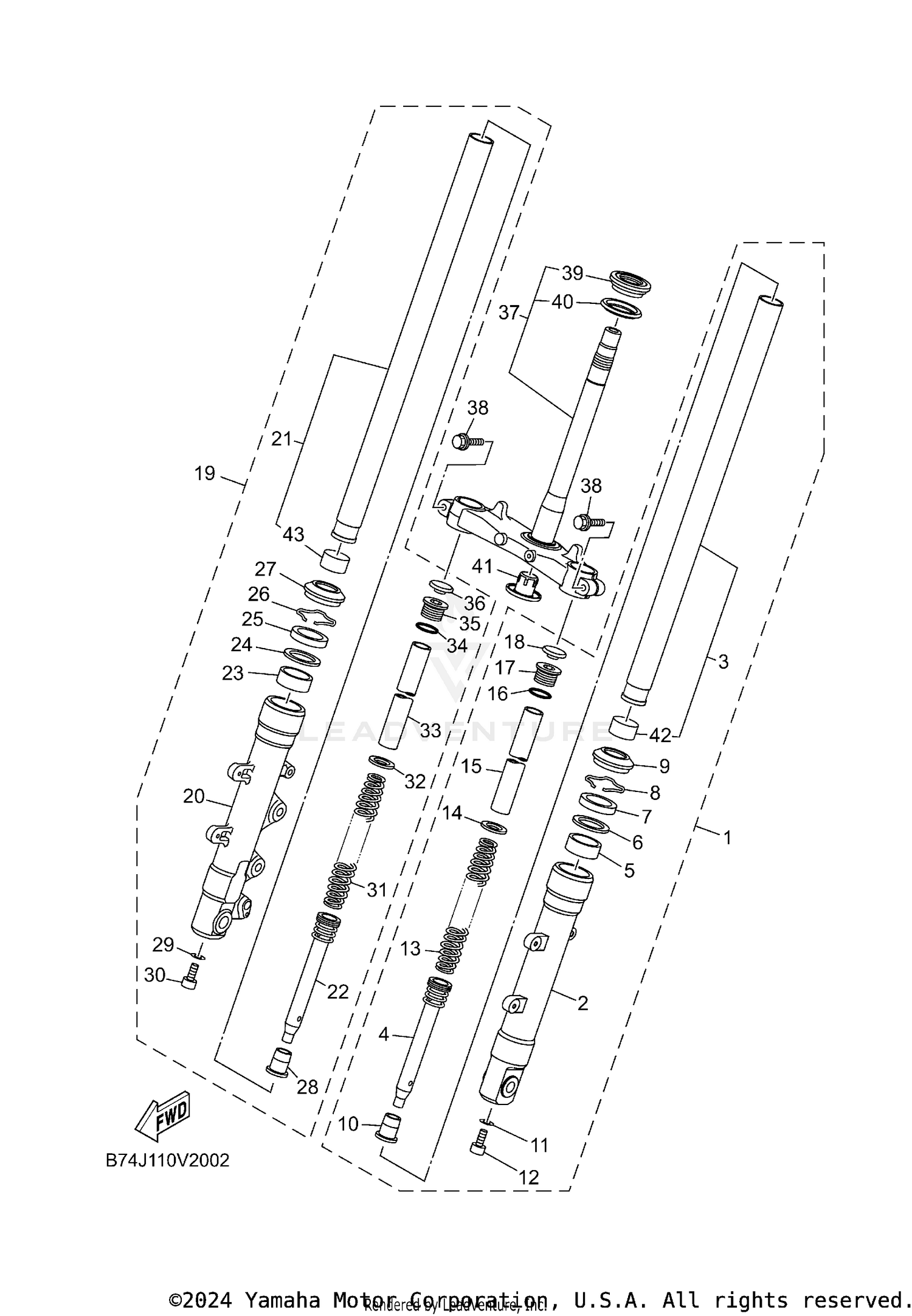

| Ref | Part Number | Description |
|---|
| 1 |
B74-F3102-00-00 |
FRONT FORK ASSY (L.H) Price: $265.99 |
| 2 |
B74-F3126-00-00 |
TUBE, OUTER (L.H) Price: $76.99 |
| 3 |
B74-F3110-00-00 |
INNER TUBE COMP.1 Price: $124.99 |
| 4 |
B74-F3170-00-00 |
CYLINDER COMP., FRONT FORK Price: $28.99 |
| 5 |
4HC-23125-20-00 |
METAL, SLIDE 1 Price: $16.49 |
| 6 |
22W-23146-L0-00 |
WASHER, OIL SEAL Price: $9.99 |
| 7 |
5BP-F3145-00-00 |
OIL SEAL Price: $18.49 |
| 8 |
22W-F3156-L0-00 |
RING, SNAP Price: $8.99 |
| 9 |
5BP-F3144-00-00 |
SEAL, DUST Price: $8.49 |
| 10 |
2CM-F3166-00-00 |
SPACER, OIL LOCK Price: $9.49 |
| 11 |
2BU-F3158-00-00 |
GASKET Price: $3.65 |
| 12 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 31B-F3181-00-00. Price: $9.49 |
| 13 |
B74-F3141-00-00 |
SPRING, FRONT FORK Price: $18.49 |
| 14 |
2JK-F3149-01-00 |
WASHER, SPRING UPPER Price: $0.85 |
| 15 |
B74-F3118-00-00 |
SPACER Price: $7.49 |
| 16 |
2JK-F3114-00-00 |
GASKET Price: $4.55 |
| 17 |
5BP-F3111-10-00 |
BOLT, CAP Price: $12.49 |
| 18 |
1X0-23168-00-00 |
CAP, FRONT FORK This part replaces 2N4-23168-00-00. Price: $5.49 |
| 19 |
B74-F3103-00-00 |
FRONT FORK ASSY (R.H) Price: $227.99 |
| 20 |
B74-F3136-00-00 |
TUBE, OUTER 2 Price: $83.99 |
| 21 |
B74-F3110-00-00 |
INNER TUBE COMP.1 Price: $124.99 |
| 22 |
B74-F3170-00-00 |
CYLINDER COMP., FRONT FORK Price: $28.99 |
| 23 |
4HC-23125-20-00 |
METAL, SLIDE 1 Price: $16.49 |
| 24 |
22W-23146-L0-00 |
WASHER, OIL SEAL Price: $9.99 |
| 25 |
5BP-F3145-00-00 |
OIL SEAL Price: $18.49 |
| 26 |
22W-F3156-L0-00 |
RING, SNAP Price: $8.99 |
| 27 |
5BP-F3144-00-00 |
SEAL, DUST Price: $8.49 |
| 28 |
2CM-F3166-00-00 |
SPACER, OIL LOCK Price: $9.49 |
| 29 |
2BU-F3158-00-00 |
GASKET Price: $3.65 |
| 30 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 31B-F3181-00-00. Price: $9.49 |
| 31 |
B74-F3141-00-00 |
SPRING, FRONT FORK Price: $18.49 |
| 32 |
2JK-F3149-01-00 |
WASHER, SPRING UPPER Price: $0.85 |
| 33 |
B74-F3118-00-00 |
SPACER Price: $7.49 |
| 34 |
2JK-F3114-00-00 |
GASKET Price: $4.55 |
| 35 |
5BP-F3111-10-00 |
BOLT, CAP Price: $12.49 |
| 36 |
1X0-23168-00-00 |
CAP, FRONT FORK This part replaces 2N4-23168-00-00. Price: $5.49 |
| 37 |
B74-F3340-00-00 |
UNDER BRACKET COMP. Price: $179.99 |
| 38 |
2JK-F3346-00-00 |
BOLT 1 Price: $2.20 |
| 39 |
93399-99932-00 |
BEARING Price: $69.99 |
| 40 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 41 |
B65-F3123-00-00 |
COVER, UNDER 1 Price: $1.10 |
| 42 |
1B7-23171-00-00 |
PISTON, FRONT FORK Price: $21.99 |
