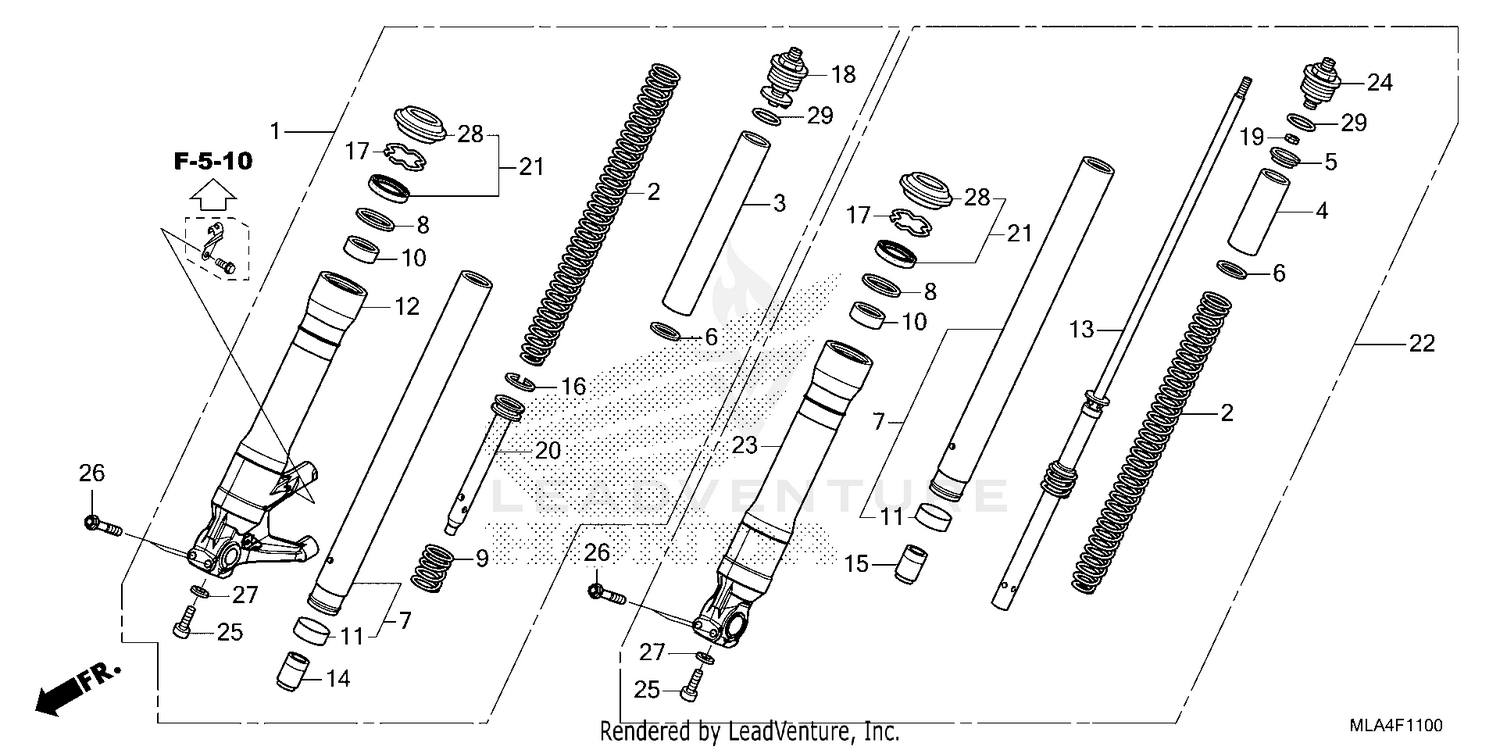

| Ref | Part Number | Description |
|---|
| 1 |
51400-MLA-A01 |
FORK ASSY., R. FR. (SHOWA) Price: $783.15 |
| 2 |
51401-MLA-A01 |
SPRING, FR. FORK Price: $98.36 |
| 3 |
51402-ML7-921 |
COLLAR, SPRING (R. SIDE) Price: $30.15 |
| 4 |
51402-MS2-003 |
COLLAR, SPRING (L. SIDE) Price: $20.35 |
| 5 |
51404-MR7-003 |
SEAT, SPRING Price: $12.89 |
| 6 |
51405-KA4-711 |
SEAT, SPRING Price: $7.82 |
| 7 |
51410-MLA-A01 |
PIPE, FR. FORK Price: $380.18 |
| 8 |
51412-KA4-711 |
RING, BACK-UP Price: $11.69 |
| 9 |
51412-MLA-A01 |
SPRING, REBOUND Price: $7.42 |
| 10 |
51414-MFN-D01 |
BUSH, GUIDE Price: $8.89 |
| 11 |
51415-MFN-D01 |
BUSH, SLIDER Price: $37.08 |
| 12 |
51420-MLA-A01 |
CASE, R. (LOWER) Price: $487.75 |
| 13 |
51430-MLA-A01 |
DAMPER, FR. Price: $336.13 |
| 14 |
51432-KV3-701 |
PIECE, OIL LOCK (SHOWA) Price: $20.51 |
| 15 |
51432-MS2-003 |
PIECE, OIL LOCK (SHOWA) Price: $36.44 |
| 16 |
51437-MJS-J71 |
RING, PISTON Price: $6.38 |
| 17 |
51447-KA4-711 |
RING, OIL SEAL STOPPER (SHOWA) Price: $5.67 |
| 18 |
51450-MLA-A01 |
BOLT, FR. FORK Price: $65.45 |
| 19 |
51451-MAJ-G41 |
NUT, HEX. (10MM) Price: $3.31 |
| 20 |
51470-MLA-A01 |
PIPE, SEAT Price: $38.27 |
| 21 |
51490-MFL-003 |
SEAL SET, FR. FORK Price: $24.05 |
| 22 |
51500-MLA-A01 |
FORK ASSY., L. FR. (SHOWA) Price: $986.13 |
| 23 |
51520-MLA-A01 |
CASE, L. (LOWER) Price: $509.73 |
| 24 |
51550-MLA-A01 |
BOLT, FR. FORK Price: $59.87 |
| 25 |
90116-383-721 |
BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA) Price: $6.44 |
| 26 |
90134-MEL-000 |
BOLT (8X45) Price: $3.53 |
| 27 |
90544-283-000 |
WASHER, SPECIAL (8MM) (SHOWA) Price: $3.27 |
| 28 |
91254-MEJ-013 |
DUST SEAL Price: $15.65 |
