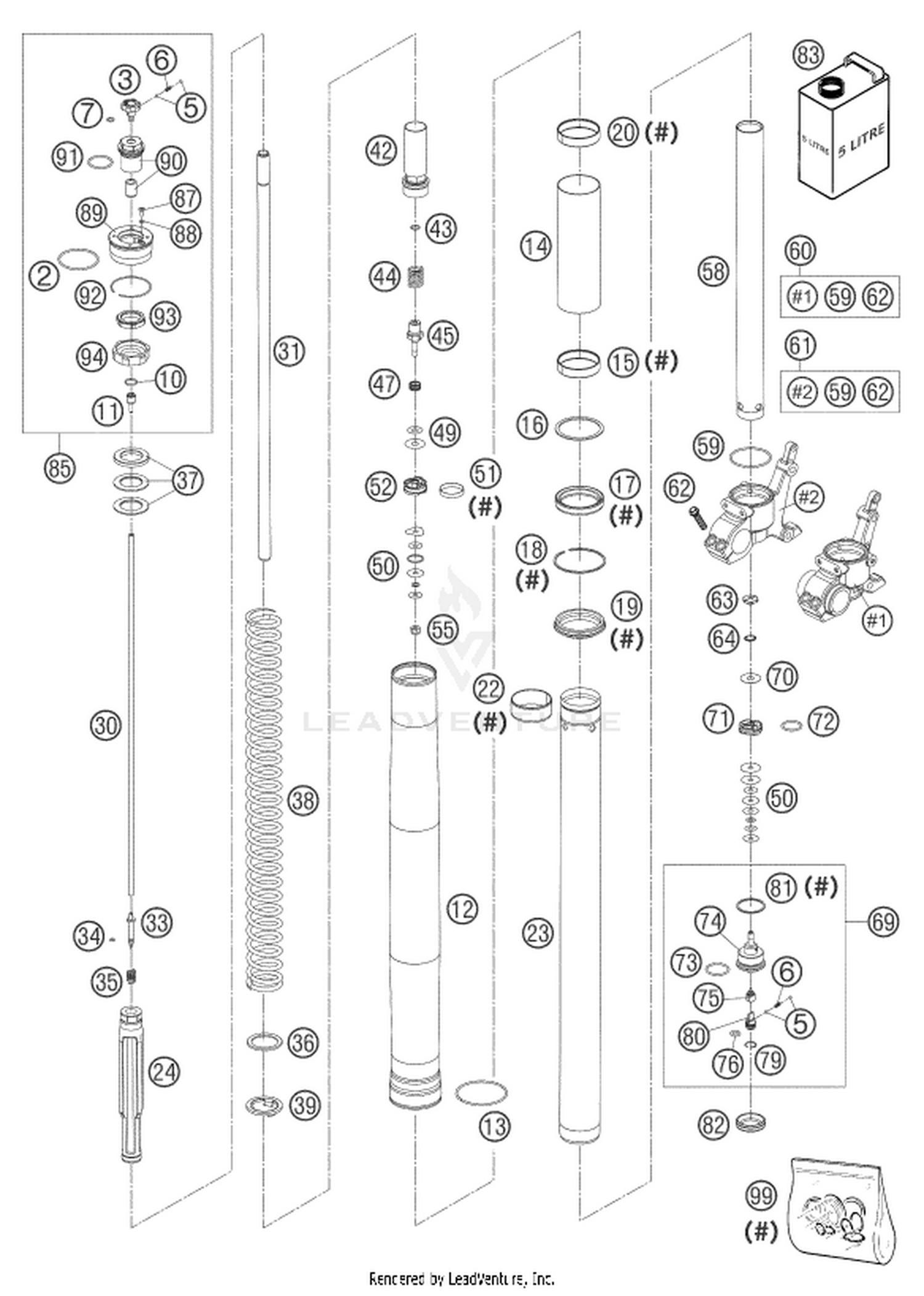

| Ref | Part Number | Description |
|---|
| 2 |
46810340 |
O-ring 45x2 NBR70 siliconized Price: Call Us |
| 3 |
48600018 |
Adjuster rebound Price: Call Us |
| 5 |
40540603 |
Steel ball d3 Price: Call Us |
| 6 |
48600028 |
Spring (1,7) l7,9 Price: Call Us |
| 7 |
48600044 |
O-ring 6x1,5 NBR70 Price: Call Us |
| 10 |
48600043 |
O-ring 12x1,5 NBR70 Price: Call Us |
| 11 |
48600019 |
Tube tap d4x25 Price: Call Us |
| 12 |
48600336 |
OUTER TUBE L=610MM D=54/60 Price: Call Us |
| 13 |
48600016 |
Round-wire snap ring 48x2 Price: Call Us |
| 14 |
48600245 |
SPACER 50,95X0,85X161,5 Price: Call Us |
| 15 |
48601009 |
Guide bushing 48x52x12 This part replaces 48600205. Price: Call Us |
| 16 |
48600013 |
Supportwasher 50x57,6x1,5 Price: Call Us |
| 17 |
S604800001000C1 |
Shaft seal SKF 48x58x11,4 black This part replaces 48600347. Price: Call Us |
| 18 |
48600070 |
Snap ring SB58x1,5 acc drawing Price: Call Us |
| 19 |
S604800000000C1 |
Dirtscarper SKF 48mm black This part replaces 48600186. Price: Call Us |
| 20 |
48600236 |
Guide bushing 48x51x12 Price: Call Us |
| 22 |
48601008 |
Guide bushing 47x49x20 This part replaces 48600204. Price: Call Us |
| 23 |
48600240 |
INNER TUBE D=48 L=595 2003 Price: Call Us |
| 30 |
48600225 |
Adjustment tube 6x482 Price: Call Us |
| 31 |
48600411 |
Piston rod 14x516 This part replaces 48600253. Price: Call Us |
| 33 |
48600189 |
Needle 6x42,6 rebound Price: Call Us |
| 34 |
48600046 |
O-ring 3x1,5 NBR70 Price: Call Us |
| 35 |
48600033 |
Spring (7,2) 4-23 needle Price: Call Us |
| 36 |
48600113 |
Washer 32x42x2,5 plastic Price: Call Us |
| 37 |
48600036 |
Preload bush 42x26,5x2,5 Price: Call Us |
| 37 |
48600037 |
Preload bush 26,5x42x5 Price: Call Us |
| 37 |
48600053 |
Preload bush 26,5x42x1,5 Price: Call Us |
| 38 |
91410020S |
SPRING 4,8N/MM SET D=5,25 MM Price: Call Us |
| 39 |
48600021 |
Spring retainer 33,5x43x3 Price: Call Us |
| 42 |
48600196S |
Screw sleeve M29,3x1 cpl. Price: Call Us |
| 43 |
48600239 |
O-ring 8x1,25 NBR70 siliconize Price: Call Us |
| 44 |
48600261 |
REBOUND SPRING 34,5X15X11 Price: Call Us |
| 45 |
48600203 |
Tap 6x45 rebound Price: Call Us |
| 47 |
35480377 |
Spring (11,7) 1,5-8 valve Price: Call Us |
| 49 |
48600062 |
CHECK VALVE 8X24X0,1 Price: Call Us |
| 50 |
40540401 |
Shim 6x14x0,10 Price: Call Us |
| 50 |
40540402 |
Shim 6x16x0,10 Price: Call Us |
| 50 |
40540403 |
Shim 6x18x0,10 Price: Call Us |
| 50 |
40540414 |
SHIM 6X16X0,25 Price: Call Us |
| 50 |
40540415 |
SHIM 6X18X0,25 Price: Call Us |
| 50 |
40540447 |
Shim 6x10x0,30 Price: Call Us |
| 50 |
40540449 |
Shim 6x9x0,30 Price: Call Us |
| 50 |
48600063 |
Shim 6x24x0,10 Price: Call Us |
| 50 |
48600064 |
Shim 6x22x0,10 Price: Call Us |
| 50 |
48600065 |
Shim 6x20x0,10 Price: Call Us |
| 50 |
48600116 |
Shim 6x24x0,10 delta Price: Call Us |
| 51 |
48600060 |
Pistonring 26x28x5 Price: Call Us |
| 52 |
48600201 |
Piston 6x27,65x12 rebound Price: Call Us |
| 55 |
40540486 |
Nut M6x0,5 h6,5 WAF10 rebound Price: Call Us |
| 59 |
48600048 |
O-ring 46x2 NBR70 siliconized Price: Call Us |
| 60 |
48600207S |
AXLE CLAMP L/S CPL. D=30 04 Price: Call Us |
| 61 |
48600436S |
AXLE CLAMP R/S CPL. D=34 05 Not Available This part replaces 48600208S. Price: |
| 62 |
0025080306 |
HH collar screw M8x30 This part replaces 0015080303. Price: Call Us |
| 63 |
48600163 |
Nut valve M6x0,5 h6,5 WAF17 Price: Call Us |
| 64 |
48600202 |
Spring (8,5) l6,5 valve Price: Call Us |
| 69 |
48600586S3 |
Compression, cmpl. This part replaces 48600152S1. Price: Call Us |
| 70 |
48600061 |
Shim 8x24x0,40 Price: Call Us |
| 71 |
48600047 |
Piston 6x27,8x9 compression Price: Call Us |
| 72 |
46811499 |
O-ring 21x2 NBR70 Price: Call Us |
| 73 |
35480320 |
O-ring 24x2 NBR70 Price: Call Us |
| 74 |
48600586S3 |
Compression, cmpl. This part replaces 48600152. Price: Call Us |
| 75 |
48600190 |
Needle 10x11,6 compression Price: Call Us |
| 76 |
48600049 |
O-ring 8x2 NBR70 Price: Call Us |
| 79 |
48600051 |
Round-wire snap ring 12x1 DIN7 Price: Call Us |
| 80 |
48600034 |
Adjustment screw slot compress Price: Call Us |
| 81 |
48600004 |
Copper disc 29,5x33,5x1 Price: Call Us |
| 82 |
48600141 |
Rubber cap 35x10 NBR80 Price: Call Us |
| 83 |
48601166S1 |
Fork Fluid Viscosity 4.0 5L This part replaces 48600211S1. Price: Call Us |
| 85 |
48600075S |
PRE-LOAD ADJUSTER CPL.(1 PC.) Price: Call Us |
| 87 |
48600481 |
Cross countersunk head screw M This part replaces 48600076. Price: Call Us |
| 88 |
48600046 |
O-ring 3x1,5 NBR70 Price: Call Us |
| 89 |
48600075 |
SCREW CAP M51X1,5 Not Available Price: |
| 90 |
48600073S |
ADAPTER ADJUST. KNOB + BUSHING Price: Call Us |
| 91 |
48600077 |
O-ring 26x2 NBR90 Price: Call Us |
| 92 |
46810010 |
Round-wire snap ring 49x1,5 Price: Call Us |
| 93 |
48600072 |
Locking nut M25x1 LH h7 WAF32 Price: Call Us |
| 94 |
48600071 |
Carrier ring spring fork Price: Call Us |
