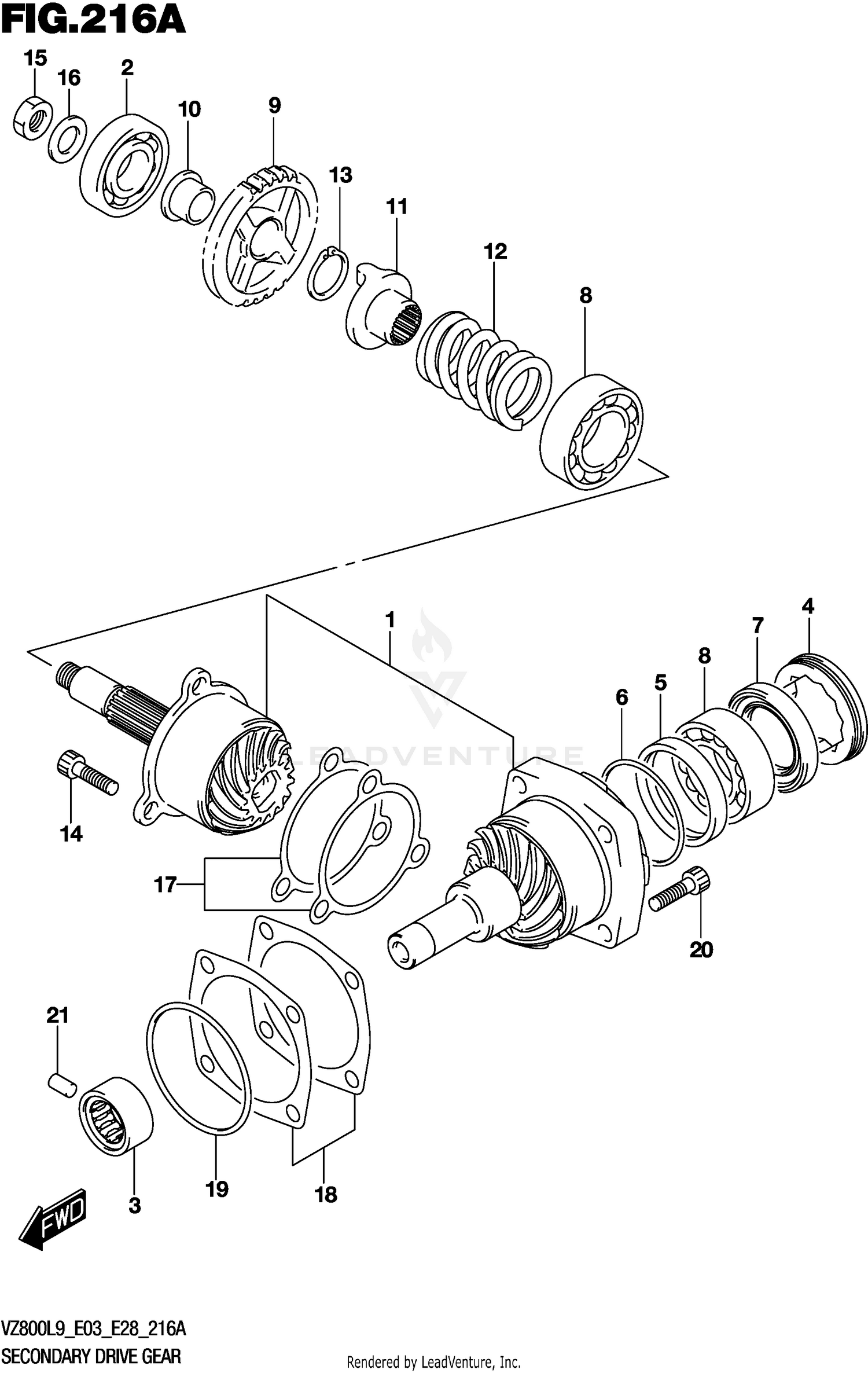

SECONDARY DRIVE GEAR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 24900-41810 | GEAR & HOUSING SET,SECONDARY Price: $1,453.85 |
| 2 | 09262-20073 | BEARING (20X52X15) Price: $28.35 |
| 9 | 24631-38A00 | GEAR,REDUCTION DRIVEN (NT:30) Price: $143.64 |
| 10 | 24632-38A00 | BUSH,REDUCTION DRIVEN GEAR Price: $16.25 |
| 11 | 24922-38A00 | DOG,OUTPUT CAM Price: $51.64 |
| 12 | 09440-44002 | SPRING Price: $22.07 |
| 13 | 08331-31219 | CIRCLIP Price: $2.56 |
| 14 | 09106-08097 | BOLT (8X25) Price: $3.31 |
| 15 | 09140-16005 | NUT This part replaces 09140-16001. Price: $3.95 |
| 16 | 09160-16029 | WASHER (16X29X4.0) Price: $6.68 |
| 19 | 09280-67004 | O-RING (D:2.1,ID:66.2) Price: $4.31 |
| 20 | 09106-08097 | BOLT (8X25) Price: $3.31 |
