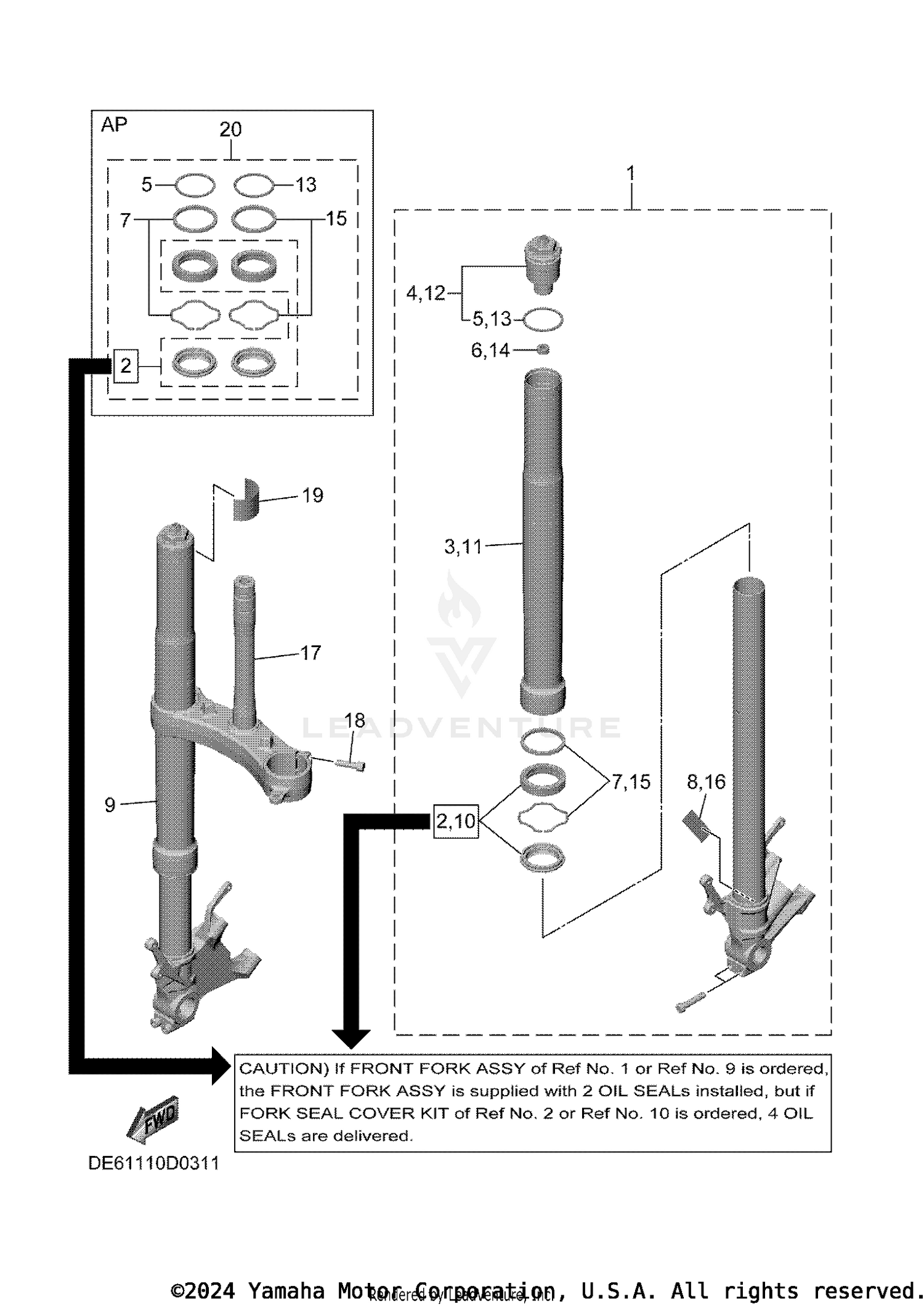

FRONT FORK
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B4S-23102-12-00 | FRONT FORK ASSY (L.H) Price: $3,005.99 |
| 2 | 2KS-231E0-00-00 | FORK SEAL COVER KIT Price: $143.99 |
| 3 | B4S-23106-00-00 | OUTER TUBE COMP. Price: $498.99 |
| 4 | B4S-23111-00-00 | BOLT, CAP Price: $598.99 |
| 5 | 93210-41N50-00 | O-RING Price: $9.49 |
| 6 | 90170-12060-00 | NUT Price: $10.49 |
| 8 | 1MC-22259-11-00 | LABEL, WARNING Price: $8.49 |
| 9 | B4S-23103-12-00 | FRONT FORK ASSY (R.H) Price: $3,003.99 |
| 10 | 2KS-231E0-00-00 | FORK SEAL COVER KIT Price: $143.99 |
| 11 | B4S-23106-00-00 | OUTER TUBE COMP. Price: $498.99 |
| 12 | B4S-23111-00-00 | BOLT, CAP Price: $598.99 |
| 13 | 93210-41N50-00 | O-RING Price: $9.49 |
| 14 | 90170-12060-00 | NUT Price: $10.49 |
| 16 | 1MC-22259-11-00 | LABEL, WARNING Price: $8.49 |
| 17 | 2CR-23340-00-00 | UNDER BRACKET COMP. Price: $596.99 |
| 18 | 91314-08030-00 | BOLT, HEXAGON SOCKET HEAD Price: $2.55 |
| 19 | 5PW-23472-00-00 | PROTECTOR Price: $16.49 |
