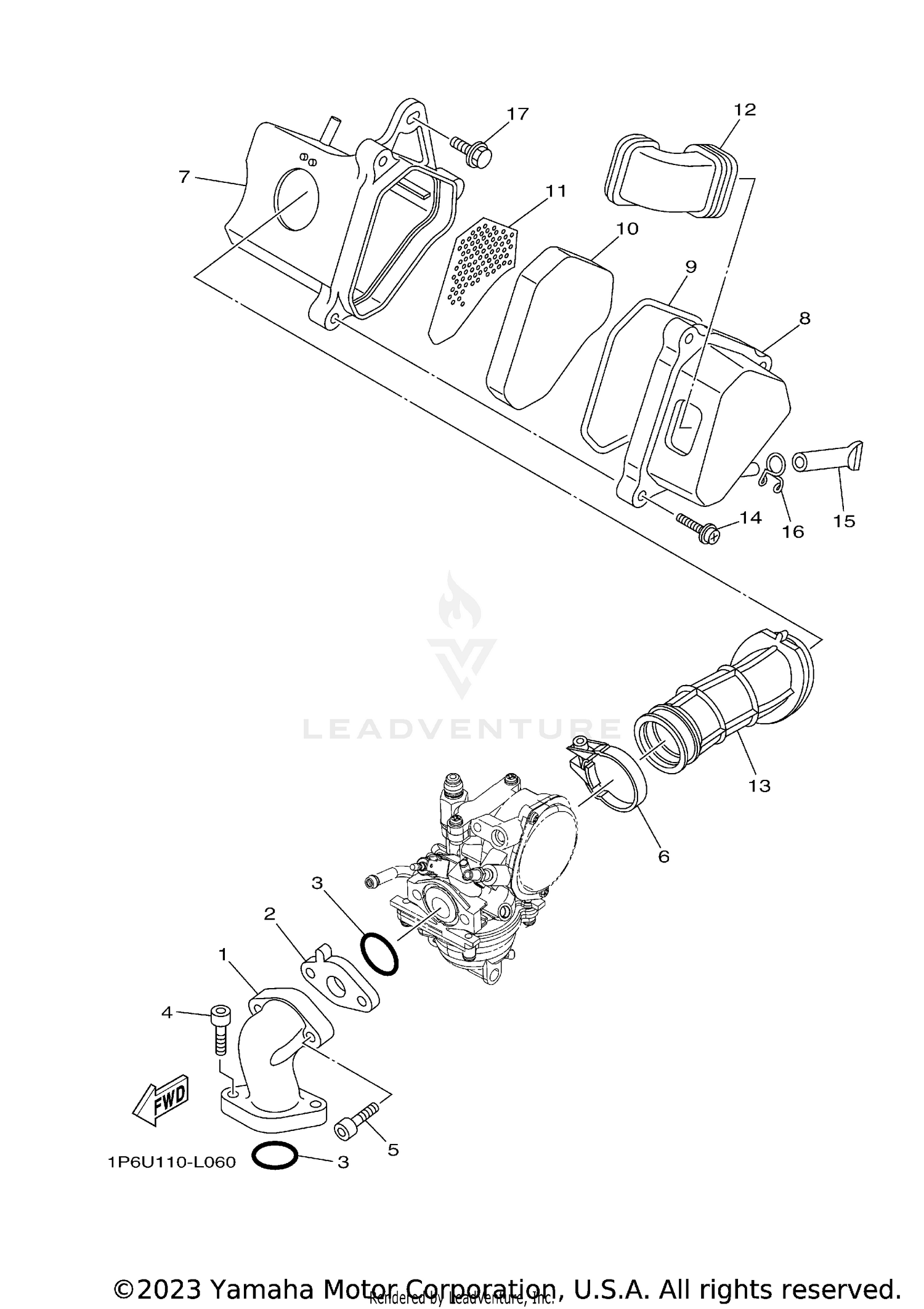

INTAKE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 1P6-E3595-00-00 | JOINT Price: $8.49 |
| 3 | 93210-223A2-00 | O-RING(MF1) This part replaces 93210-22803-00. Price: $5.49 |
| 4 | 91317-06020-00 | BOLT, HEX. SOCKET HEAD Price: $2.75 |
| 5 | 90110-06138-00 | BOLT This part replaces 91317-06030-00. Price: $6.49 |
| 6 | 1P6-E3575-01-00 | BAND Price: $33.99 |
| 7 | 1P6-E4411-01-00 | CASE, AIR CLEANER 1 Price: $47.99 |
| 8 | 1P6-E4412-00-00 | CAP, CLEANER CASE 1 Price: $49.99 |
| 9 | 1P6-E4452-00-00 | SEAL Price: $19.99 |
| 10 | 1P6-E4451-01-00 | ELEMENT, AIR CLEANER This part replaces 1P6-E4451-00-00. Price: $5.99 |
| 11 | 1P6-E4472-00-00 | PLATE, ELEMENT Price: $11.99 |
| 12 | 1P6-E4437-00-00 | DUCT Price: $16.49 |
| 13 | 1P6-E4453-10-00 | JOINT, AIR CLEANER 1 Price: $19.99 |
| 14 | 97602-05225-00 | SCREW, PAN HEAD WITH WASHER Price: $6.49 |
| 15 | 4FP-E443E-00-00 | PIPE, DRAIN Price: $8.49 |
| 16 | 90467-100A1-00 | CLIP This part replaces 90467-10008-00. Price: $8.49 |
