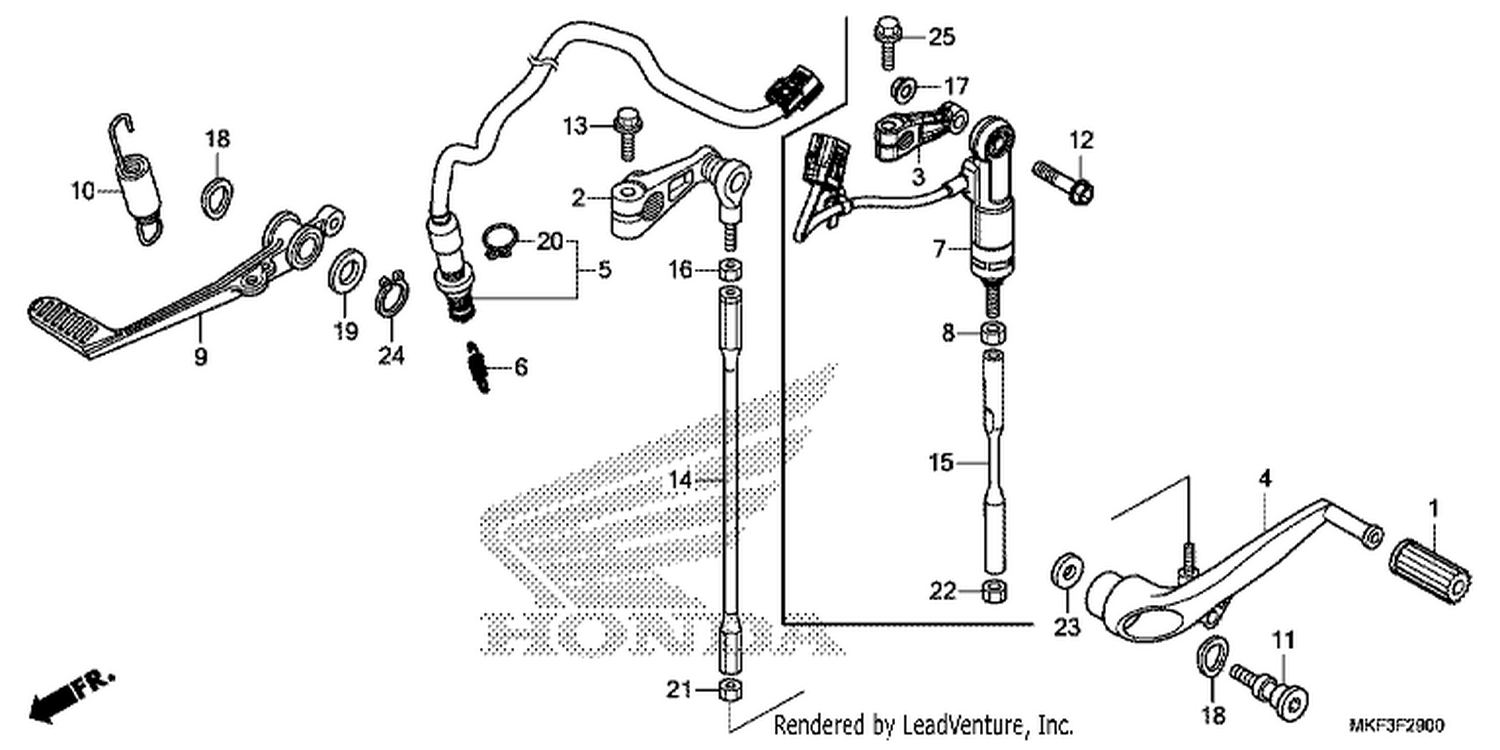

| Ref | Part Number | Description |
|---|
| 1 |
24705MR7000 |
RUBBER, GEAR CHANGE PEDAL Price: Call Us |
| 3 |
24711MKFD60 |
ARM, GEAR CHANGE Price: Call Us |
| 4 |
24720MFLD20 |
PEDAL COMP., GEAR CHANGE Price: Call Us |
| 5 |
35350MKFD41 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 6 |
35357MBR000 |
SPRING, STOP SWITCH Price: Call Us |
| 7 |
36390MKFD61 |
SENSOR ASSY., STROKE Price: Call Us |
| 8 |
45423KA4700 |
NUT, HEX., 6MM (LEFT HAND THREAD) Price: Call Us |
| 9 |
46500MFLD20 |
PEDAL COMP., RR. BRAKE Price: Call Us |
| 10 |
46515MBW000 |
SPRING ASSY., BRAKE PEDAL Price: Call Us |
| 11 |
90113MCF000 |
BOLT, CHANGE PIVOT Price: Call Us |
| 12 |
90115MKFD60 |
BOLT, FLANGE, 7X30 Price: Call Us |
| 15 |
90165MKFD60 |
BAR, CHANGE Price: Call Us |
| 17 |
90202KV3000 |
NUT, FLANGE, 7MM Price: Call Us |
| 18 |
90505MBW000 |
WASHER, CHANGE PEDAL WAVE Price: Call Us |
| 19 |
90557230000 |
WASHER, 15.2X25 Price: Call Us |
| 20 |
90601KAF003 |
CLIP, SWITCH COVER Price: Call Us |
| 22 |
94002060800S |
NUT, HEX., 6MM Price: Call Us |
| 23 |
9410308700 |
WASHER, PLAIN, 8MM Price: Call Us |
| 24 |
9451115000 |
CIRCLIP, EXTERNAL, 15MM Price: Call Us |
