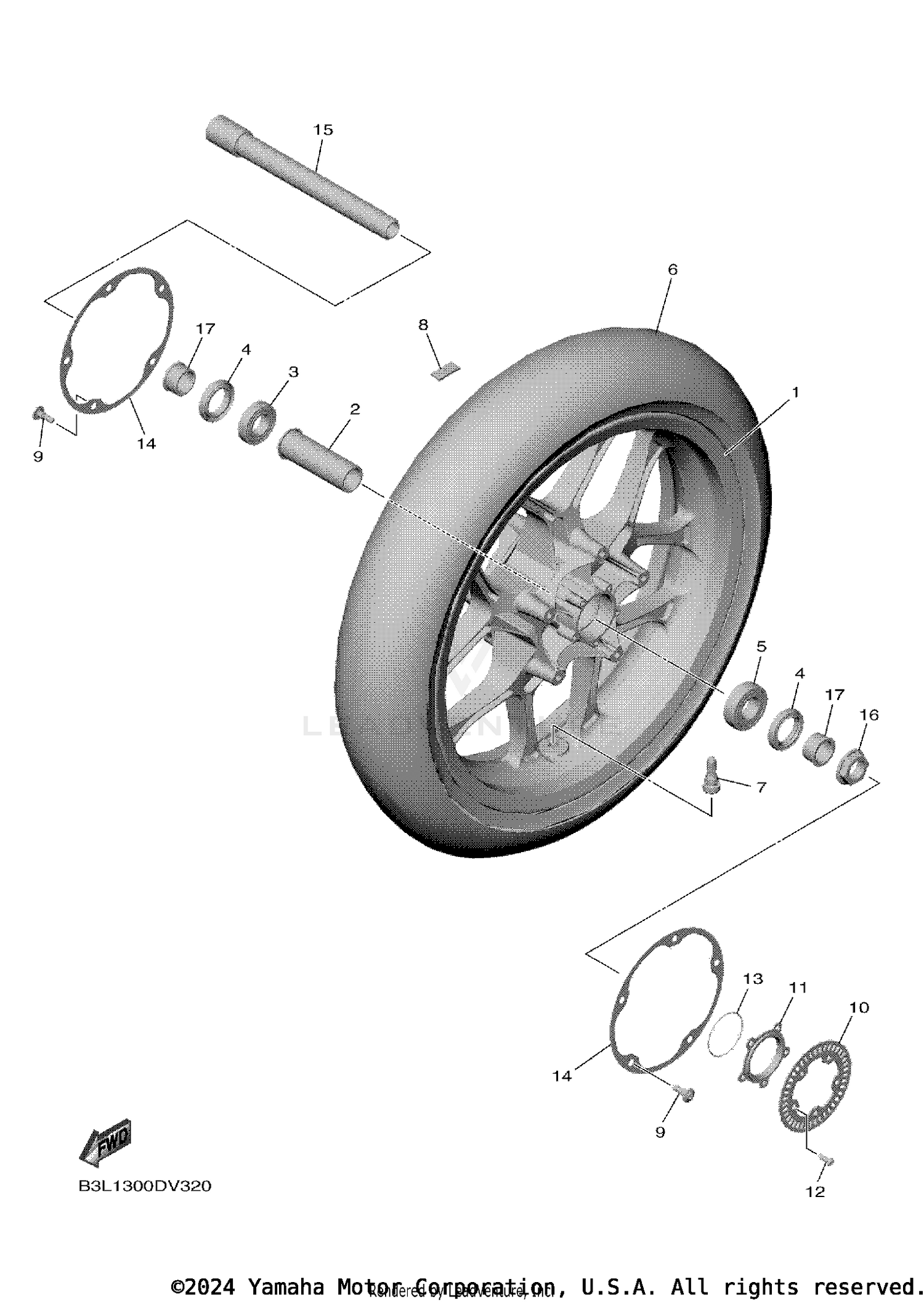

FRONT WHEEL
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 2CR-2510B-00-00 | SPACER ASSY Price: $39.99 |
| 3 | 93306-00507-00 | BEARING (B6005) Price: $46.99 |
| 4 | 93106-31001-00 | OIL SEAL Price: $8.49 |
| 5 | 93306-20509-00 | BEARING (B6205) (93306-20525-00 Price: $32.99 |
| 9 | 2CR-2589H-09-00 | SCREW This part replaces 2CR-2589H-00-00. Price: $15.49 |
| 10 | 1SD-2517G-00-00 | ROTOR, SENSOR Price: $150.99 |
| 11 | 2CR-2514A-00-00 | RING, WHEEL 1 Price: $63.99 |
| 12 | 90149-05038-00 | SCREW This part replaces 90149-05037-00. Price: $2.65 |
| 13 | 93210-47440-00 | O-RING Price: $9.49 |
| 14 | 2CR-2539F-00-00 | PLATE 1 Price: $25.99 |
| 15 | 2CR-25181-00-00 | AXLE, WHEEL Price: $96.99 |
| 16 | 90179-24004-00 | NUT Price: $29.99 |
