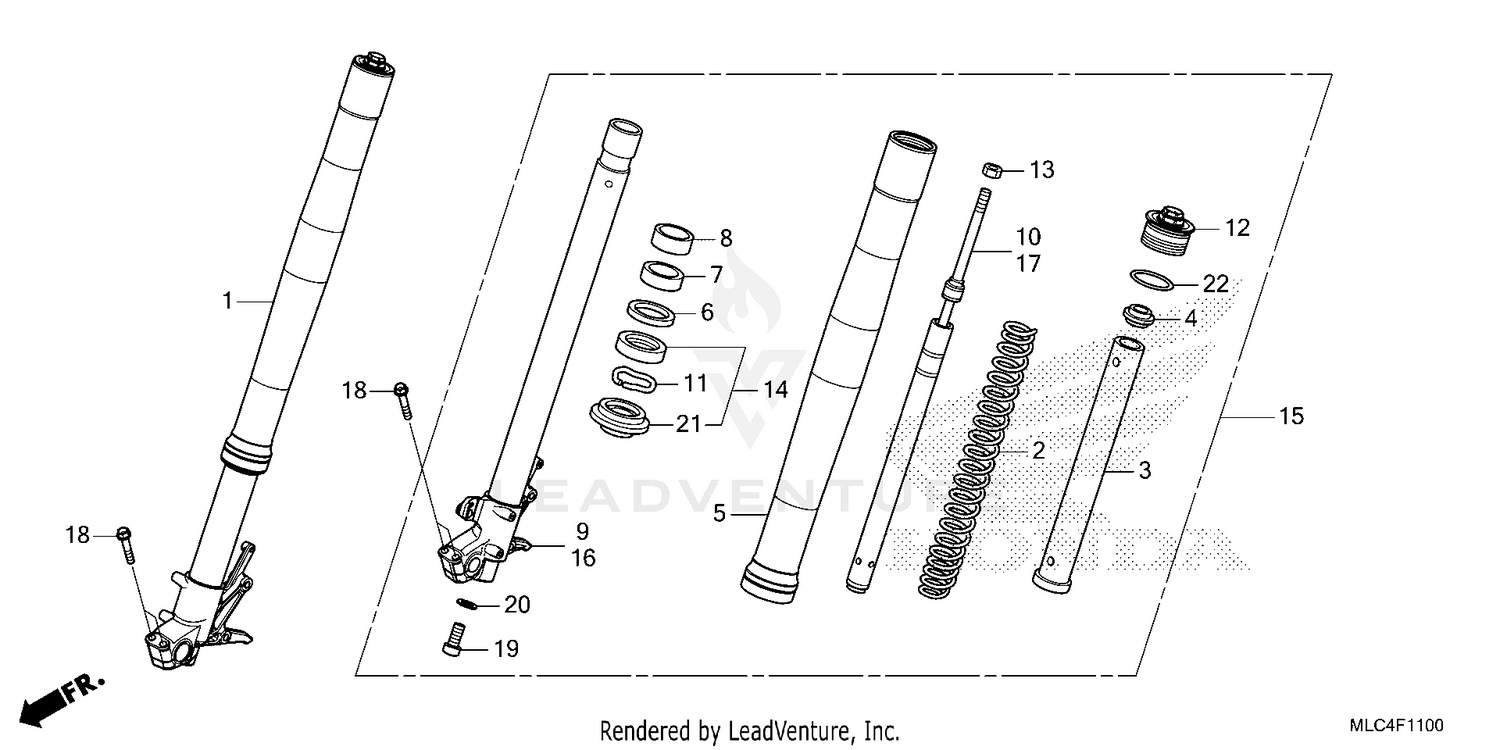

| Ref | Part Number | Description |
|---|
| 1 |
51400-MLC-D31 |
FORK ASSY., R. FR. Price: $1,124.27 |
| 2 |
51401-MLC-D01 |
SPRING, FR. R FORK Price: $57.58 |
| 3 |
51403-MLC-D01 |
COLLAR, SPRING Price: $19.25 |
| 4 |
51406-MW4-003 |
STOPPER, SPRING SEAT Price: $9.93 |
| 5 |
51410-MLC-D01 |
TUBE (OUTER) Price: $461.25 |
| 6 |
51412-KA4-711 |
RING, BACK-UP Price: $11.69 |
| 7 |
51414-MFN-D01 |
BUSH, GUIDE Price: $8.89 |
| 8 |
51415-MFN-D01 |
BUSH, SLIDER Price: $37.08 |
| 9 |
51425-MLC-D01 |
PIPE COMP, R SLIDE Price: $346.38 |
| 10 |
51430-MLC-D31 |
DAMPER, FR. Price: $362.15 |
| 11 |
51447-KA4-711 |
RING, OIL SEAL STOPPER (SHOWA) Price: $5.67 |
| 12 |
51450-MLC-D01 |
BOLT COMP, FR. FORK Price: $142.85 |
| 13 |
51451-MAJ-G41 |
NUT, HEX. (10MM) Price: $3.31 |
| 14 |
51490-MLC-D01 |
SEAL SET, FR. FORK Price: $23.20 |
| 15 |
51500-MLC-D31 |
FORK ASSY., L. FR. Price: $1,124.27 |
| 16 |
51525-MLC-D01 |
PIPE COMP, L SLIDE Price: $331.53 |
| 17 |
51530-MLC-D01 |
DAMPER COMP, FR. Price: $405.67 |
| 18 |
90105-MLC-D00 |
BOLT (8X45) Price: $2.75 |
| 19 |
90116-KV3-701 |
BOLT, SOCKET (8MM) (SHOWA) Price: $4.89 |
| 20 |
90544-283-000 |
WASHER, SPECIAL (8MM) (SHOWA) Price: $3.27 |
| 21 |
91254-MLC-D01 |
DUST SEAL Price: $14.71 |
