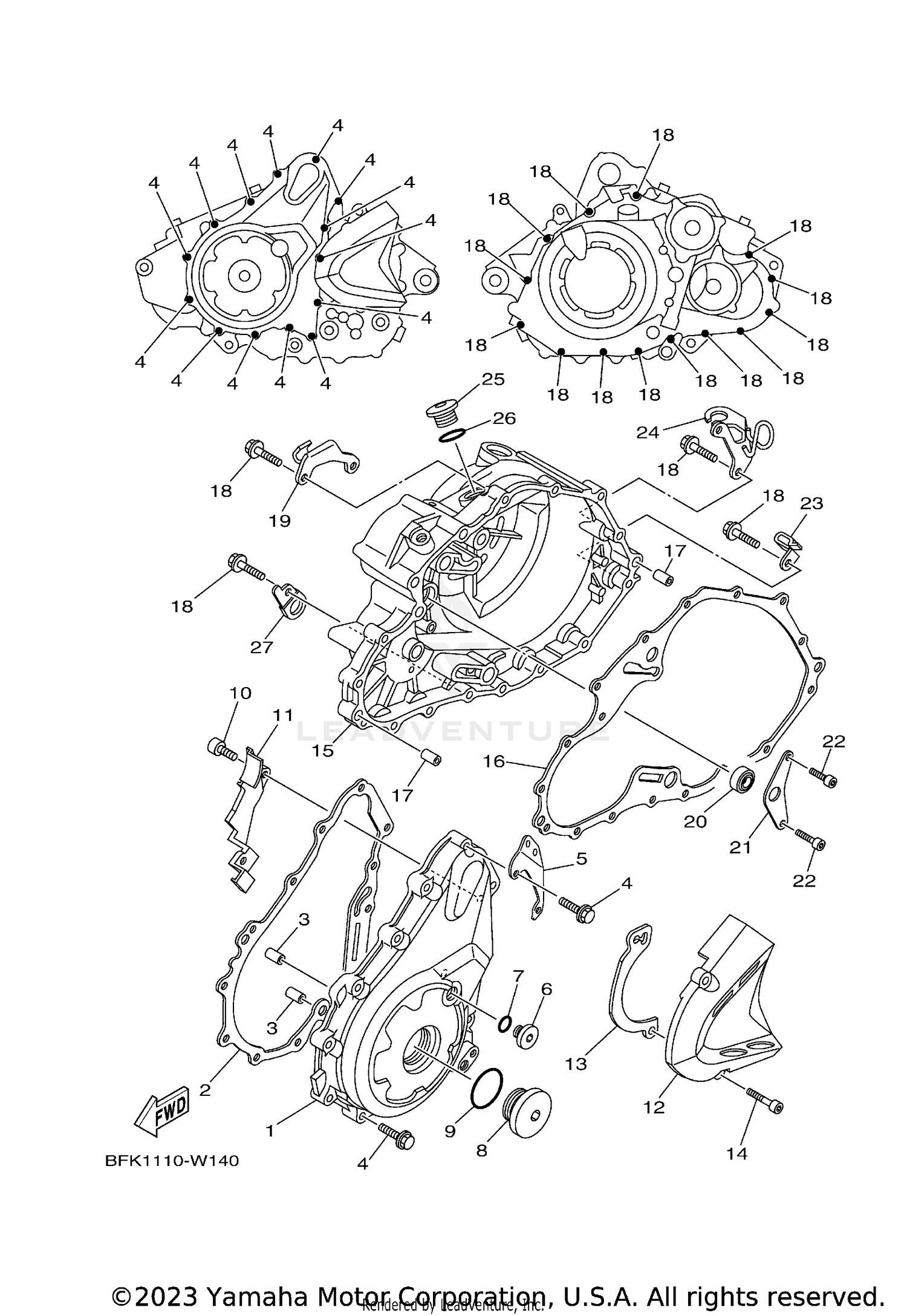

| Ref | Part Number | Description |
|---|
| 1 |
1S3-15411-00-00 |
COVER, CRANKCASE 1 Price: $259.99 |
| 2 |
1S3-15451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $19.99 |
| 3 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 4 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 5 |
BFK-14494-00-00 |
STAY 2 Price: $8.49 |
| 6 |
90340-14016-00 |
PLUG, STRAIGHT SCREW Price: $19.49 |
| 7 |
93210-14369-00 |
O-RING Price: $8.49 |
| 8 |
90340-36004-00 |
PLUG, STRAIGHT SCREW Price: $20.99 |
| 9 |
93210-35804-00 |
O-RING This part replaces 93210-357A3-00. Price: $0.60 |
| 10 |
91312-05014-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05031-00. Price: $3.20 |
| 11 |
1S3-15113-00-00 |
PLATE Price: $18.49 |
| 12 |
1S3-15421-00-00 |
COVER, CRANKCASE 2 Price: $25.99 |
| 13 |
1S3-17466-00-00 |
GUIDE, CHAIN Price: $21.99 |
| 14 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 15 |
1S3-15431-00-00 |
COVER, CRANKCASE 3 Price: $387.99 |
| 16 |
1S3-15462-00-00 |
GASKET, CRANKCASE COVER 3 Price: $21.99 |
| 17 |
99530-10120-00 |
PIN, DOWEL Price: $3.35 |
| 18 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 19 |
1S3-15441-00-00 |
HOLDER, CLUTCH CABLE Price: $22.99 |
| 20 |
93101-14164-00 |
OIL SEAL Price: $12.49 |
| 21 |
1S3-15118-00-00 |
HOLDER Price: $7.49 |
| 22 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 23 |
90461-10011-00 |
CLAMP Price: $13.49 |
| 24 |
1S3-1546C-00-00 |
HOLDER Price: $31.99 |
| 25 |
4H7-15189-00-00 |
PLUG Price: $33.99 |
| 26 |
93210-20802-00 |
O-RING This part replaces 93210-207A0-00. Price: $0.95 |
