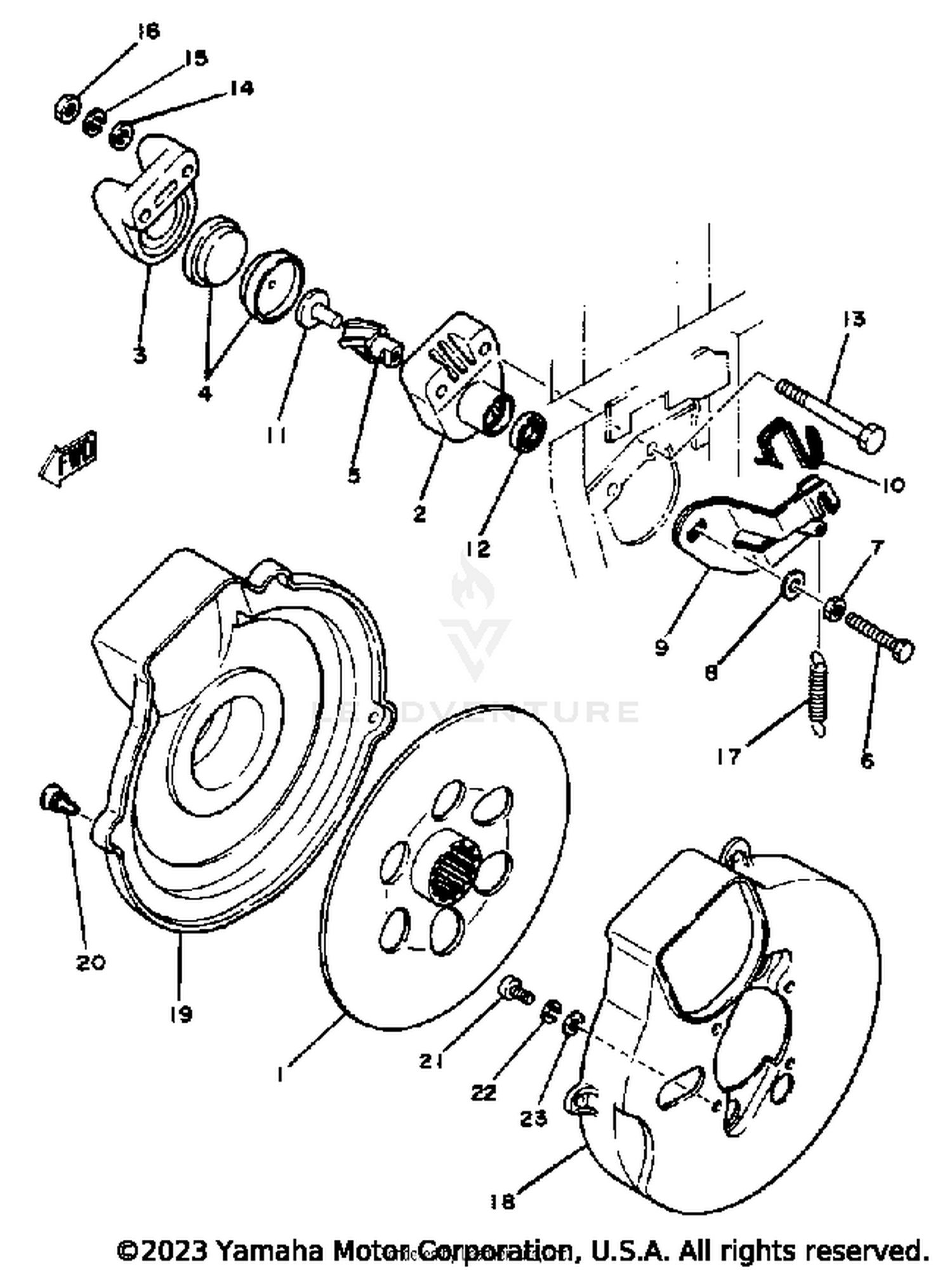

| Ref | Part Number | Description |
|---|
| 1 |
5V6-25711-00-00 |
DISC,BRAKE Price: $91.91 |
| 2 |
5V6-25731-00-00 |
BODY,CALIPER 1 Price: $44.99 |
| 3 |
5V6-25741-00-00 |
BODY,CALIPER 2 Price: $37.99 |
| 4 |
2HR-W0045-09-00 |
BRAKE PAD KIT This part replaces 2HR-W0045-00-00. Price: $50.99 |
| 5 |
3X3-25728-00-00 |
CAM Price: $15.99 |
| 6 |
90103-08026-00 |
BOLT, HEAD WITH HOLE This part replaces 90101-08536-00. Price: $14.99 |
| 7 |
95333-08600-00 |
NUT (6L2) Price: $3.80 |
| 8 |
90201-087F0-00 |
WASHER, PLATE This part replaces 90201-08730-00. Price: $6.49 |
| 9 |
3X3-25726-01-00 |
LEVER, BRAKE Price: $19.99 |
| 10 |
3X3-25736-00-00 |
HOOK,SPRING Price: $13.49 |
| 11 |
J45-25733-00-00 |
PLATE, BACK UP This part replaces 5V6-25733-00-00. Price: $21.99 |
| 12 |
93102-15212-00 |
OIL SEAL Price: $10.49 |
| 13 |
97017-10085-00 |
BOLT, HEXAGON This part replaces 97022-10085-00. Price: $3.25 |
| 14 |
92990-10600-00 |
WASHER, PLATE Price: $3.00 |
| 15 |
92990-10100-00 |
WASHER, SPRING Price: $3.25 |
| 16 |
95380-10600-00 |
NUT Price: $2.80 |
| 17 |
90506-16215-00 |
SPRING, TENSION Price: $4.75 |
| 18 |
5V6-25715-00-00 |
COVER 1 Price: $41.99 |
| 19 |
5V6-25716-00-00 |
COVER 2 Price: $44.99 |
| 20 |
90269-06026-00 |
RIVET, SPEC''L SHAPE Price: $2.55 |
| 21 |
98507-06014-00 |
SCREW, PAN HEAD This part replaces 98503-06014-00. Price: $9.49 |
| 22 |
92995-06100-00 |
WASHER, PAN HEAD Price: $3.45 |
