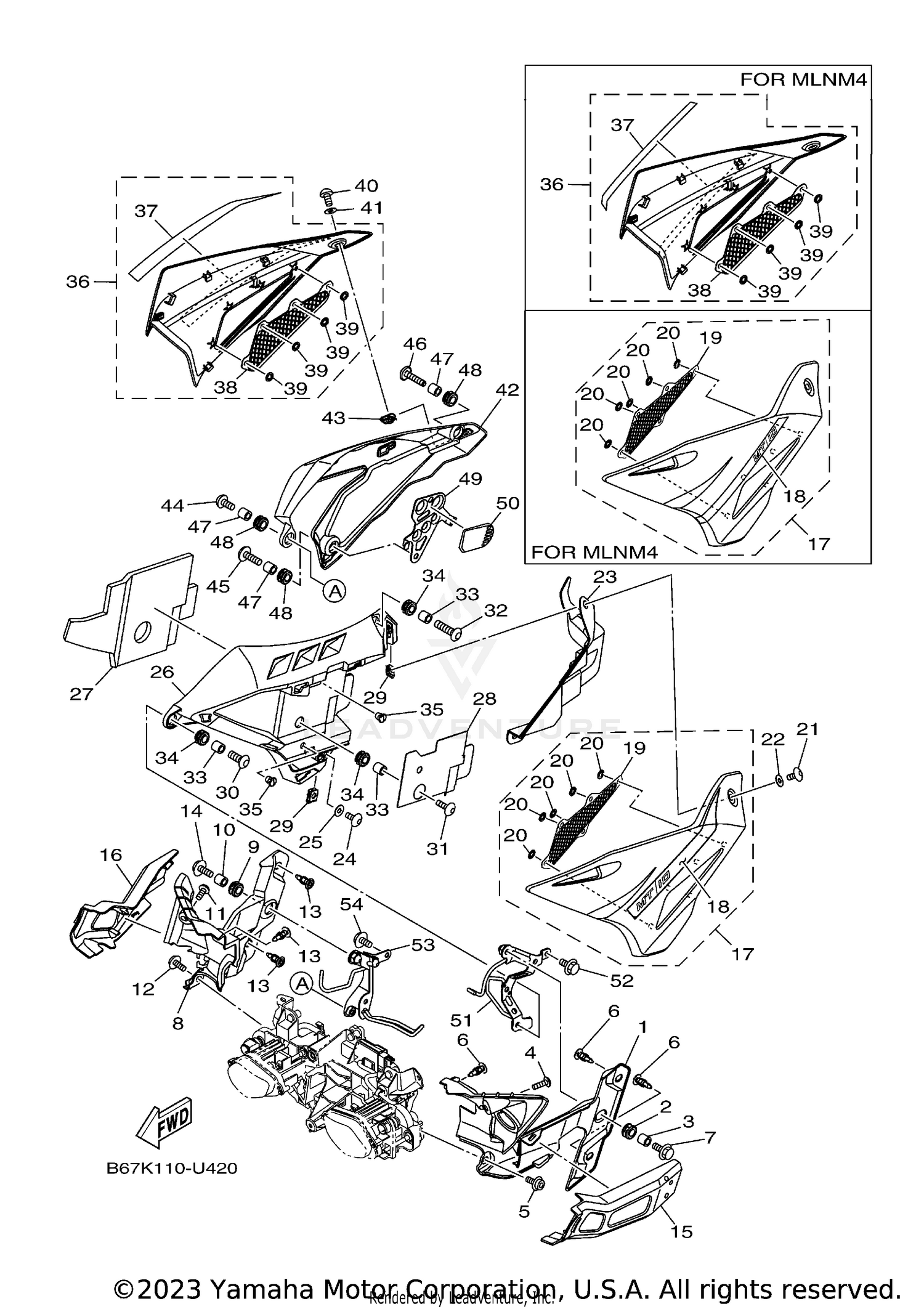

| Ref | Part Number | Description |
|---|
| 1 |
B67-2836M-01-00 |
PANEL, INNER 3 This part replaces B67-2836M-00-00. Price: $18.49 |
| 2 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 3 |
90387-06260-00 |
COLLAR Price: $9.49 |
| 4 |
90167-05076-00 |
SCREW, TAPPING Price: $2.85 |
| 5 |
90110-05014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 6 |
90269-06001-00 |
RIVET Price: $6.49 |
| 7 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 8 |
B67-2836N-01-00 |
PANEL, INNER 4 This part replaces B67-2836N-00-00. Price: $18.49 |
| 9 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 10 |
90387-06260-00 |
COLLAR Price: $9.49 |
| 11 |
90167-05076-00 |
SCREW, TAPPING Price: $2.85 |
| 12 |
90110-05014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 13 |
90269-06001-00 |
RIVET Price: $6.49 |
| 14 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 15 |
B67-2831U-01-00 |
STAY, SIDE 1 This part replaces B67-2831U-00-00. Price: $45.99 |
| 16 |
B67-2832U-01-00 |
STAY, SIDE 1 This part replaces B67-2832U-00-00. Price: $45.99 |
| 19 |
B67-2837V-00-00 |
GRILL, AIR OUTLET 1 Price: $19.49 |
| 20 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 21 |
90111-05059-00 |
BOLT,HEX. SOCKET BUT This part replaces 90110-05201-00. Price: $2.80 |
| 22 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 23 |
B67-2843J-00-00 |
COVER 3 Price: $31.99 |
| 24 |
90111-05059-00 |
BOLT,HEX. SOCKET BUT This part replaces 90110-05201-00. Price: $2.80 |
| 25 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 26 |
B67-2836A-00-00 |
BRACKET 1 Price: $53.99 |
| 27 |
B67-28415-01-00 |
DAMPER 1 Price: $43.99 |
| 28 |
B67-21266-00-00 |
SHEET 1 Price: $6.49 |
| 29 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 30 |
90111-06038-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.65 |
| 31 |
90111-06084-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 32 |
90111-06030-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 33 |
90387-06260-00 |
COLLAR Price: $9.49 |
| 34 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 35 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 38 |
B67-2837W-00-00 |
GRILL, AIR OUTLET 2 Price: $33.99 |
| 39 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 40 |
90111-05059-00 |
BOLT,HEX. SOCKET BUT This part replaces 90110-05201-00. Price: $2.80 |
| 41 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 42 |
B67-2836E-00-00 |
BRACKET 2 Price: $54.99 |
| 43 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 44 |
90111-06038-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.65 |
| 45 |
90111-06084-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 46 |
90111-06030-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 47 |
90387-06260-00 |
COLLAR Price: $9.49 |
| 48 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 49 |
B67-2833J-00-00 |
BRACKET 12 Price: $16.49 |
| 50 |
B67-21488-00-00 |
DAMPER Price: $14.49 |
| 51 |
B67-2172K-00-00 |
BRACKET 1 Price: $76.99 |
| 52 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 53 |
B67-2172L-00-00 |
BRACKET 2 Price: $66.99 |
