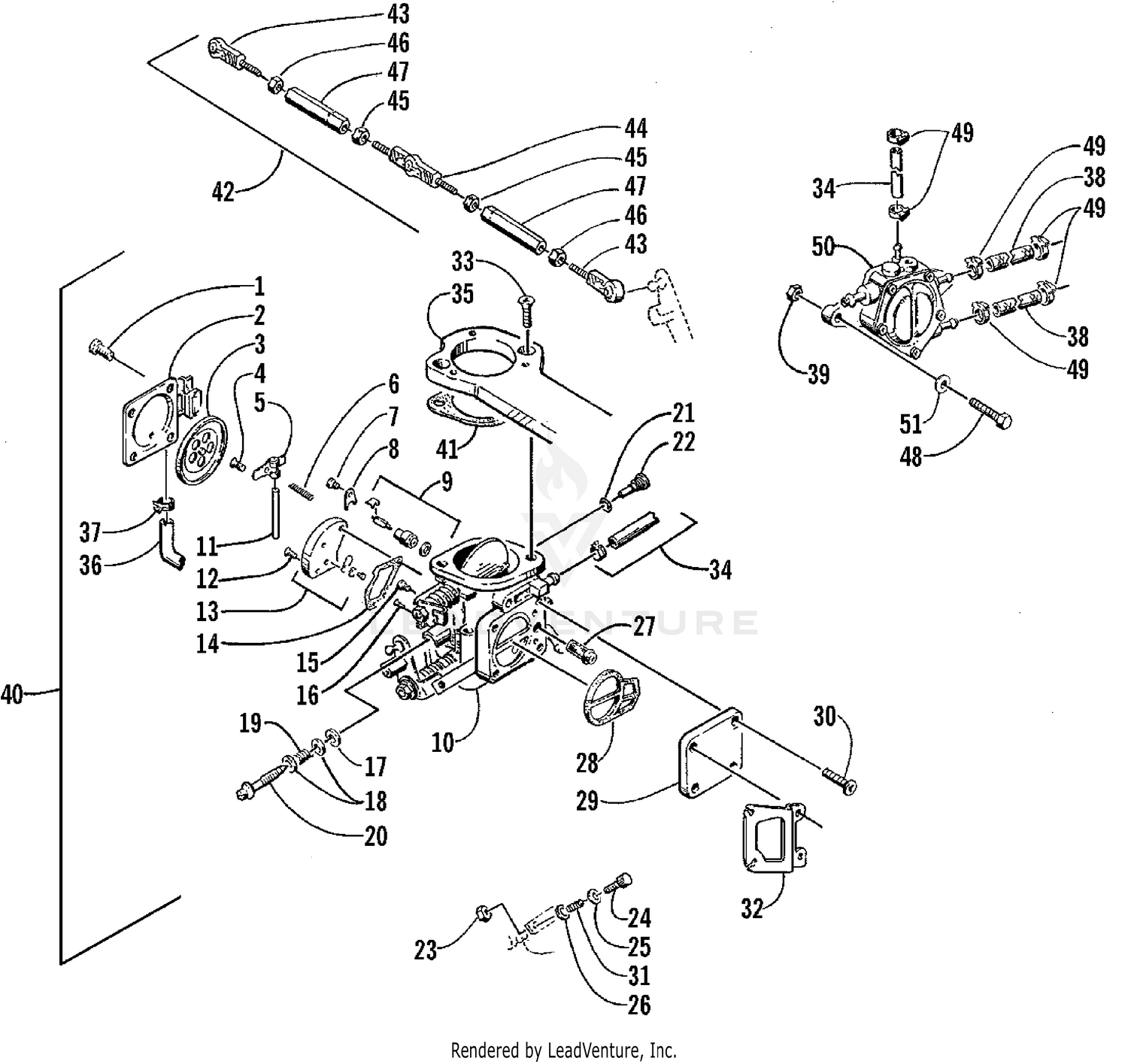

CARBURETOR [73519]

CARBURETOR [73519]

Parts (56)

RefPart NumberDescription
1 6505-915 Screw, Cap Price: $3.19
1 6505-943 Screw, Machine Price: $1.97
2 6505-662 Cover Price: $39.95
2 6506-021 Cover (PTO Carburetor) Price: $438.43
3 6505-663 Diaphragm Ass'y Price: $41.95
4 6505-692 Screw, Machine Price: $1.19
5 6505-664 Arm Price: $9.79
6 6505-934 Spring Price: $8.59
7 6505-695 Screw, Machine Price: $3.09
8 6505-682 Plate Price: $3.39
9 6505-944 Needle Valve Assembly Price: $44.95
11 6505-681 Pin Price: $1.19
12 6505-679 Screw, Machine Price: $0.69
13 6505-680 Block, Metering Price: $49.95
14 6505-677 Gasket Price: $38.95
15 6505-732 Jet, High Speed - 105 (Mag Carburetor) Price: $9.39
15 6505-737 Jet, High Speed - 120 (PTO Carburetor) Price: $5.95
15 6505-743 Jet, High Speed - 135 (Center Carburetor) Price: $11.95
16 6505-774 Jet, Low Speed - 70 Price: $9.39
17 6505-668 Seal Price: $1.39
18 6505-661 Washer Price: $1.19
19 6505-660 Spring Price: $1.79
20 6505-852 Adjuster Price: $24.95
21 6505-042 O-Ring Price: $5.81
22 6505-109 Jet, Main Fixed (Mag Carburetor) Price: $4.38
22 6505-394 Jet Pilot #95 (Center and PTO Carburetor) Price: $4.39
23 6505-911 Nut Price: $10.58
24 6505-912 Screw Assembly Price: $39.95
25 6505-703 Washer Price: $1.19
26 6505-872 O-Ring Price: $3.59
27 6505-676 Filter Price: $9.95
28 6505-665 S-Gasket Price: $49.95
29 6505-848 Cover Price: $61.51
30 6505-853 Screw w/Washer Price: $4.94
31 6505-678 Spring Price: $1.79
32 6505-913 Bracket, Cable Price: $71.23
33 6505-914 Screw, Machine Price: $3.09
34 0710-425 HOSE,FUEL-25' (ISO8469) Price: $68.79
35 6505-917 Plate, Mounting Price: $215.95
36 6505-941 Clip (PTO Carburetor) Price: $5.59
37 6505-942 Hose (PTO Carburetor) Price: $5.29
38 0710-425 HOSE,FUEL-25' (ISO8469) Price: $68.79
39 0624-089 Nut, Lock (900) Price: $1.09
40 6506-105 PTO-Carburetor Assembly (inc. 1-22 & 27-30) Price: $794.83
40 6506-106 Center-Carburetor Assembly (inc. 1-22 & 27-30) Price: $707.95
40 6506-107 Mag-Carburetor Assembly (inc. 1-32) Price: $441.79
41 6505-916 Gasket Price: $17.95
42 6505-919 Rod Assembly (inc. 43-47) Price: $110.95
43 6505-858 End, Adjuster - Left Price: $16.79
44 6505-922 Rod - Center Price: $45.31
45 6505-859 Nut, Jam - Left Price: $2.12
46 6505-860 Nut, Jam Price: $10.58
47 6505-921 Adjuster, Throttle Linkage Price: $28.95
48 0624-289 Screw, Cap Price: $0.63
49 0624-120 Clamp, Hose Price: $1.69
50 0670-573 Pump, Fuel Price: $130.95
