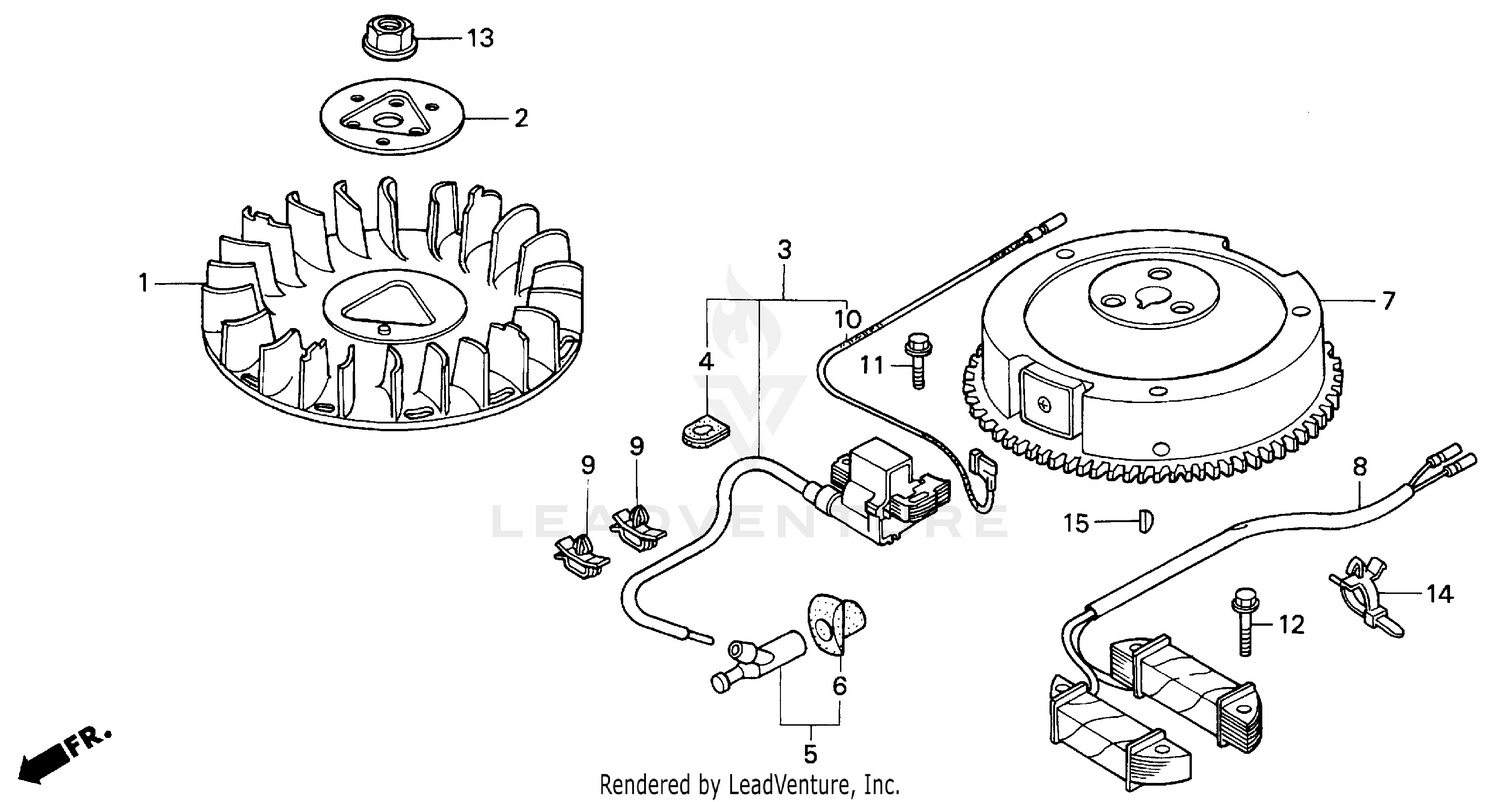

| Ref | Part Number | Description |
|---|
| 1 |
19511-ZE9-020 |
FAN, COOLING Price: $9.32 |
| 2 |
19512-ZE2-000 |
PLATE, COOLING FAN SETTING (Honda Code 2297414). Price: $11.60 |
| 3 |
30500-ZF5-L14 |
SEE PART DETAILS - PRI; COIL ASSY., IGNITION This part replaces 30500-ZF5-L13. Price: $74.23 |
| 4 |
30563-ZE8-000 |
GROMMET, IGNITION (Honda Code 2091205). Price: $5.96 |
| 5 |
30600-ZF5-L12 |
TERMINAL ASSY., IGNITION Price: $25.06 |
| 6 |
30605-ZF5-L11 |
SEAL, IGNITION TERMINAL Price: $14.12 |
| 8 |
31630-ZF5-L11 |
COIL ASSY., CHARGE (10A) Price: $184.38 |
| 9 |
32161-393-003 |
CLIP, WIRE HARNESS Price: $3.86 |
| 10 |
36101-ZF5-L11 |
WIRE, STOP SWITCH Price: $14.10 |
| 11 |
90015-883-000 |
BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314. Price: $3.62 |
| 12 |
90031-ZE1-000 |
BOLT, FLANGE (6X32) (Honda Code 2092971). Price: $3.62 |
| 13 |
90201-ZE3-790 |
SEE PART DETAILS - PRI; NUT, SPECIAL (16MM) Price: $11.32 |
| 14 |
90649-SC2-003 |
BAND, WIRE HARNESS (150MM) (NATURAL) DUAL QTY = (2) (SINGLE) Price: $8.76 |
