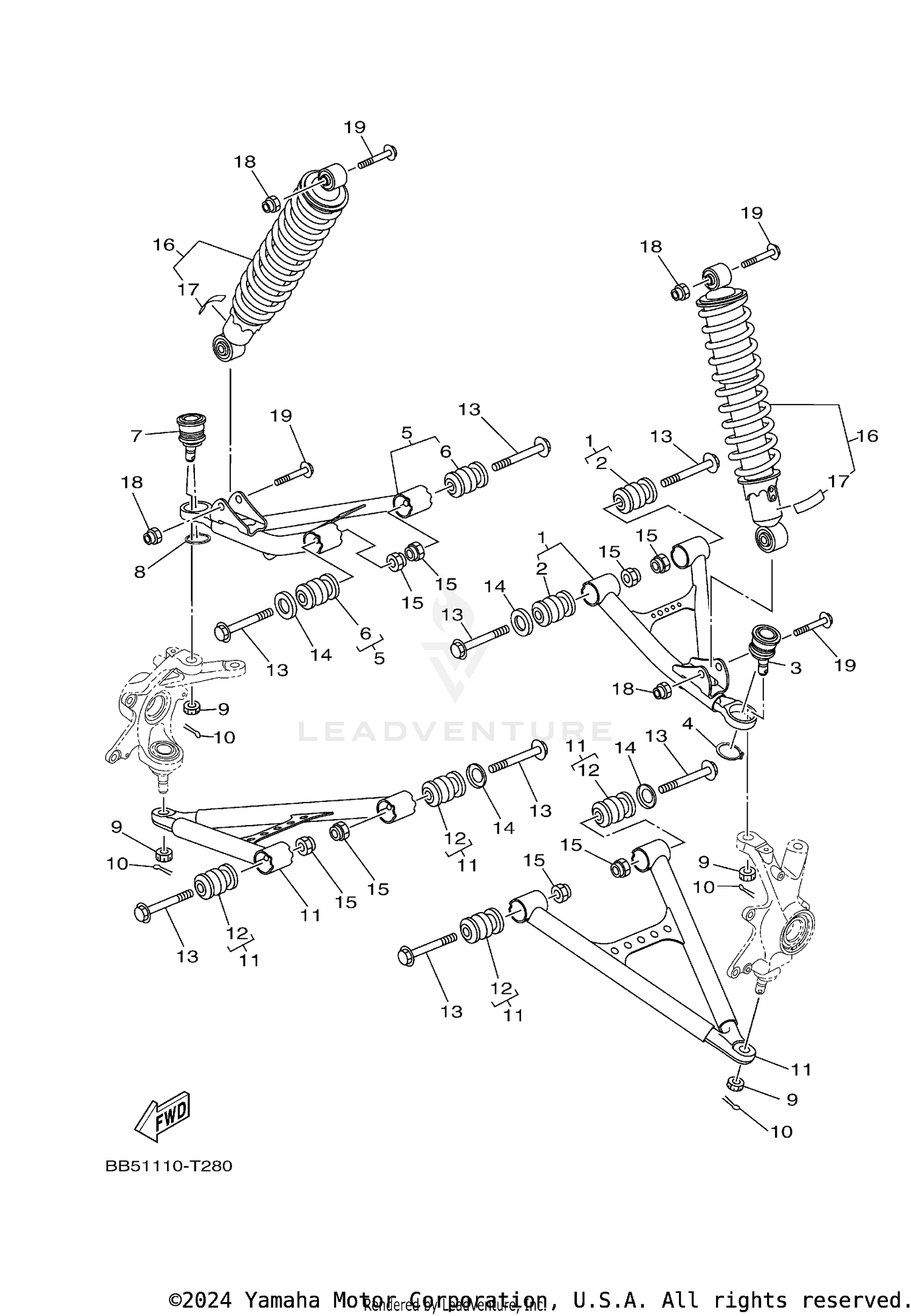

FRONT SUSPENSION WHEEL
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BB5-F3540-02-00 | FRONT UPPER ARM COMP. (LEFT) This part replaces BB5-F3540-01-00. Price: $75.99 |
| 2 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 3 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 4 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 5 | BB5-F3550-02-00 | FRONT UPPER ARM COMP. (RIGHT) This part replaces BB5-F3550-01-00. Price: $71.99 |
| 6 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 7 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 8 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 9 | 90171-12001-00 | NUT, CASTLE Price: $3.55 |
| 10 | 91490-25020-00 | PIN. COTTER This part replaces 91402-25020-00. Price: $3.45 |
| 11 | BB5-F3570-01-00 | FRONT LOWER ARM COMP. (LEFT) This part replaces BB5-F3570-00-00. Price: $71.99 |
| 12 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 13 | 95817-10070-00 | BOLT, FLANGE This part replaces 95812-10070-00. Price: $6.49 |
| 14 | 5KM-22149-10-00 | WASHER Price: $8.49 |
| 15 | 95602-10200-00 | NUT, S/L FLANGE Price: $2.70 |
| 16 | BB5-F3390-00-00 | SHOCK ABSORBER ASSY 2 Price: $199.99 |
| 17 | BB5-F2259-00-00 | LABEL, WARNING Price: $2.75 |
| 18 | 90185-10012-00 | NUT, SELF-LOCKING Price: $3.60 |
