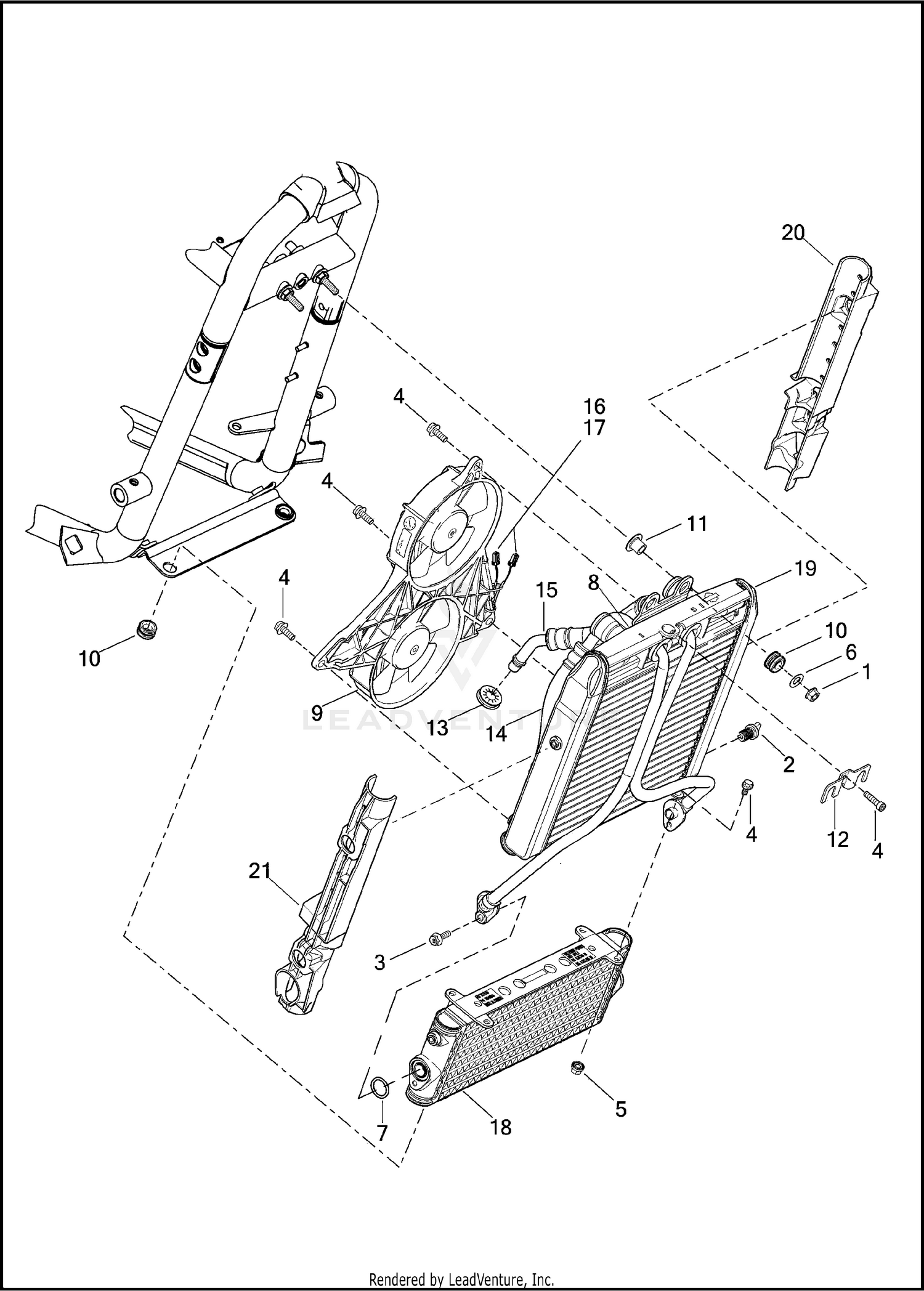

| Ref | Part Number | Description |
|---|
| 1 |
3725M |
NUT M8 X 1.25 HEX FLANGE HD., W/LOCKPATCH Price: $0.59 |
| 2 |
5235 |
PLUG Price: $7.97 |
| 3 |
5236M |
SCREW M6 X 1.0 X 20 HEX FLANGE HD. Price: $2.80 |
| 4 |
5237M |
SCREW M6, X 1.0 X 16 HEX FLANGE HD. Price: $2.86 |
| 5 |
5238M |
LOCKNUT M6 FLANGE Price: $1.38 |
| 6 |
6838M |
WASHER M8 REGULAR Price: $0.59 |
| 7 |
11101 |
O-RING Price: $1.15 |
| 8 |
11568 |
BUSHING Price: $11.53 |
| 8 |
26721-01C |
RADIATOR/OIL COOLER ASSEMBLY KIT Not Available Price: |
| 9 |
26724-04 |
FAN ASSEMBLY Price: $334.80 |
| 10 |
26757-01 |
GROMMET Price: $4.59 |
| 11 |
26758-01 |
SPACER Not Available Price: |
| 12 |
26772-04 |
BRACKET Price: $8.90 |
| 13 |
62909-04 |
CAP Price: $2.51 |
| 14 |
62940-04A |
OIL LINE OIL COOLER - INLET Price: $159.87 |
| 15 |
62941-04A |
OIL LINE OIL COOLER - OUTLET Price: $159.87 |
| 16 |
73152-96BK |
HOUSING RECEPTACLE 2-PLACE Price: $1.20 |
| 17 |
73191-96 |
RECEPTACLE CONTACT Price: $0.58 |
| 18 |
62700054 |
OIL COOLER ASSEMBLY Price: $321.42 |
| 19 |
26800027 |
RADIATOR Price: $412.41 |
| 20 |
26800028 |
RADIATOR BRACKET LEFT Price: $14.19 |
