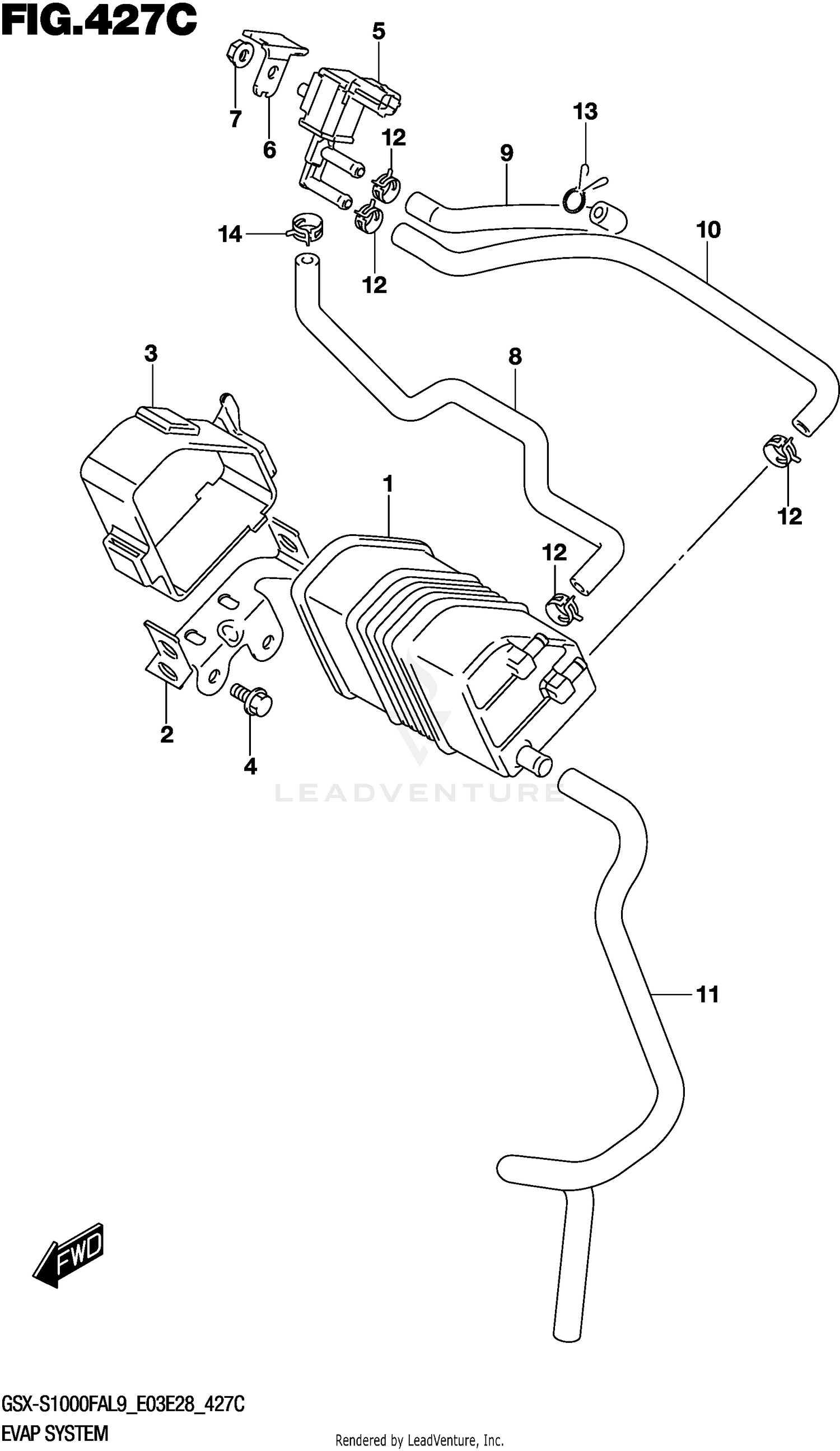

EVAP SYSTEM (GSX-S1000FZAL9 E33)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 18560-04K01 | CANISTER ASSY, CHARCOAL This part replaces 18560-04K00. Price: $115.72 |
| 2 | 18571-04K00 | BRACKET, CANISTER Price: $9.49 |
| 3 | 18572-04K00 | CUSHION, CANISTER Price: $14.44 |
| 4 | 01550-0612A | BOLT Price: $2.37 |
| 5 | 18117-52G10 | VALVE Price: $161.76 |
| 6 | 18573-04K00 | BRACKET, PURGE VALVE Price: $4.08 |
| 7 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 8 | 18561-04K10 | HOSE, SURGE Price: Call Us |
| 9 | 18563-04K00 | HOSE, PURGE NO.2 Price: $16.29 |
| 10 | 18562-04K00 | HOSE, PURGE NO.1 Price: $29.19 |
| 11 | 18564-04K00 | HOSE, CANISTER DRAIN Price: $21.64 |
| 12 | 09401-10409 | CLIP (ID:10.5) Price: $2.75 |
| 13 | 09401-10403 | CLIP (ID:10) Price: $2.02 |
