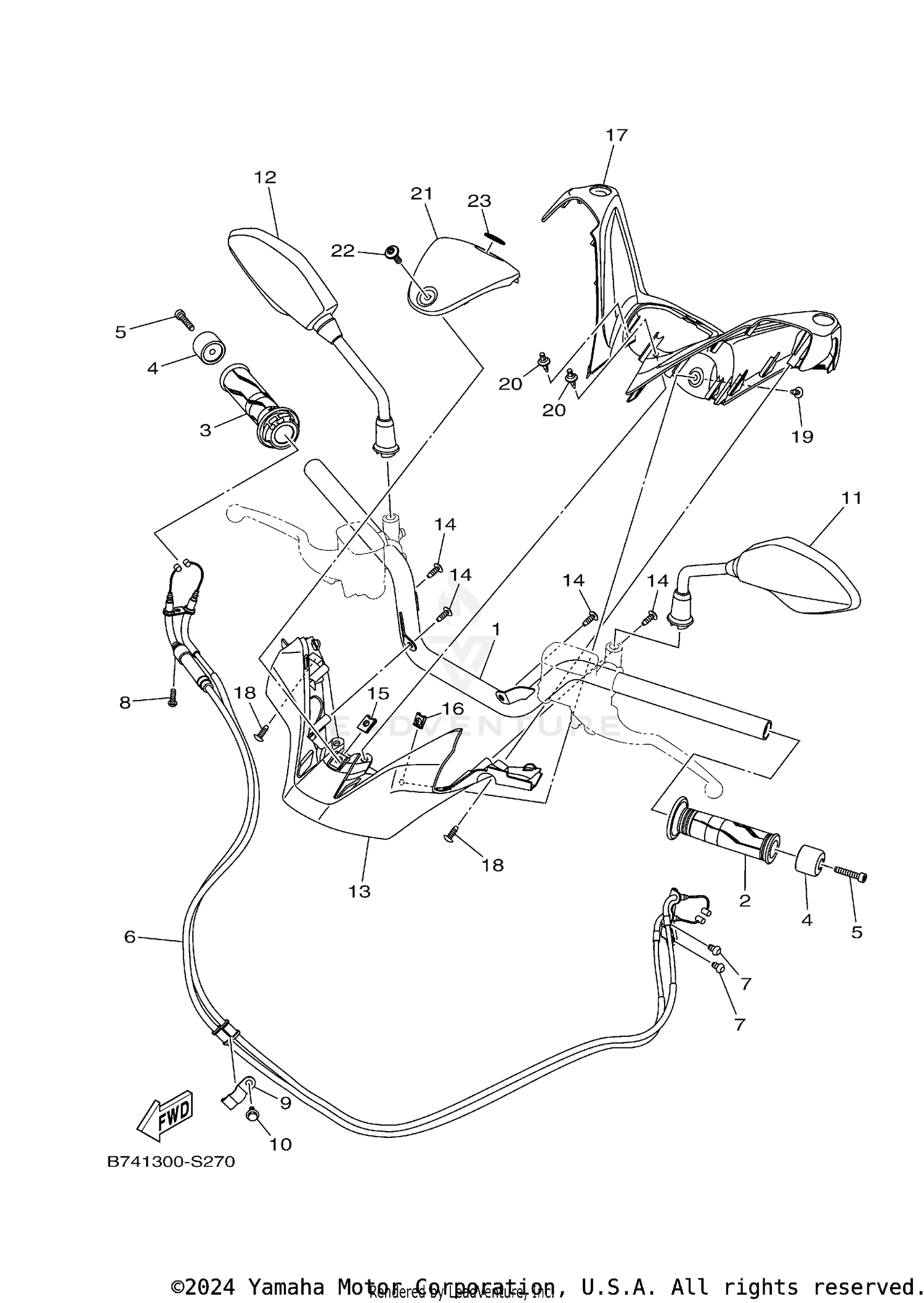

| Ref | Part Number | Description |
|---|
| 1 |
B74-F6110-00-00 |
HANDLE COMP. Price: $34.99 |
| 2 |
2DP-F6241-00-00 |
GRIP Price: $3.70 |
| 3 |
2DP-F6240-00-00 |
GRIP ASSY Price: $4.10 |
| 4 |
1PA-F6246-10-00 |
END, GRIP Price: $5.49 |
| 5 |
90110-06138-00 |
BOLT This part replaces 91317-06030-00. Price: $6.49 |
| 6 |
B74-F6301-00-00 |
THROTTLE CABLE ASSY Price: $57.99 |
| 7 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 8 |
92017-05016-00 |
BOLT, BUTTON HEAD Price: $8.49 |
| 9 |
B74-F637G-00-00 |
HOLDER, WIRE Price: $1.65 |
| 10 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 11 |
B74-F6280-00-00 |
REAR VIEW MIRROR ASSY (LEFT) Price: $34.99 |
| 12 |
B74-F6290-00-00 |
REAR VIEW MIRROR ASSY (RIGHT) Price: $34.99 |
| 13 |
B74-F6144-00-00 |
COVER, HANDLEBAR LOWER 1 Price: $35.99 |
| 14 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 15 |
90183-06818-00 |
NUT, SPRING Price: $0.80 |
| 16 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 17 |
B74-F6213-00-00 |
COVER, UPPER Price: $29.99 |
| 18 |
90167-05076-00 |
SCREW, TAPPING Price: $2.85 |
| 19 |
90160-05808-00 |
SCREW, ROUND TAPPING Price: $0.55 |
| 20 |
90269-06816-00 |
RIVET Price: $1.70 |
| 22 |
90149-06104-00 |
SCREW Price: $4.95 |
