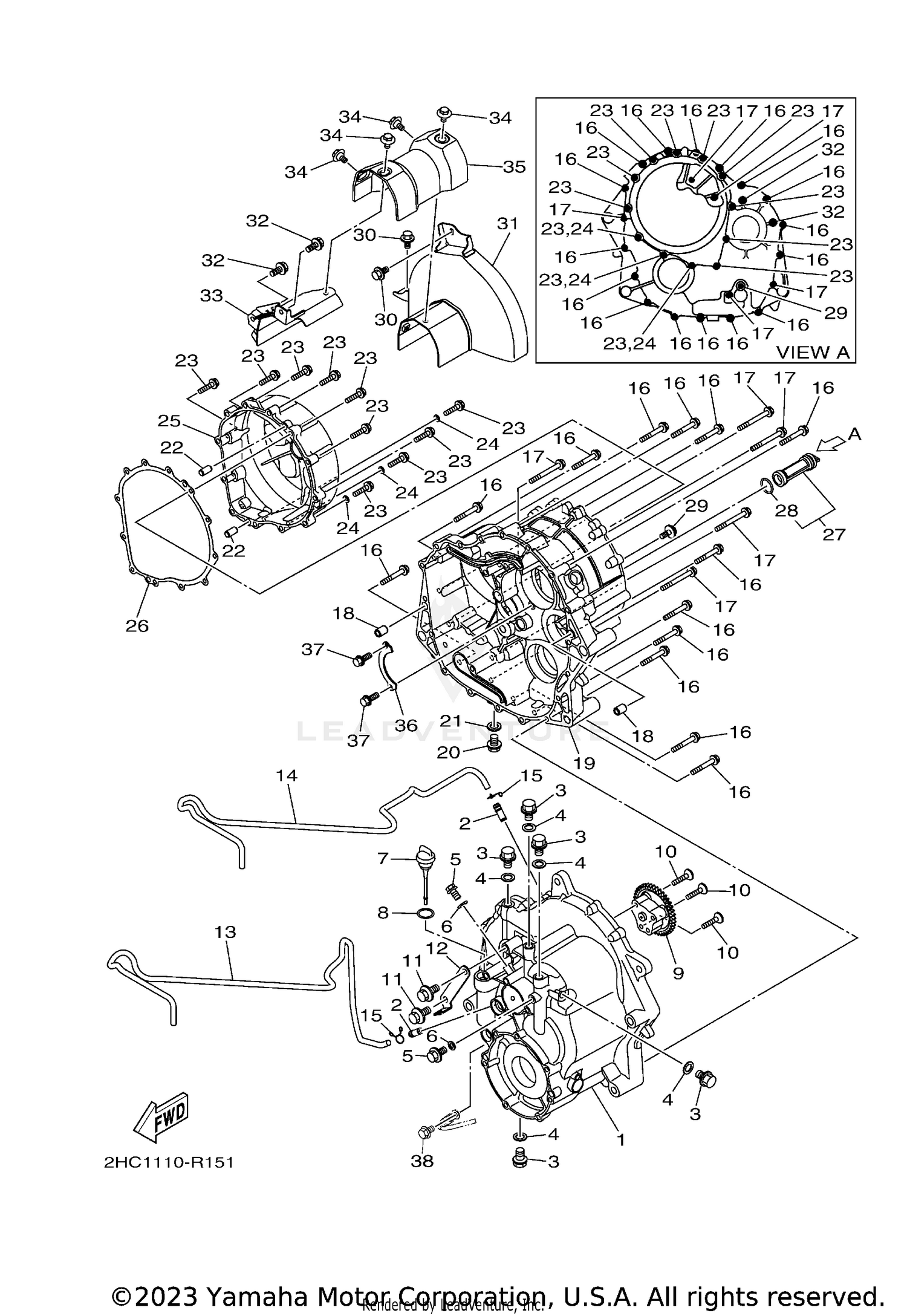

| Ref | Part Number | Description |
|---|
| 1 |
B5J-17541-00-00 |
CASE, TRANSFER 1 Price: $498.99 |
| 2 |
137-13115-01-00 |
CONNECTOR, SUCTION PIPE Price: $4.99 |
| 3 |
90340-10003-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 4 |
90430-10148-00 |
GASKET Price: $5.99 |
| 5 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 6 |
90430-06014-00 |
GASKET Price: $8.60 |
| 7 |
18G-15362-00-00 |
PLUG, OIL LEVEL Price: $28.99 |
| 8 |
93210-21190-00 |
O-RING Price: $8.49 |
| 9 |
2HC-17880-00-00 |
OIL PUMP ASSY Price: $76.99 |
| 10 |
98702-06030-00 |
SCREW, FLAT HEAD Price: $4.30 |
| 11 |
95814-08016-00 |
BOLT, FLANGE This part replaces 95822-08016-00. Price: $10.49 |
| 12 |
2HC-17665-00-00 |
PLATE 1 Price: $5.99 |
| 13 |
90445-08040-00 |
HOSE (L1140) Price: $6.99 |
| 14 |
90445-08049-00 |
HOSE Price: $5.49 |
| 15 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 16 |
95022-06045-00 |
BOLT, FLANGE Price: $4.65 |
| 17 |
95022-06060-00 |
BOLT, FLANGE Price: $9.49 |
| 18 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 19 |
2HC-17542-00-00 |
CASE, TRANSFER 2 Price: $491.99 |
| 20 |
90340-12006-00 |
PLUG, STRAIGHT SCREW Price: $4.55 |
| 21 |
90430-12213-00 |
GASKET Price: $6.49 |
| 22 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 23 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 24 |
90430-06014-00 |
GASKET Price: $8.60 |
| 25 |
2HC-15415-00-00 |
COVER, 1 Price: $58.99 |
| 26 |
2HC-15453-00-00 |
GASKET Price: $15.49 |
| 27 |
2HC-13411-00-00 |
STRAINER, OIL Price: $17.99 |
| 28 |
93210-20802-00 |
O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 29 |
90159-06021-00 |
SCREW, WITH WASHER Price: $3.55 |
| 30 |
90119-06242-00 |
BOLT, WITH WASHER Price: $8.49 |
| 31 |
2HC-2147J-00-00 |
COVER, SHAFT 1 Price: $129.99 |
| 32 |
90119-06242-00 |
BOLT, WITH WASHER Price: $8.49 |
| 33 |
2HC-2147K-00-00 |
COVER, SHAFT 2 Price: $80.99 |
| 34 |
90109-06202-00 |
BOLT Price: $3.10 |
| 35 |
2HC-2131P-00-00 |
COVER PLATE COMP. Price: $17.99 |
| 36 |
2HC-17558-00-00 |
PLATE, BEARING Price: $4.55 |
| 37 |
95022-06016-00 |
BOLT, FLANGE This part replaces 90105-06187-00. Price: $3.90 |
