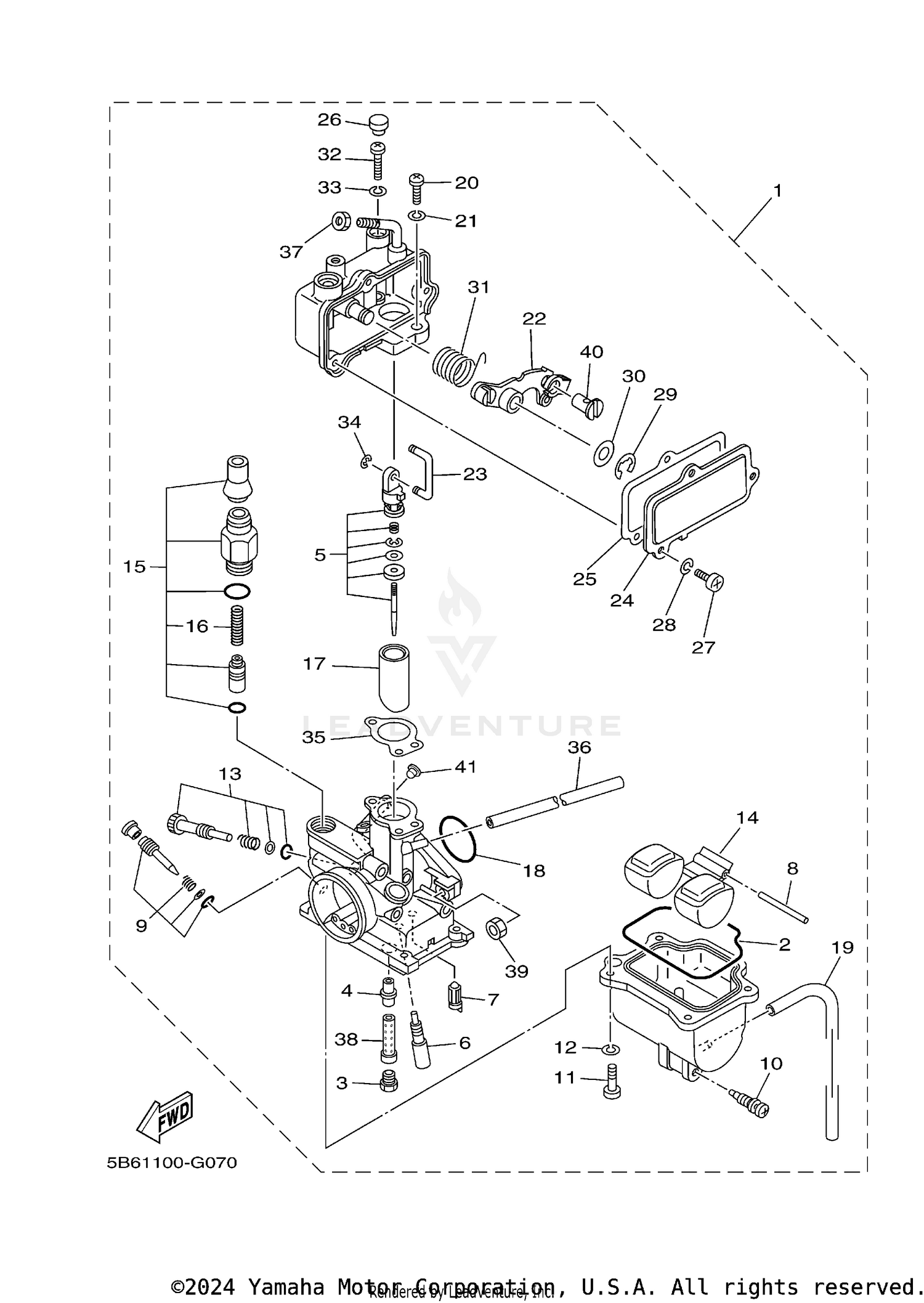

| Ref | Part Number | Description |
|---|
| 1 |
5B6-14101-10-00 |
CARBURETOR ASSY 1 Price: $529.99 |
| 2 |
4GL-14239-00-00 |
SEAL Price: $19.99 |
| 3 |
18A-14143-19-00 |
JET, MAIN (#95) Price: $8.49 |
| 4 |
5KA-14141-13-00 |
NOZZLE, MAIN Price: $38.99 |
| 5 |
5B6-1490J-00-00 |
NEEDLE SET Price: $36.99 |
| 6 |
2MM-14142-12-00 |
JET, PILOT (#12.5) Price: $15.49 |
| 7 |
5DW-14150-00-00 |
NEEDLE ASSY Price: $56.99 |
| 8 |
353-14186-00-00 |
PIN, FLOAT Price: $8.49 |
| 9 |
5HN-14104-00-00 |
AIR SCREW SET Price: $19.99 |
| 10 |
12R-14191-00-00 |
PLUG, DRAIN Price: $17.99 |
| 11 |
98507-04014-00 |
SCREW, PAN HEAD Price: $2.00 |
| 12 |
92907-04100-00 |
WASHER, SPRING Price: $9.49 |
| 13 |
5DV-14103-00-00 |
THROTTLE SCREW SET Price: $34.99 |
| 14 |
5HN-14985-00-00 |
FLOAT Price: $70.99 |
| 15 |
5HN-1410A-00-00 |
STARTER SET Price: $65.99 |
| 16 |
5HN-14135-00-00 |
COIL, SPRING Price: $5.49 |
| 17 |
5B6-14112-25-00 |
VALVE, THROTTLE 1 Price: $9.49 |
| 18 |
241-14147-00-00 |
O-RING Price: $9.49 |
| 19 |
4GL-14348-00-00 |
PIPE 1 Price: $11.99 |
| 20 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 98507-04012-00. Price: $4.20 |
| 21 |
92907-04100-00 |
WASHER, SPRING Price: $9.49 |
| 22 |
4GL-14292-10-00 |
BRACKET 2 Price: $73.99 |
| 23 |
4GL-14577-10-00 |
ROD Price: $14.49 |
| 24 |
4GL-14293-00-00 |
COVER 1 Price: $21.99 |
| 25 |
4GL-14536-10-00 |
GASKET Price: $14.49 |
| 26 |
3F7-14991-00-00 |
PLUG, SCREW Price: $6.49 |
| 27 |
98507-04010-00 |
SCREW, PAN HEAD Price: $3.55 |
| 28 |
92907-04100-00 |
WASHER, SPRING Price: $9.49 |
| 29 |
812-14137-00-00 |
CLIP Price: $8.49 |
| 30 |
1A8-14953-00-00 |
WASHER Price: $4.35 |
| 31 |
4GL-14275-01-00 |
SPRING Price: $12.49 |
| 32 |
98517-04016-00 |
SCREW, PAN HEAD This part replaces 98507-04016-00. Price: $9.49 |
| 33 |
92907-04100-00 |
WASHER, SPRING Price: $9.49 |
| 34 |
256-14919-00-00 |
CLIP Price: $7.49 |
| 35 |
1V3-14126-00-00 |
GASKET Price: $25.99 |
| 36 |
5YT-14193-00-00 |
PIPE Price: $18.99 |
| 37 |
522-14161-00-00 |
NUT, CABLE ADJUSTING Price: $10.99 |
| 38 |
5HN-14148-00-00 |
PIPE Price: $43.99 |
| 39 |
5DV-14594-10-00 |
NUT Price: $4.80 |
| 40 |
4GL-14155-10-00 |
GUIDE, CABLE Price: $24.99 |
