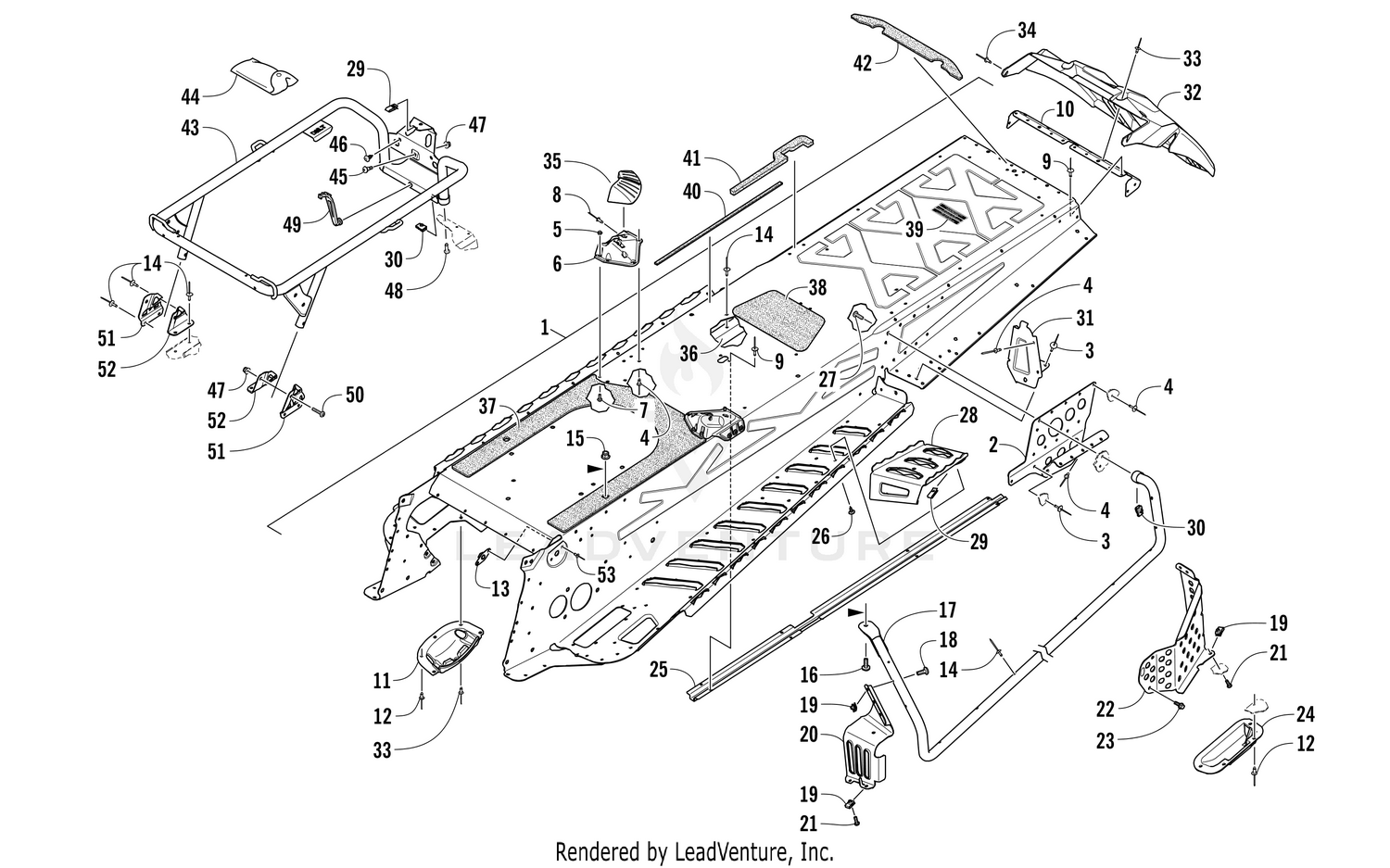

TUNNEL AND REAR RACK ASSEMBLY [104290]

Parts (62)

Ref	Part Number	Description
0	3707-135	Complete Chassis Assembly Price: $1,508.95
2	2707-090	Bracket, Mounting - Suspension - Right - Black Price: $52.95
2	2707-091	Bracket, Mounting - Suspension - Left - Black Price: $52.95
3	8060-686	Rivet - Zinc Price: $0.46
4	1623-241	Rivet Price: $2.05
5	8422-502	Nut, Lock Price: $0.48
6	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
6	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
7	8476-512	Screw, Machine Price: $1.45
8	1623-257	Rivet Price: $2.30
9	8060-482	Rivet Price: $0.48
10	2707-633	End Cap, Tunnel - Black Price: $47.95
11	1607-109	Protector, Chain Case Price: $5.90
12	8061-708	Rivet Price: $1.08
13	0608-631	Plate, Retaining Price: $30.95
14	8060-706	Rivet Price: $0.46
15	8427-802	Nut, Lock Price: $0.58
16	8476-820	Screw, Machine Price: $1.08
17	1707-602	Support, Footrest - Right - Black Price: $237.95
17	1707-603	Support, Footrest - Left - Black Price: $237.95
18	8468-535	Screw, Machine Price: $1.07
19	1623-637	Clip, U-Nut Price: $2.61
20	0607-996	Footrest - Right Price: $28.95
20	0607-997	Footrest - Left Price: $28.95
21	8470-516	Screw, Machine Price: $0.35
22	1607-346	Shield, Brake Disc Price: $52.95
23	8408-613	Screw, Cap Price: $1.66
24	0607-351	Protector, Brake Disc Price: $13.28
25	0630-301	Protector, Harness - Taillight Extension Price: $52.95
26	1623-129	Screw, Self-Tapping Price: $0.29
27	8477-620	Screw, Machine Price: $0.58
28	1607-288	Footrest, Passenger - Right Price: $78.95
28	1607-289	Footrest, Passenger - Left Price: $78.95
29	1623-030	Clip, U-Nut Price: $1.08
30	0423-577	Clip, U-Nut Price: $0.46
31	2707-636	Close Off, Running Board - Right - Black Price: $53.95
31	2707-637	Close Off, Running Board - Left - Black Price: $53.95
32	6606-486	Snowflap Price: $35.95
33	8061-706	Rivet Price: $1.07
34	8061-506	Rivet Price: $1.07
35	6606-664	Support, Gas Tank - Right Price: $21.77
35	6606-665	Support, Gas Tank - Left Price: $21.77
36	1607-689	Protector, Tunnel Price: $71.95
37	0617-750	Pad, Fuel Tank - Front Price: $42.95
38	6606-935	Pad, Fuel Tank - Center Price: $36.95
39	2621-316	Decal, Capacity - Storage Box Price: $14.49
40	0617-743	Foam, Side Panel Price: $7.23
41	0617-748	Foam, Rack - Right Price: $21.77
41	0617-749	Foam, Rack - Left Price: $21.77
42	0617-744	Foam, Fascia - Rear Price: $13.28
43	5706-635	Rack, Rear - Black Price: $592.95
44	0744-064	Kit, Tool Price: $78.95
45	0423-356	SCREW, SHOULDER-M6-1.0 X 22 RIE BLK Price: $2.39
46	2623-017	Screw, Self-Tapping Price: $1.45
47	8427-602	Nut, Hex Price: $0.23
48	2623-059	Screw, Machine Price: $2.17
49	6606-392	Strap, Hold Down Price: $3.02
50	8468-635	Screw, Machine Price: $3.38
51	5706-450	Bracket, Mounting - Rack - Outer - Right - Black Price: $47.95
51	5706-451	Bracket, Mounting - Rack - Outer - Left - Black Price: $47.95
52	5706-448	Bracket, Mounting - Rack - Inner - Right - Black Price: $47.95
52	5706-449	Bracket, Mounting - Rack - Inner - Left - Black Price: $47.95
