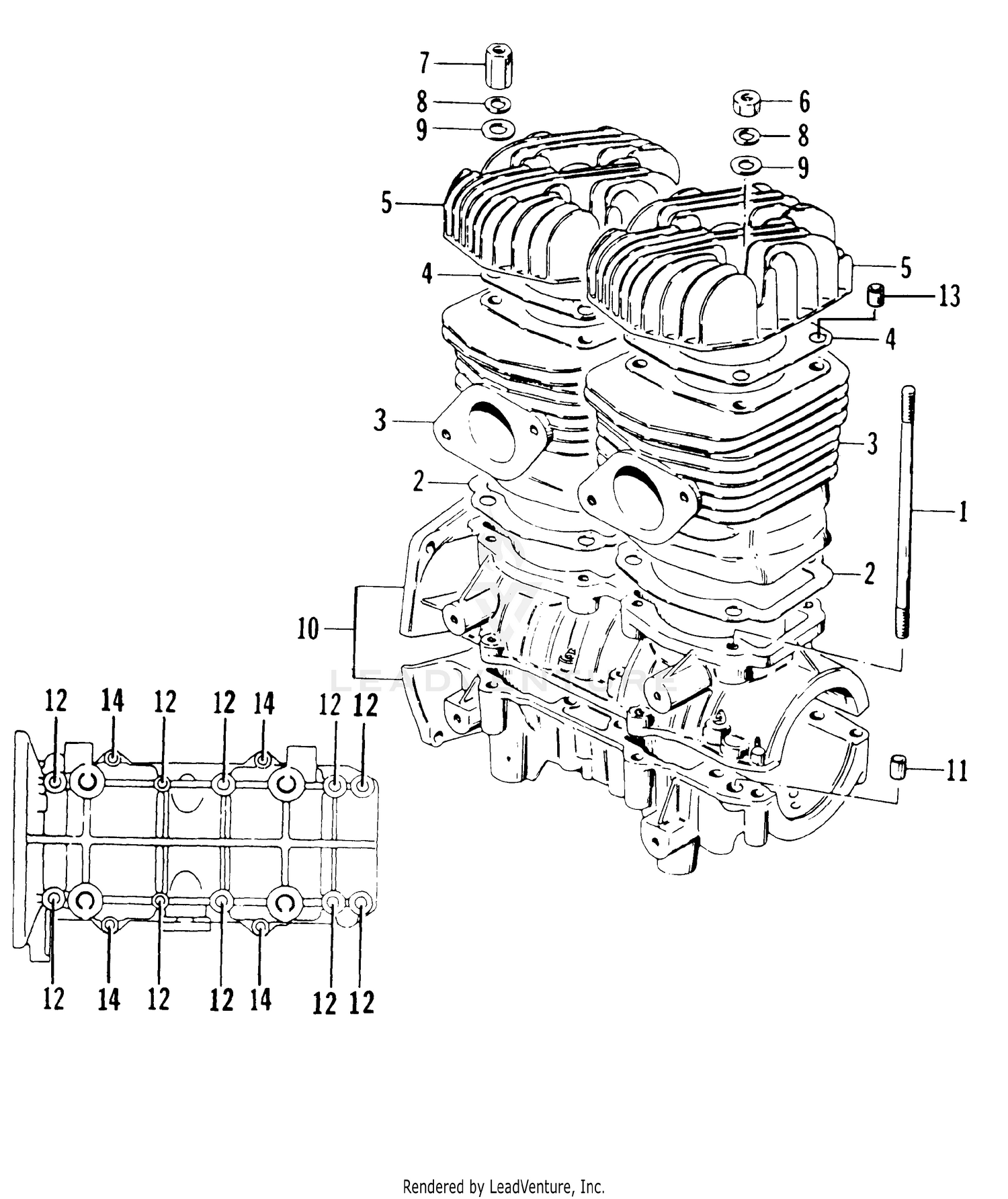

CRANKCASE AND CYLINDER [64038]

Parts (11)

Ref	Part Number	Description
1	3003-002	BOLT, CYL STUD,8MM Price: $11.17
2	3003-501	Gasket, Cylinder Price: $21.29
3	3007-559	CYLINDER ASSY. Price: $564.95
4	3004-821	GASKET,HEAD- 440 F/C Price: $36.95
5	3005-322	HEAD, CYLINDER(440FC) Price: $277.95
6	3007-416	Nut Price: $2.69
7	3004-872	Nut (HI 22.5) Price: $3.19
8	3004-280	Washer, Lock, 8MM Price: $1.67
9	3423-204	Washer Price: $1.29
10	3004-873	CRANKCASE (440 FC) Price: $1,027.03
13	3004-822	Pin, Dowel Price: $3.81
