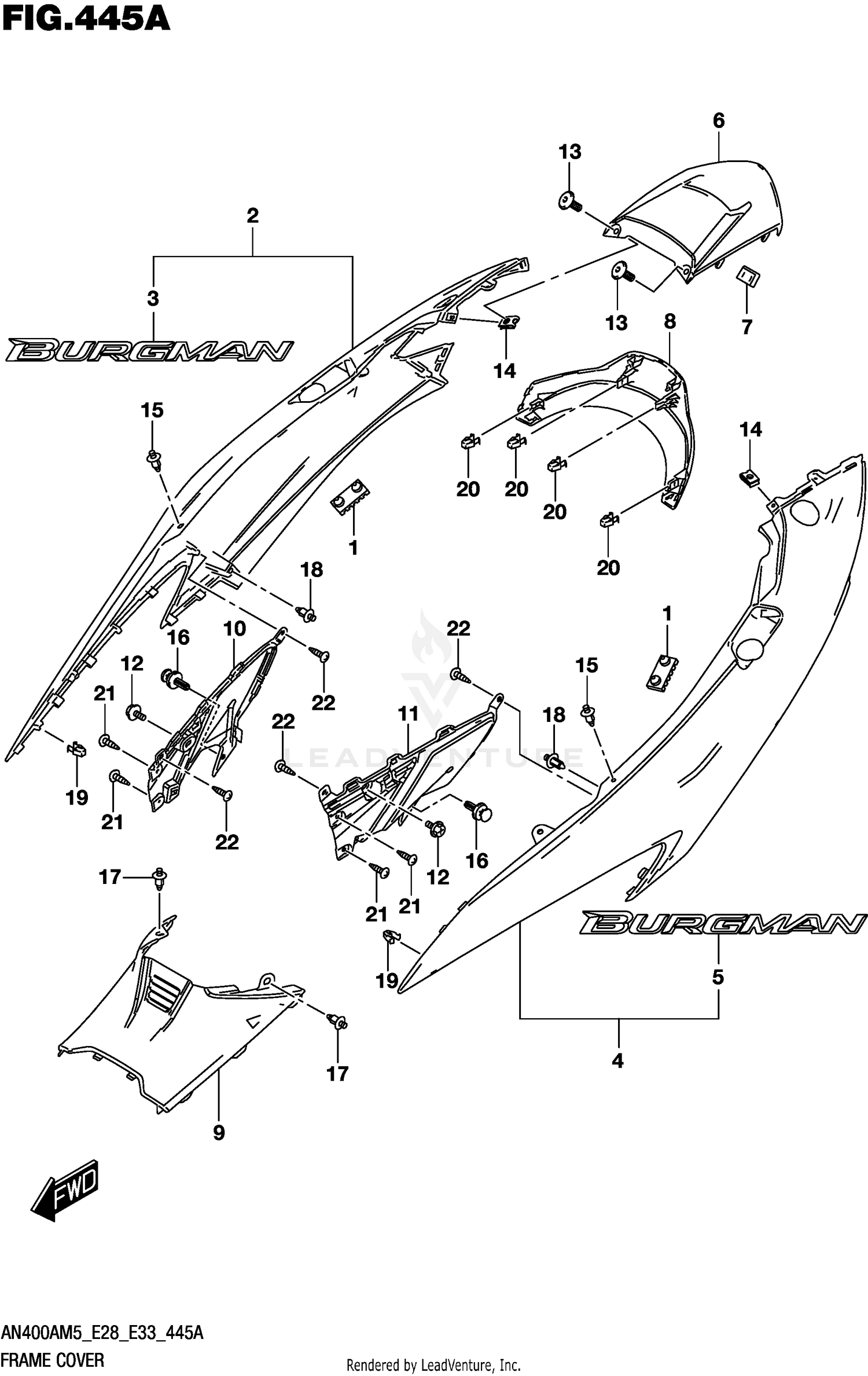

FRAME COVER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 68131-12JA1 | EMBLEM,FRAME CO This part replaces 68131-05H10. Price: $25.38 |
| 5 | 68131-12JA1 | EMBLEM,FRAME CO This part replaces 68131-05H10. Price: $25.38 |
| 7 | 47312-19K00 | CUSHION, FRAME COVER CTR Price: $7.29 |
| 9 | 47351-19K00 | COVER, FRAME FRONT Price: $56.73 |
| 10 | 48125-19K00 | COVER,FOOTBOARD RR RH Price: $31.47 |
| 11 | 48126-19K00 | COVER,FOOTBOARD RR LH Price: $31.47 |
| 12 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 13 | 09139-05091 | SCREW (5X13) Price: $2.45 |
| 14 | 09148-05052 | NUT (M5) Price: $4.10 |
| 15 | 09409-06314-5PK | CLIP This part replaces 09409-06314. Price: $3.23 |
| 16 | 09409-06328 | CLIP Price: $3.93 |
| 17 | 09409-08308 | CLIP (7.6X25.7) Price: $2.79 |
| 18 | 09409-08308 | CLIP (7.6X25.7) Price: $2.79 |
| 19 | 09409-08326 | CLIP (10.5X14.3) Price: $2.87 |
| 20 | 09409-08326 | CLIP (10.5X14.3) Price: $2.87 |
| 21 | 03541-0512A | SCREW Price: $1.65 |
