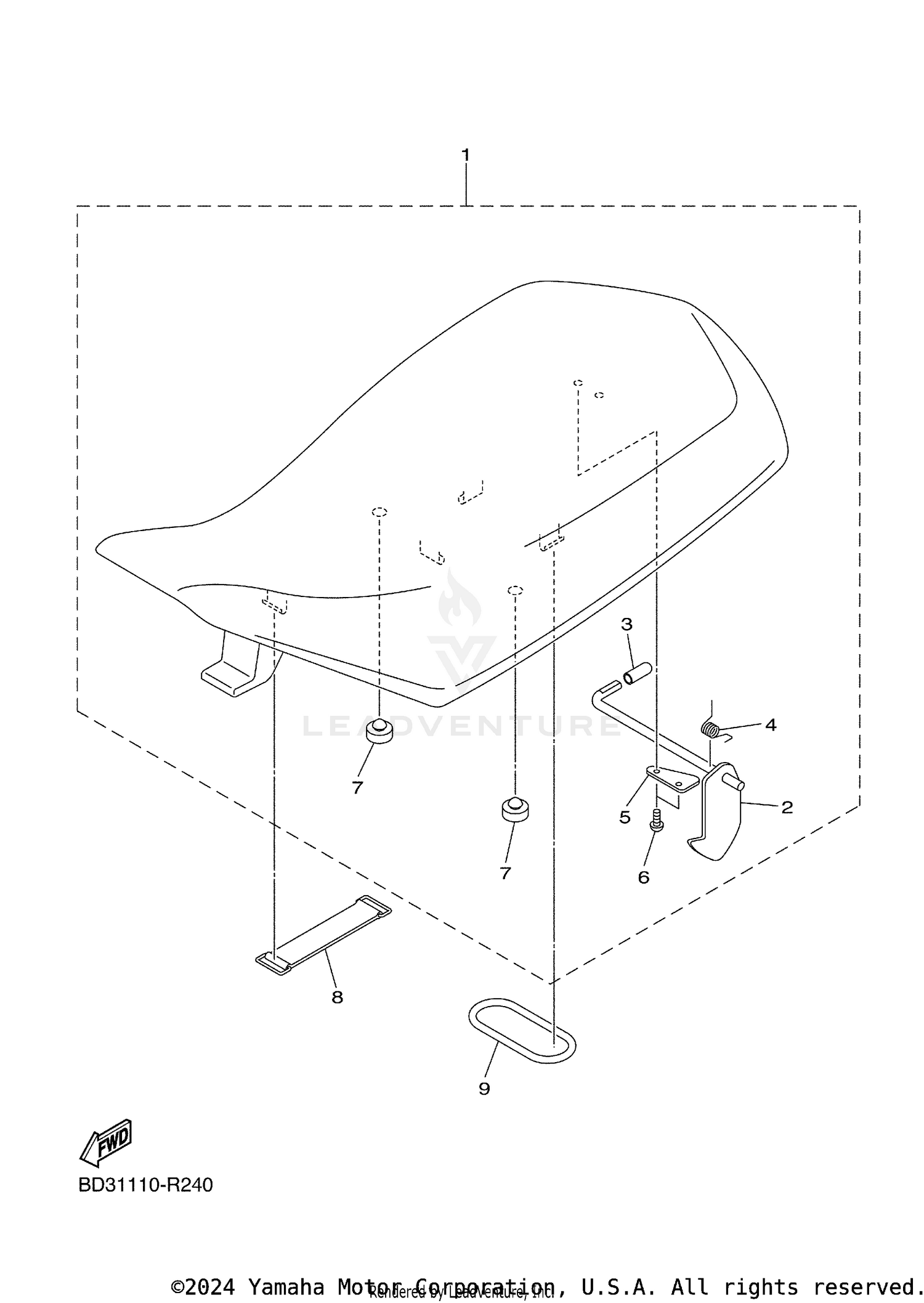

SEAT
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BD3-F4710-20-00 | SINGLE SEAT ASSY This part replaces BD3-F4710-10-00. Price: $426.99 |
| 2 | BD3-F4760-10-00 | SEAT LEVER ASSY Price: $50.99 |
| 3 | BD3-F476M-10-00 | CAP,CASING This part replaces BD3-F476M-00-00. Price: $5.49 |
| 4 | BD3-F4758-10-00 | SPRING Price: $6.49 |
| 5 | BD3-F4775-10-00 | BRACKET, SEAT LEVER Price: $32.99 |
| 6 | BD3-F11C5-10-00 | SCREW 1 Price: $4.30 |
| 7 | BD3-F7114-00-00 | STOPPER, MAIN STAND Price: $10.49 |
| 8 | BD3-F4398-00-00 | BAND 1 Price: $10.49 |
