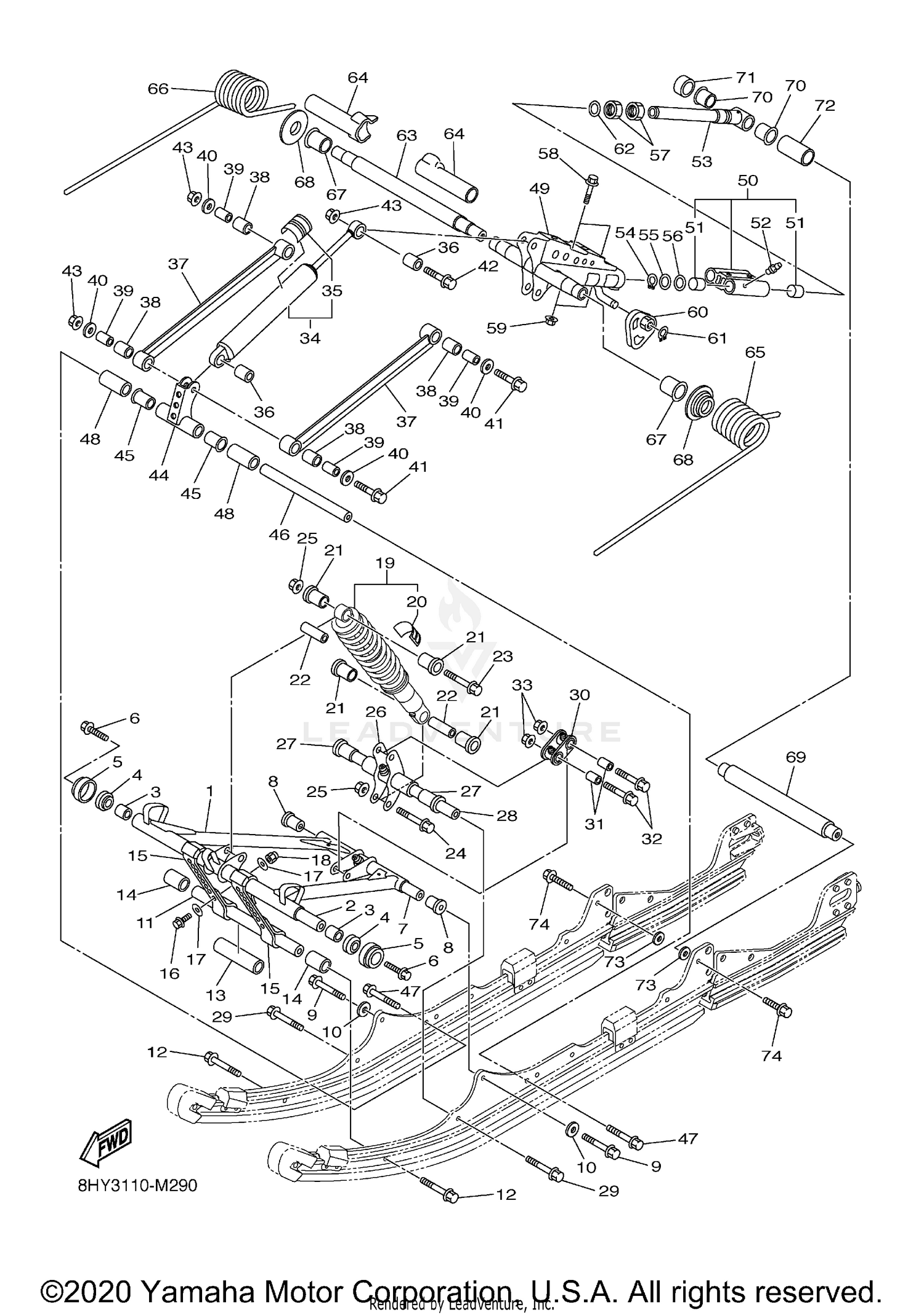

| Ref | Part Number | Description |
|---|
| 1 |
8HP-47331-00-00 |
ARM, PIVOT 1 Price: $326.99 |
| 2 |
8HF-47465-00-00 |
SHAFT 1 Price: $104.99 |
| 3 |
90383-23002-00 |
BUSH, FORMED Price: $19.49 |
| 4 |
93108-37011-00 |
OIL SEAL Price: $8.49 |
| 5 |
8HF-47341-00-00 |
SPACER Price: $28.99 |
| 6 |
90109-10032-00 |
BOLT This part replaces 90109-10030-00. Price: $9.49 |
| 7 |
8ES-47486-00-00 |
SHAFT 4 Price: $44.99 |
| 8 |
90387-10022-00 |
COLLAR Price: $20.99 |
| 9 |
90105-10209-00 |
BOLT, FLANGE This part replaces 90105-10329-00. Price: $9.49 |
| 10 |
90201-10072-00 |
WASHER, PLATE Price: $4.20 |
| 11 |
8ES-47485-00-00 |
SHAFT 3 Price: $60.99 |
| 12 |
90105-10209-00 |
BOLT, FLANGE Price: $9.49 |
| 13 |
90387-19002-00 |
COLLAR Price: $8.49 |
| 14 |
90387-19001-00 |
COLLAR Price: $9.49 |
| 15 |
8HF-47495-00-00 |
STOPPER 1 Price: $69.99 |
| 16 |
97017-06025-00 |
BOLT This part replaces 97002-06025-00. Price: $4.55 |
| 17 |
90201-06081-00 |
WASHER, PLATE Price: $9.49 |
| 18 |
95707-06300-00 |
NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 19 |
8HP-47481-00-00 |
SHOCK ABSORBER 2 Price: $437.99 |
| 20 |
4AA-22259-60-00 |
LABEL, WARNING Price: $7.49 |
| 21 |
90381-14101-00 |
BUSH, SOLID Price: $9.49 |
| 22 |
90387-105G5-00 |
COLLAR Price: $11.49 |
| 23 |
95812-10045-00 |
BOLT, FLANGE Price: $5.49 |
| 24 |
90101-10738-00 |
BOLT Price: $8.49 |
| 25 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 26 |
8HF-47349-01-00 |
BRACKET, ARM PIVOT Price: $63.99 |
| 27 |
90386-20001-00 |
BUSH Price: $12.49 |
| 28 |
8GN-47487-00-00 |
SHAFT 5 Price: $107.99 |
| 29 |
90105-10209-00 |
BOLT, FLANGE Price: $9.49 |
| 30 |
8FK-47416-01-00 |
BRACKET 2 Price: $55.99 |
| 31 |
90387-10024-00 |
COLLAR Price: $22.99 |
| 32 |
95812-10045-00 |
BOLT, FLANGE Price: $5.49 |
| 33 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 34 |
8HP-47480-01-00 |
SHOCK ABSORBER This part replaces 8HP-47480-00-00. Price: $421.99 |
| 35 |
4AA-22259-60-00 |
LABEL, WARNING Price: $7.49 |
| 36 |
90387-10023-00 |
COLLAR Price: $21.99 |
| 37 |
8HF-47494-00-00 |
ROD, RELAY Price: $47.99 |
| 38 |
90386-16001-00 |
BUSH Price: $13.49 |
| 39 |
90387-101A1-00 |
COLLAR Price: $4.85 |
| 40 |
90201-10043-00 |
WASHER, PLATE Price: $2.65 |
| 41 |
95817-10090-00 |
BOLT, FLANGE This part replaces 95812-10090-00. Price: $10.49 |
| 42 |
95812-10040-00 |
BOLT, FLANGE Price: $9.49 |
| 43 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 44 |
8FK-47349-10-00 |
BRACKET, ARM PIVOT Price: $49.99 |
| 45 |
90386-20001-00 |
BUSH Price: $12.49 |
| 46 |
8HP-47487-00-00 |
SHAFT 5 Price: $39.99 |
| 47 |
90105-10209-00 |
BOLT, FLANGE Price: $9.49 |
| 48 |
8HP-47319-00-00 |
COLLAR Price: $37.99 |
| 49 |
8HF-47332-00-00 |
ARM, PIVOT 2 Price: $281.99 |
| 50 |
8ES-4745D-00-00 |
STOPPER, CONTROL 1 Price: $139.99 |
| 51 |
90380-24001-00 |
BUSH, SOLID Price: $11.49 |
| 52 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 53 |
8HF-4745A-00-00 |
ROD, CONTROL 1 Price: $143.99 |
| 54 |
93410-24092-00 |
CIRCLIP Price: $2.10 |
| 55 |
90201-24015-00 |
WASHER, PLATE Price: $8.49 |
| 56 |
90202-25001-00 |
WASHER, PLATE Price: $1.65 |
| 57 |
8ES-48142-00-00 |
STOPPER, ADJUSTING NUT Price: $31.99 |
| 58 |
95817-10055-00 |
BOLT, FLANGE This part replaces 95812-10055-00. Price: $6.49 |
| 59 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 60 |
8ES-47447-00-00 |
HOOK 2 Price: $21.99 |
| 61 |
99009-14400-00 |
CIRCLIP Price: $3.59 |
| 62 |
90202-25002-00 |
WASHER, PLATE Price: $12.49 |
| 63 |
8FM-47475-01-00 |
SHAFT 2 Price: $248.99 |
| 64 |
8HF-47445-00-00 |
PROTECTOR Price: $39.99 |
| 65 |
8FM-47473-00-00 |
SPRING, REAR 1 (K=2800NMM/DEG) Price: $266.99 |
| 66 |
8FM-47474-00-00 |
SPRING, REAR 2 (K=2800NMM/DEG) Price: $266.99 |
| 67 |
90381-28108-00 |
BUSH, SOLID Price: $17.49 |
| 68 |
8ES-47467-00-00 |
PLATE, GUIDE Price: $19.99 |
| 69 |
8HF-47337-00-00 |
SHAFT, PIVOT Price: $72.99 |
| 70 |
90386-25001-00 |
BUSH Price: $9.49 |
| 71 |
90387-26002-00 |
COLLAR Price: $37.99 |
| 72 |
90387-26003-00 |
COLLAR Price: $8.49 |
| 73 |
90201-10028-00 |
WASHER, PLATE Price: $8.49 |
