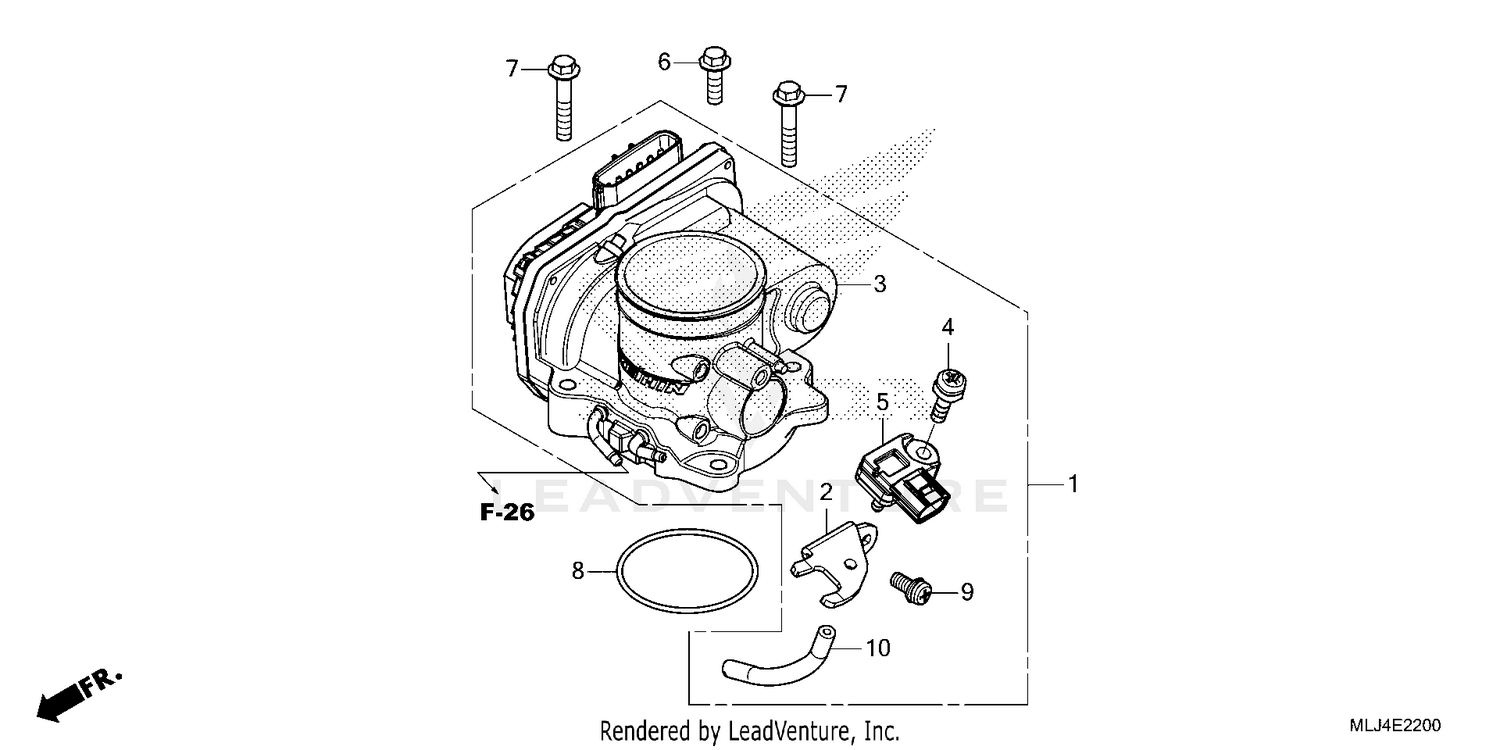

THROTTLE BODY
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16400-MKC-A01 | BODY ASSY., THROTTLE (L1A A) Price: $950.16 |
| 2 | 16402-MKC-A00 | STAY, MAP SENSOR Price: $7.13 |
| 3 | 16410-MKC-A01 | BODY SET Price: $513.18 |
| 4 | 16542-MEL-003 | BOLT-WASHER (6X18) Price: $3.78 |
| 5 | 46401-TM8-A01 | SENSOR A, MASTER POWER PRESSURE Price: $212.30 |
| 6 | 90006-GHB-640 | BOLT, FLANGE (6X18) (NSHF) Price: $2.04 |
| 7 | 90017-GHB-760 | BOLT, FLANGE (6X32) (NSHF) Price: $2.69 |
| 8 | 91391-MKC-A01 | O-RING (55.3X2.4) Price: $6.95 |
| 9 | 93892-06014-18 | SCREW-WASHER (6X14) Price: $1.02 |
