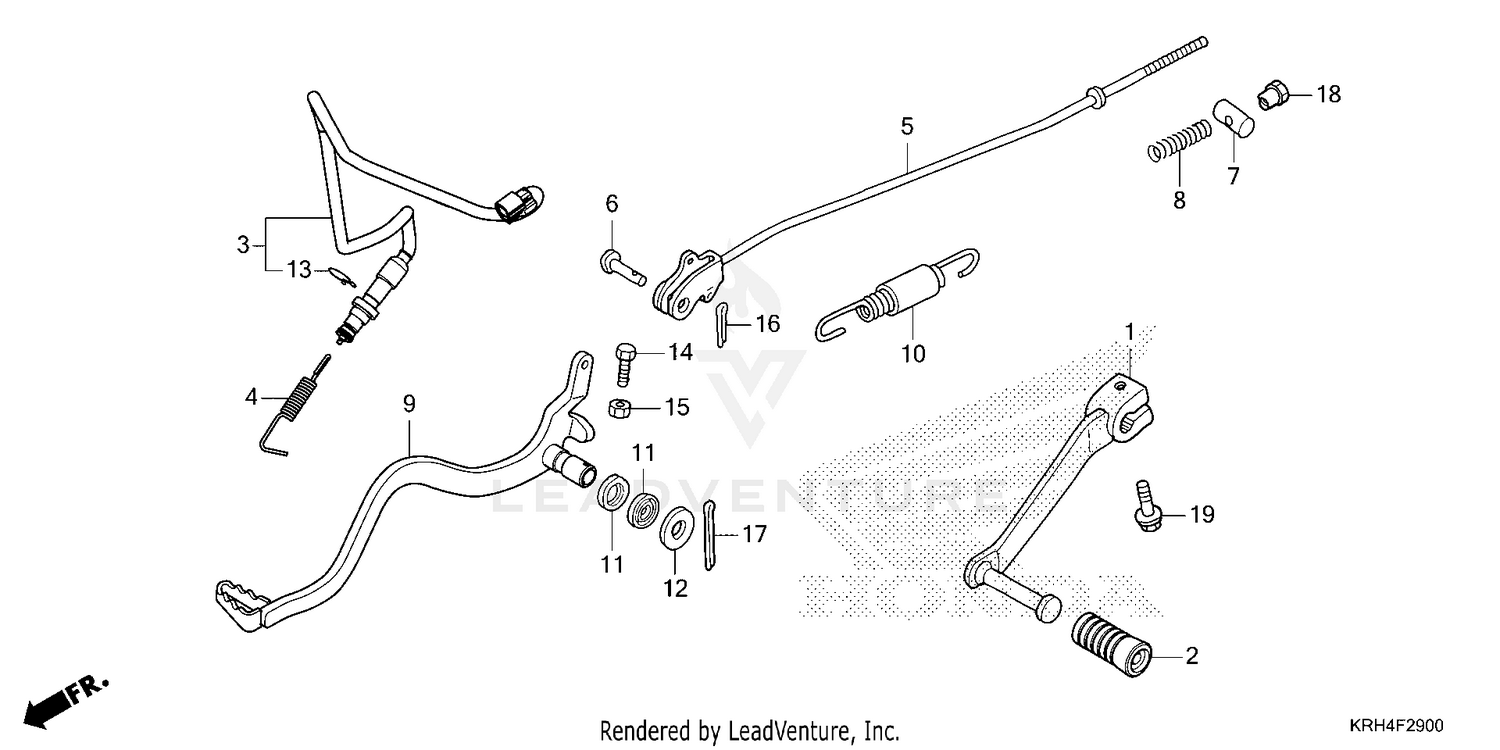

| Ref | Part Number | Description |
|---|
| 1 |
24710-KRH-900 |
PEDAL, GEARSHIFT Price: $41.80 |
| 2 |
24781-KRH-900 |
RUBBER, CHANGE PEDAL Price: $2.98 |
| 3 |
35350-KRH-J01 |
SW ASSY., RR. STOP Price: $7.64 |
| 4 |
35357-KRH-900 |
SPRING, STOP SWITCH Price: $9.39 |
| 5 |
43451-KRH-780 |
ROD, RR. BRAKE Price: $15.56 |
| 6 |
43455-KRH-900 |
PIN C, JOINT Price: $2.64 |
| 7 |
43456-KRH-900 |
JOINT B, BRAKE ARM Price: $2.05 |
| 8 |
43472-KB9-750 |
SPRING A, BRAKE ROD Price: $3.89 |
| 9 |
46500-KRH-J00 |
PEDAL, BRAKE Price: $53.95 |
| 10 |
46513-KRH-900 |
SPRING SET, BRAKE PEDAL Price: $12.24 |
| 11 |
46525-KRH-900 |
DUST SEAL (17X20X2.5) Price: $3.49 |
| 12 |
90501-KRH-900 |
WASHER, BUSH Price: $1.92 |
| 13 |
90601-KAF-003 |
CLIP, SWITCH COVER Price: $3.05 |
| 14 |
92101-06020-0A |
BOLT, HEX. (6X20) BOLT, FLANGE (6X20) Price: $1.08 |
| 15 |
94001-06200-0S |
NUT, HEX. (6MM) Price: $1.37 |
| 16 |
94201-20120 |
PIN, COTTER (2.0X12) Price: $1.08 |
| 17 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.08 |
| 18 |
95015-42000 |
NUT B, BRAKE ROD ADJUSTING Price: $2.20 |
