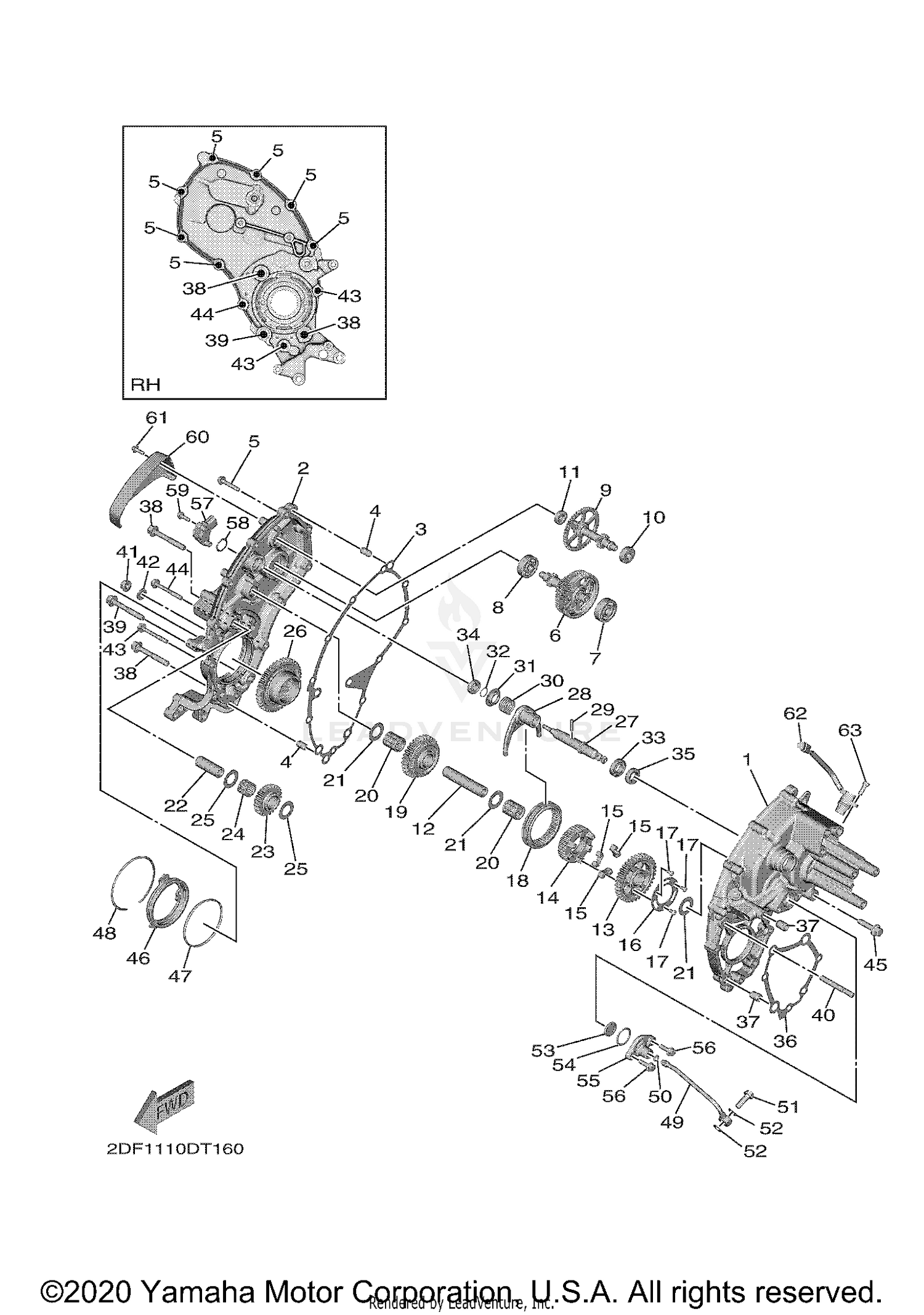

| Ref | Part Number | Description |
|---|
| 1 |
2DF-17541-00-00 |
CASE, TRANSFER 1 Price: $286.99 |
| 2 |
2DF-15417-00-00 |
COVER, CAP Price: $166.99 |
| 3 |
2DF-15457-00-00 |
GASKET Price: $37.99 |
| 4 |
99530-10116-00 |
PIN, DOWEL Price: $4.40 |
| 5 |
90110-06403-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.75 |
| 6 |
2DF-176B0-00-00 |
REDUCTION GEAR ASSY 1 Price: $214.99 |
| 7 |
93306-30101-00 |
BEARING Price: $39.99 |
| 8 |
93306-30003-00 |
BEARING (B6300Z) This part replaces 93306-30002-00. Price: $45.99 |
| 9 |
2DF-176C0-00-00 |
REDUCTION GEAR ASSY. 2 Price: $144.99 |
| 10 |
93306-00013-00 |
BEARING Price: $38.99 |
| 11 |
93306-90004-00 |
BEARING Price: $42.99 |
| 12 |
2DF-1761A-00-00 |
SHAFT 1 Price: $17.49 |
| 13 |
2DF-17841-00-00 |
GEAR, DRIVEN Price: $129.99 |
| 14 |
2DF-17622-00-00 |
BOSS Price: $86.99 |
| 15 |
2DF-17655-00-00 |
DAMPER, SLIDER Price: $17.99 |
| 16 |
2DF-16118-00-00 |
PLATE, SIDE 1 Price: $8.49 |
| 17 |
90149-04003-00 |
SCREW Price: $1.60 |
| 18 |
2DF-17285-00-00 |
CLUTCH, DOG Price: $98.99 |
| 19 |
2DF-17143-00-00 |
GEAR, REVERSE PINION 1 Price: $87.99 |
| 20 |
93310-41783-00 |
BEARING Price: $23.99 |
| 21 |
90201-17257-00 |
WASHER, PLATE Price: $8.49 |
| 22 |
2DF-1761E-00-00 |
SHAFT 2 Price: $13.49 |
| 23 |
2DF-1760E-00-00 |
GEAR 2 Price: $35.99 |
| 24 |
93310-41760-00 |
BEARING Price: $10.99 |
| 25 |
90201-17257-00 |
WASHER, PLATE Price: $8.49 |
| 26 |
2DF-17243-00-00 |
GEAR, REVERSE WHEEL 1 Price: $183.99 |
| 27 |
2DF-18155-00-00 |
SHAFT, SHIFT 2 Price: $105.99 |
| 28 |
2DF-18311-00-00 |
FORK, SHIFT 1 Price: $85.99 |
| 29 |
93605-20004-00 |
PIN, DOWEL Price: $0.60 |
| 30 |
90501-121A3-00 |
SPRING, COMPRESSION Price: $2.55 |
| 31 |
2DF-17644-00-00 |
SEAT, SPRING Price: $15.49 |
| 32 |
93440-14155-00 |
CIRCLIP This part replaces 93440-16148-00. Price: $0.80 |
| 33 |
93306-90201-00 |
BEARING Price: $26.99 |
| 34 |
93306-90001-00 |
BEARING Price: $69.99 |
| 35 |
93102-15008-00 |
OIL SEAL Price: $10.49 |
| 36 |
2DF-17929-00-00 |
GASKET 1 Price: $14.49 |
| 37 |
91812-16001-00 |
PIN, DOWEL Price: $8.49 |
| 38 |
2DF-15481-00-00 |
BOLT 1 Price: $4.40 |
| 39 |
2DF-15482-00-00 |
BOLT 2 Price: $6.49 |
| 40 |
90116-08089-00 |
BOLT, STUD Price: $4.55 |
| 41 |
90179-08045-00 |
NUT Price: $0.70 |
| 42 |
90201-094G1-00 |
WASHER, PLATE This part replaces 90201-08366-00. Price: $10.49 |
| 43 |
95812-06050-00 |
BOLT, FLANGE Price: $2.00 |
| 44 |
90105-06220-00 |
BOLT, FLANGE Price: $2.00 |
| 45 |
90119-08171-00 |
BOLT, WITH WASHER Price: $3.95 |
| 46 |
2DF-15359-00-00 |
HOUSING, OIL SEAL Price: $69.99 |
| 47 |
93210-74001-00 |
O-RING Price: $16.49 |
| 48 |
93450-85173-00 |
CIRCLIP Price: $8.49 |
| 49 |
2DF-13191-00-00 |
PIPE, DELIVERY 4 Price: $36.99 |
| 50 |
93210-06010-00 |
O-RING Price: $7.99 |
| 51 |
90401-08015-00 |
BOLT, UNION Price: $47.99 |
| 52 |
90430-08119-00 |
GASKET Price: $7.49 |
| 53 |
2DF-13411-00-00 |
STRAINER, OIL Price: $13.49 |
| 54 |
93210-26001-00 |
O-RING Price: $6.49 |
| 55 |
2DF-13417-00-00 |
COVER, STRAINER Price: $59.99 |
| 56 |
95817-06020-00 |
BOLT, FLANGE Price: $3.50 |
| 57 |
2DF-85899-00-00 |
SENSOR, GEAR POSITION Price: $61.99 |
| 58 |
93210-17008-00 |
O-RING Price: $2.65 |
| 59 |
90110-05038-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 60 |
2DF-17076-00-00 |
COVER Price: $17.99 |
| 61 |
90110-05073-00 |
BOLT, HEXAGON SOCKET HEAD Price: $1.20 |
| 62 |
2DF-83755-01-00 |
SENSOR, SPEED This part replaces 2DF-83755-00-00. Price: $73.99 |
