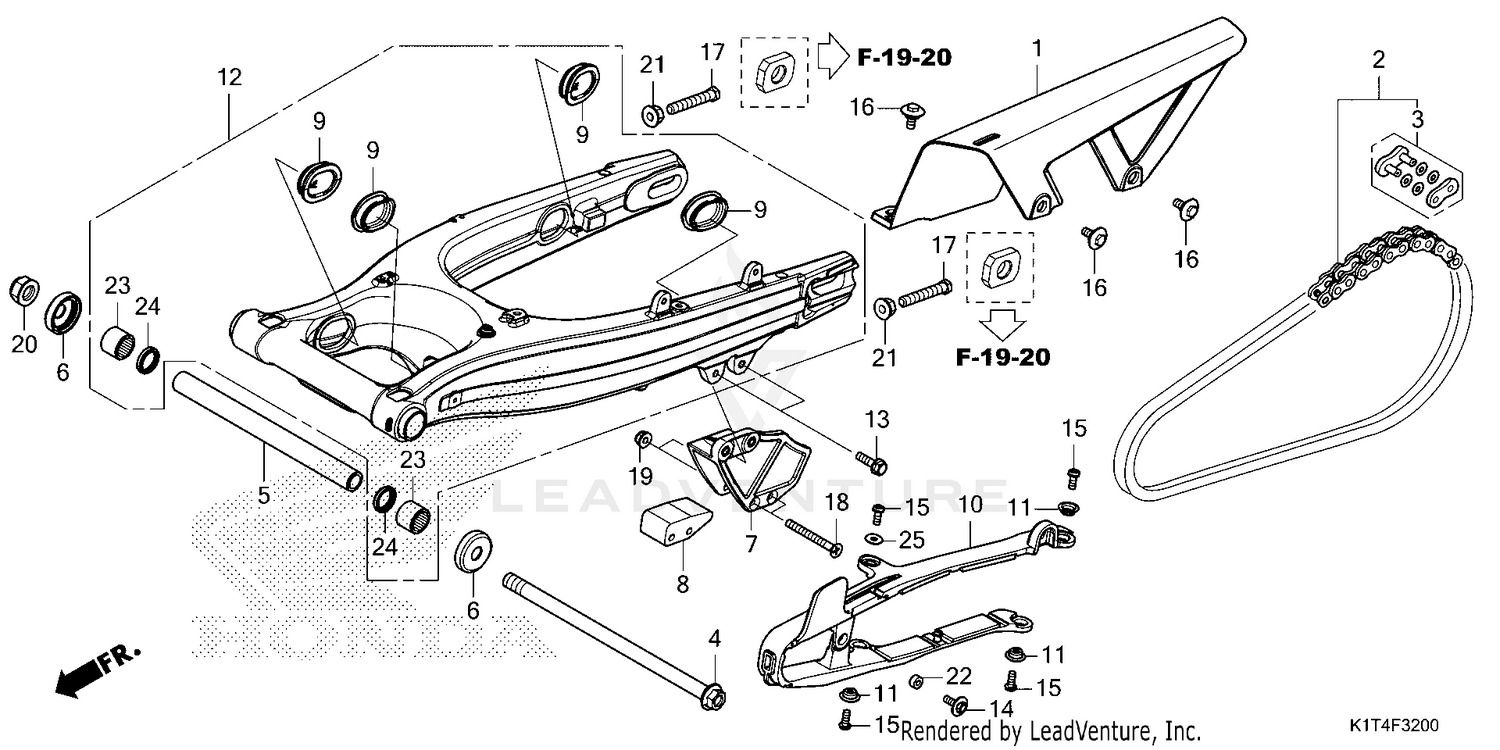

| Ref | Part Number | Description |
|---|
| 1 |
40510-K1T-E10 |
CASE, DRIVE CHAIN Price: $20.36 |
| 2 |
40540-KYJ-902 |
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L) Price: $166.67 |
| 3 |
40545-KYJ-902 |
MASTER LINK (DAIDO) Price: $17.51 |
| 4 |
52101-KZZ-900 |
BOLT, SWINGARM PIVOT Price: $15.49 |
| 5 |
52141-KZZ-900 |
COLLAR, CENTER PIVOT DISTANCE Price: $62.75 |
| 6 |
52144-356-005 |
CAP, SWINGARM DUST SEAL (NOK) Price: $20.98 |
| 7 |
52146-KV6-010 |
GUIDE, CHAIN Price: $40.85 |
| 8 |
52147-KV6-010 |
SLIDER, CHAIN GUIDE Price: $25.16 |
| 9 |
52161-KZZ-900 |
CAP, RR. SWINGARM Price: $3.04 |
| 10 |
52170-K1T-E10 |
SLIDER, CHAIN Price: $107.76 |
| 11 |
52171-MAN-620 |
WASHER, CHAIN SLIDER Price: $3.67 |
| 12 |
52200-K1T-E10 |
SWINGARM SUB-ASSY., RR. Price: $683.55 |
| 13 |
90103-KZZ-900 |
BOLT, FLANGE (6X20) Price: $1.05 |
| 14 |
90107-K28-910 |
BOLT-WASHER (5X16) Price: $2.78 |
| 15 |
90107-MJP-G50 |
SCREW, PAN (5X12) Price: $2.15 |
| 16 |
90111-KZZ-900 |
BOLT, FLANGE (6MM) Price: $0.73 |
| 17 |
90112-KZZ-900 |
BOLT, HEX. (8X47.5) Price: $1.13 |
| 18 |
90115-KZZ-900 |
SCREW, FLAT (6X53) Price: $0.82 |
| 19 |
90301-KGH-901 |
NUT, U (6MM) (FUJI SEIMITSU) Price: $1.58 |
| 20 |
90305-KCJ-951 |
NUT, U (14MM) (FUJI SEIMITSU) Price: $6.71 |
| 21 |
90309-357-000 |
NUT, HEX. (10MM) Price: $4.27 |
| 22 |
90503-K1T-E10 |
COLLAR (5.3X12X5.8) Price: $3.05 |
| 23 |
91070-GC4-601 |
BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT Price: $29.96 |
| 24 |
91254-KS6-003 |
DUST SEAL (20X26X4.5) (ARAI) Price: $11.15 |
