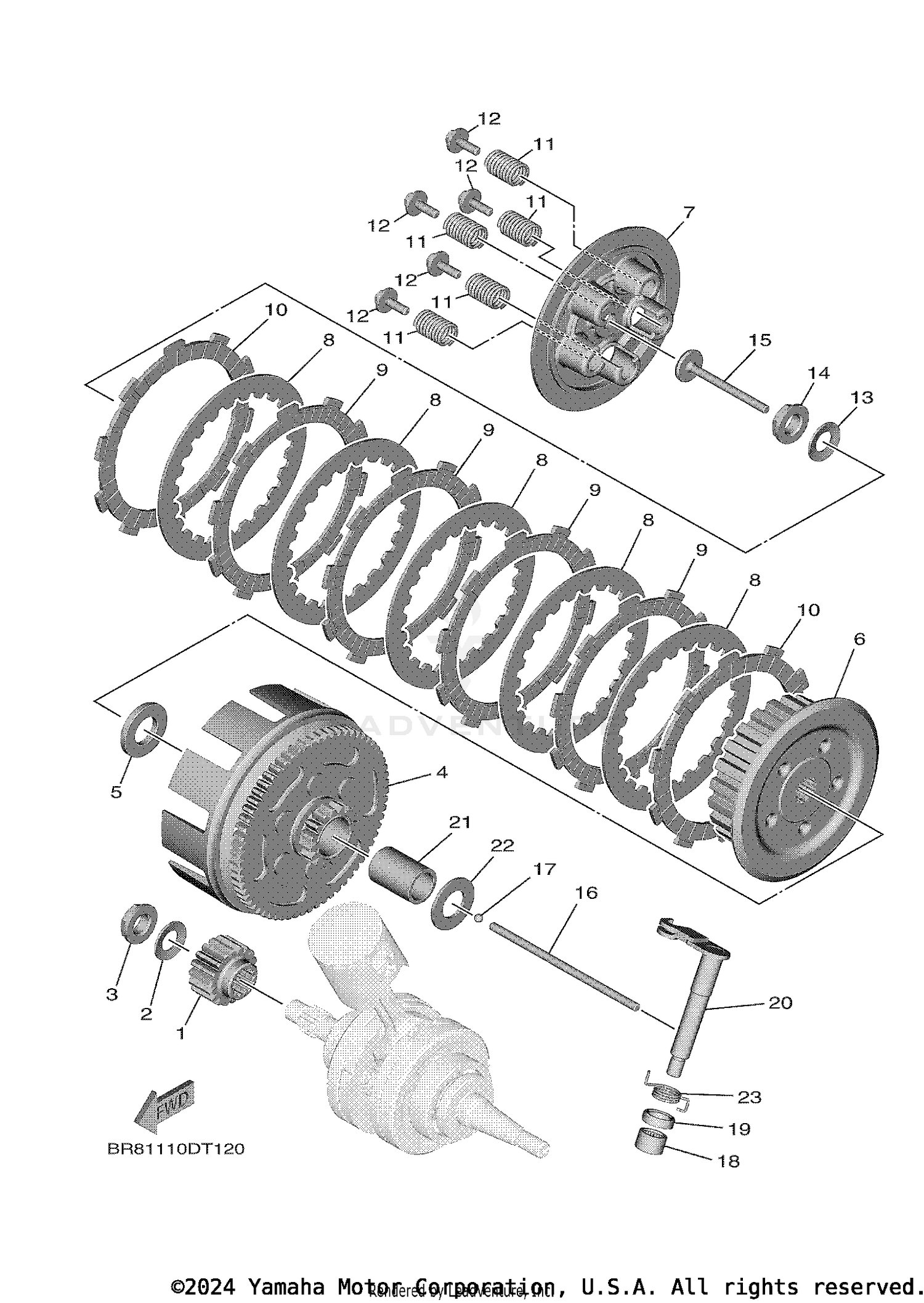

| Ref | Part Number | Description |
|---|
| 1 |
BR8-16111-00-00 |
GEAR, PRIMARY DRIVE Price: $51.99 |
| 2 |
90208-12800-00 |
WASHER, CONICAL SPRING This part replaces 90208-12015-00. Price: $0.75 |
| 3 |
90179-12007-00 |
NUT Price: $8.49 |
| 4 |
5PA-16150-12-00 |
PRIMARY DRIVEN GEA Price: $340.99 |
| 5 |
90201-17558-00 |
WASHER, PLATE Price: $10.49 |
| 6 |
BR8-16371-00-00 |
BOSS, CLUTCH Price: $73.99 |
| 7 |
BR8-16351-00-00 |
PLATE, PRESSURE 1 Price: $39.99 |
| 8 |
131-16324-10-00 |
PLATE, CLUTCH 1 This part replaces 131-16324-00-00. Price: $22.99 |
| 9 |
4ES-16321-00-00 |
PLATE, FRICTION Price: $19.99 |
| 10 |
3XP-16321-00-00 |
PLATE, FRICTION This part replaces 21V-16321-00-00. Price: $21.99 |
| 11 |
90501-204A0-00 |
SPRING, COMPRESSION Price: $9.49 |
| 12 |
90119-05001-00 |
BOLT, WITH WASHER Price: $3.50 |
| 13 |
90208-12800-00 |
WASHER, CONICAL SPRING This part replaces 90208-12015-00. Price: $0.75 |
| 14 |
90179-12007-00 |
NUT Price: $8.49 |
| 15 |
4ES-16356-00-00 |
ROD, PUSH 1 Price: $31.99 |
| 16 |
5PA-16357-00-00 |
ROD, PUSH 2 Price: $34.99 |
| 17 |
93503-16003-00 |
BALL Price: $2.90 |
| 18 |
93315-11206-00 |
BEARING Price: $39.99 |
| 19 |
93102-12224-00 |
OIL SEAL Price: $11.49 |
| 20 |
4ES-16381-00-00 |
PUSH LEVER COMP. Price: $74.99 |
| 21 |
5PA-16181-00-00 |
SPACER 1 Price: $33.99 |
| 22 |
90201-171G6-00 |
WASHER, PLATE Price: $10.49 |
