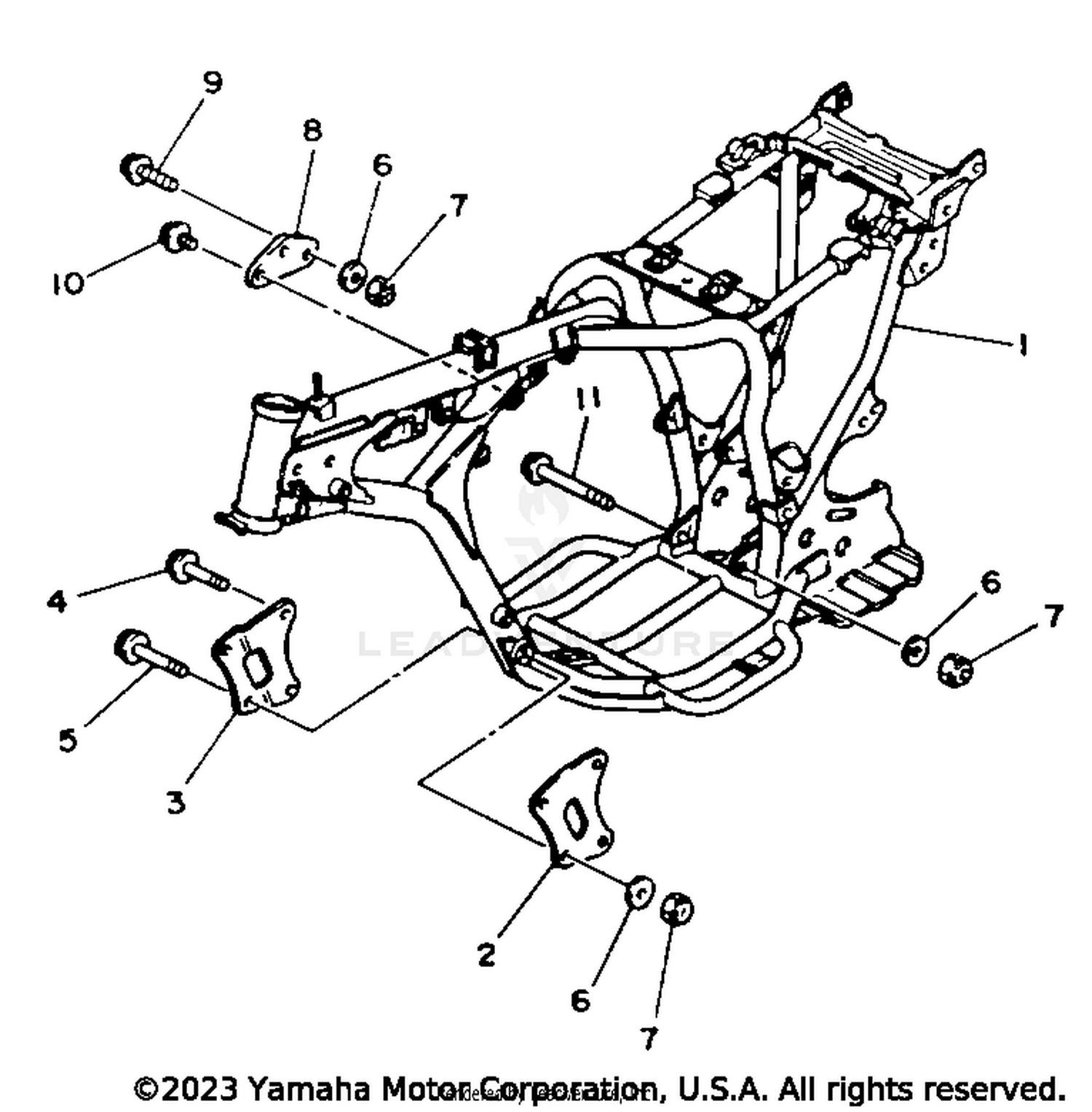

FRAME
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 21V-21316-00-00 | STAY,ENGINE 3 Price: $7.99 |
| 3 | 21V-21317-00-00 | STAY,ENGINE 4 Price: $8.49 |
| 4 | 95814-08065-00 | BOLT, FLANGE This part replaces 95811-08065-00. Price: $5.49 |
| 5 | 95817-08075-00 | BOLT, FLANGE This part replaces 95811-08075-00. Price: $5.49 |
| 6 | 90201-094G1-00 | WASHER, PLATE Price: $10.49 |
| 7 | 90185-08089-00 | NUT, SELF-LOCKING Price: $10.49 |
| 8 | 24W-21315-00-00 | STAY,ENGINE 2 Price: $7.49 |
| 9 | 95817-08050-00 | BOLT, FLANGE This part replaces 95811-08050-00. Price: $3.70 |
| 10 | 95817-08016-00 | BOLT,FLANGE (JN5) This part replaces 95811-08016-00. Price: $5.49 |
