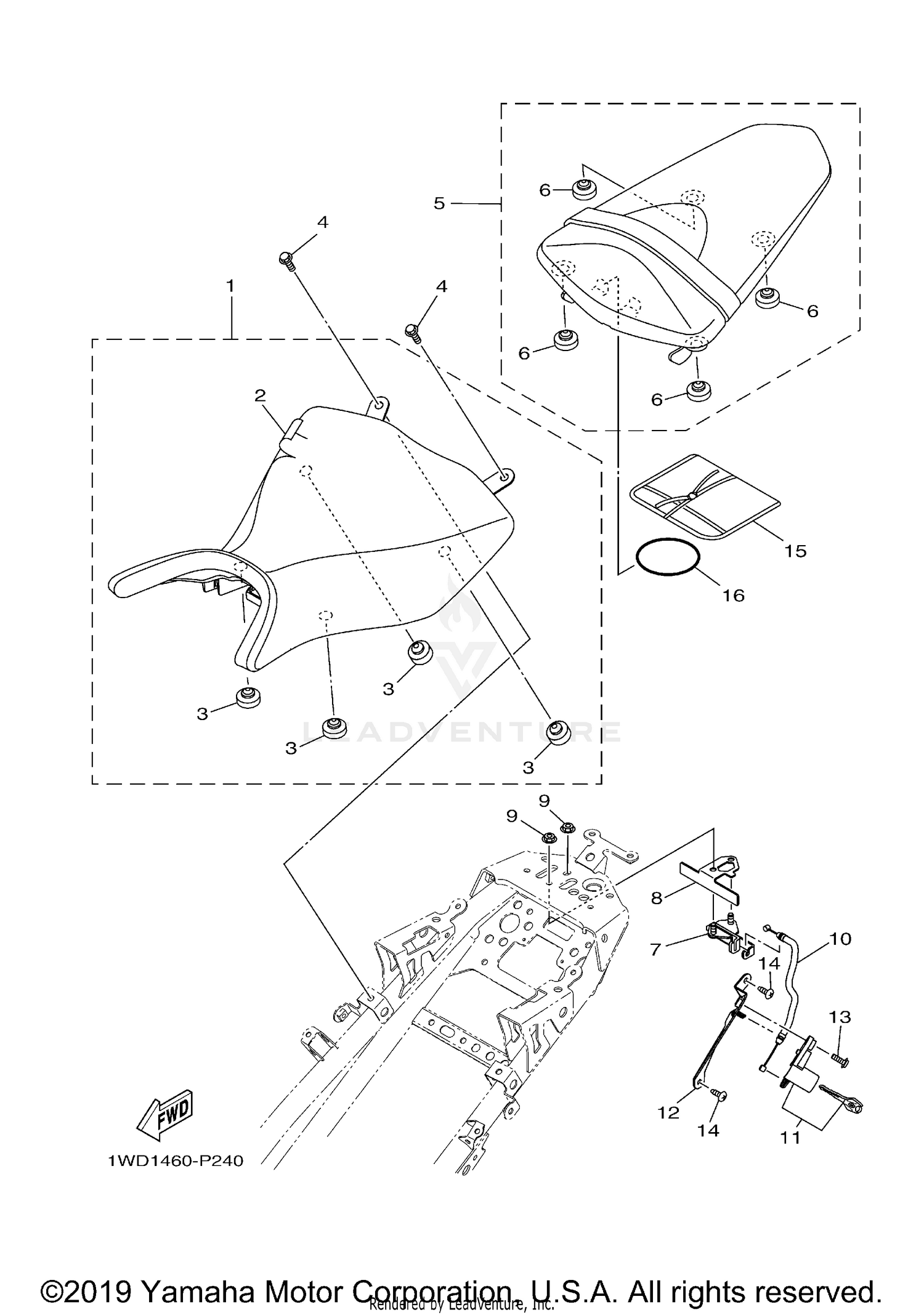

SEAT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1WD-F4710-03-00 | SINGLE SEAT ASSY This part replaces 1WD-F4710-01-00. Price: $47.99 |
| 2 | 1WD-F4711-01-00 | COVER, SINGLE SEAT This part replaces 1WD-F4711-00-00. Price: $12.49 |
| 3 | 5BP-F4741-00-00 | PAD, SEAT Price: $3.50 |
| 4 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 5 | 1WD-F4750-01-00 | TANDEM SEAT ASSY This part replaces 1WD-F4750-00-00. Price: $72.99 |
| 6 | 3C1-F4741-00-00 | PAD, SEAT Price: $2.35 |
| 7 | 1WD-F4780-00-00 | SEAT LOCK ASSY Price: $20.99 |
| 8 | 1WD-F4792-00-00 | PLATE Price: $17.49 |
| 9 | 95707-06500-00 | NUT, FLANGE Price: $1.00 |
| 10 | 1WD-F478E-00-00 | CABLE, SEAT LOCK Price: $8.49 |
| 11 | 1WD-WF479-00-00 | ROTOR SUB ASSY WITH KEY Price: $66.99 |
| 12 | 1WD-F117K-00-00 | STAY, LOCK Price: $4.50 |
| 13 | 90159-06054-00 | SCREW, WITH WASHER Price: $2.80 |
| 14 | 97702-50016-00 | SCREW, TAPPING Price: $2.60 |
| 15 | 1WD-F8100-00-00 | TOOL KIT Price: $38.99 |
