Parts Catalog

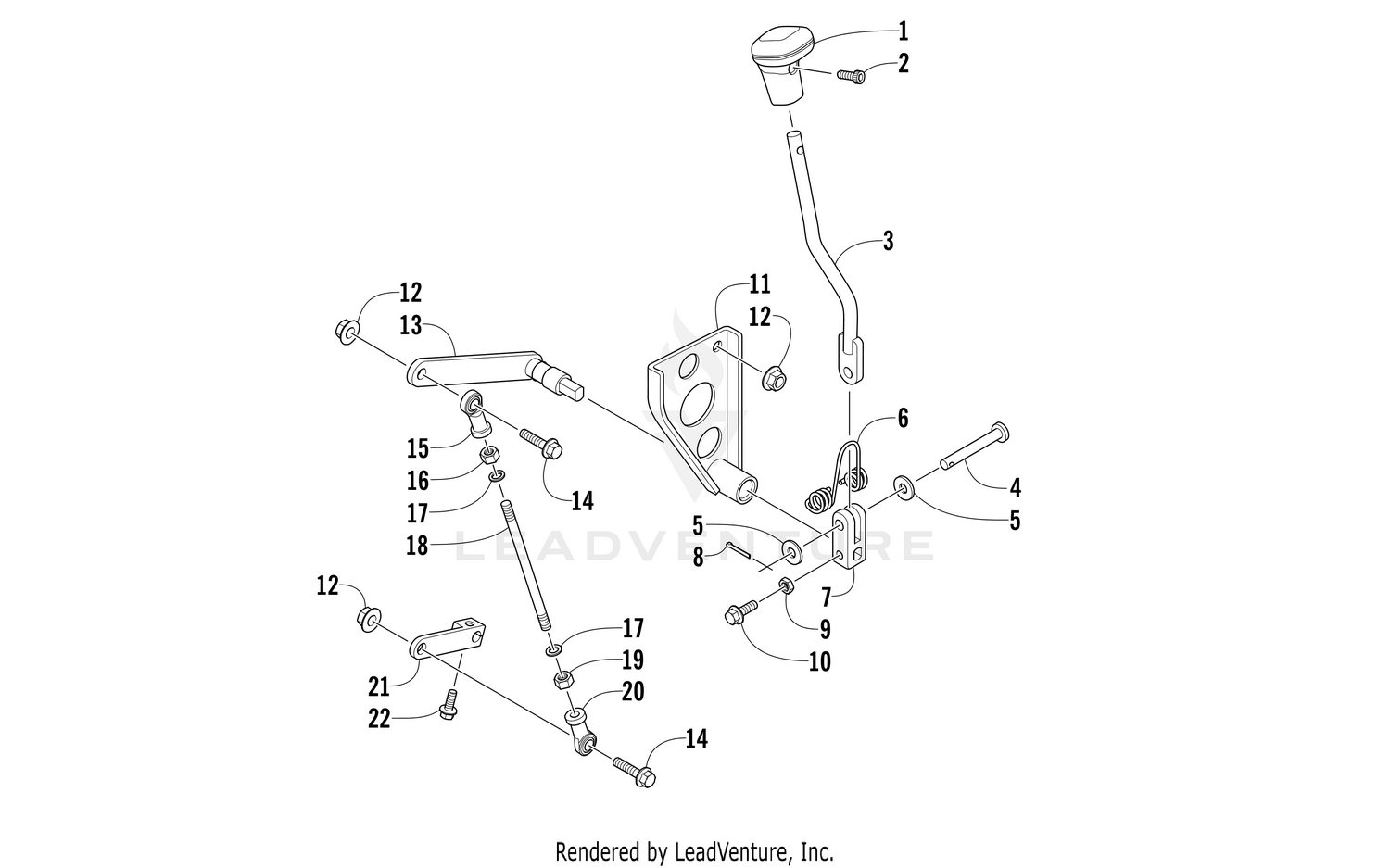

SHIFT LEVER ASSEMBLY [302187]

Parts (21)

Ref	Part Number	Description
1	3303-823	COVER CHANGE HANDLE Price: $12.81
2	3304-401	SOCKET BOLT 5*12 Price: $2.00
3	3307-820	BAR CHANGE HANDLE Price: $14.25
4	3303-817	PIN CHANGE HANDLE Price: $2.98
5	3304-138	Washer Price: $0.99
6	3303-818	SPRING CHANGE HANDLE Price: $17.09
7	3303-819	BRKT CHANGE HANDLE Price: $40.95
8	3304-142	PIN SPLIT 2*15 Price: $1.56
9	3307-774	NUT HEX 6MM Price: $0.77
10	3307-061	BOLT FLANGE SH 6*16 Price: $3.14
11	3305-299	STAY CHANGE HNDL ASSY Price: $30.95
12	3303-332	NUT FLANGE 8MM Price: $0.93
13	3307-822	SHAFT COMP CHANGE HANDLE Price: $23.53
14	3304-176	BOLT FLANGE 8*28 Price: $1.72
15	3303-970	JOINT R BALL Price: $40.95
16	3304-125	NUT HEX 8MM Price: $0.93
17	3303-607	WASHER SPRING 8MM Price: $0.93
18	3303-822	ROD CHANGE HNDL Price: $102.95
19	3304-126	NUT HEX LH 8MM Price: $1.41
20	3303-972	JOINT L BALL Price: $40.95
21	3303-814	GEAR CHANGE HNDL LINK Price: $35.95
