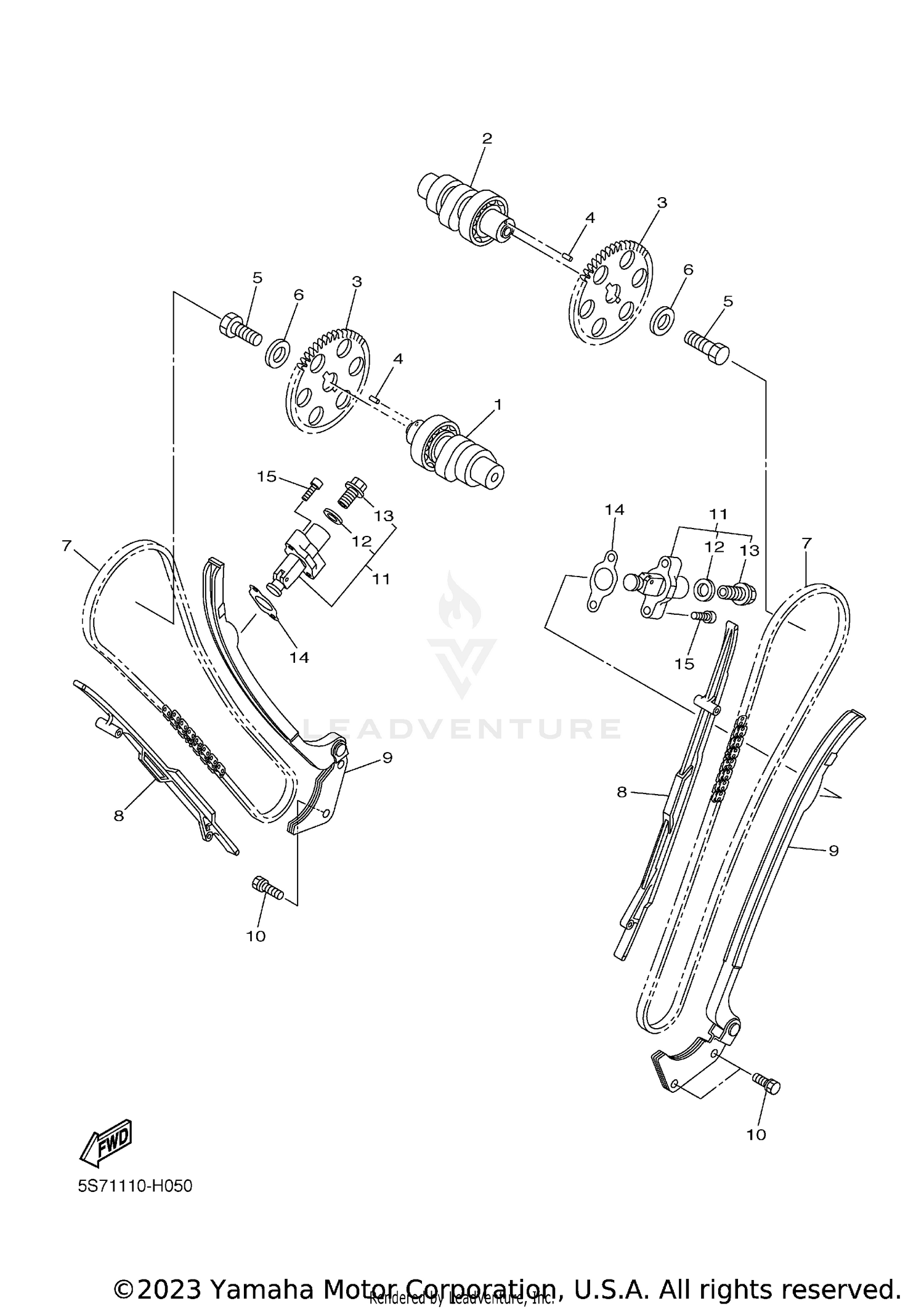

CAMSHAFT & CHAIN
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5S7-12170-10-00 | CAMSHAFT ASSY 1 Price: $152.99 |
| 2 | 5S7-12180-10-00 | CAMSHAFT ASSY 2 Price: $152.99 |
| 3 | 5S7-12176-00-00 | SPROCKET, CAM CHAIN Price: $42.99 |
| 4 | 93604-12037-00 | PIN, DOWEL Price: $9.49 |
| 5 | 90101-10016-00 | BOLT Price: $4.45 |
| 6 | 90201-10774-00 | WASHER, PLATE This part replaces 90201-10591-00. Price: $10.49 |
| 7 | 94591-59132-00 | CHAIN Price: $36.99 |
| 8 | 5S7-12231-00-00 | GUIDE, STOPPER 1 Price: $26.99 |
| 9 | 3D8-12241-01-00 | GUIDE, STOPPER 2 This part replaces 3D8-12241-00-00. Price: $81.99 |
| 10 | 90119-06173-00 | BOLT, WITH WASHER Price: $1.80 |
| 11 | 31G-12210-01-00 | TENSIONER ASSY, CAM CHAIN Price: $187.99 |
| 12 | 31G-12214-00-00 | GASKET Price: $15.49 |
| 13 | 31G-12222-00-00 | PLUG Price: $26.99 |
| 14 | 3GD-12213-00-00 | GASKET, TENSIONER CASE Price: $7.49 |
