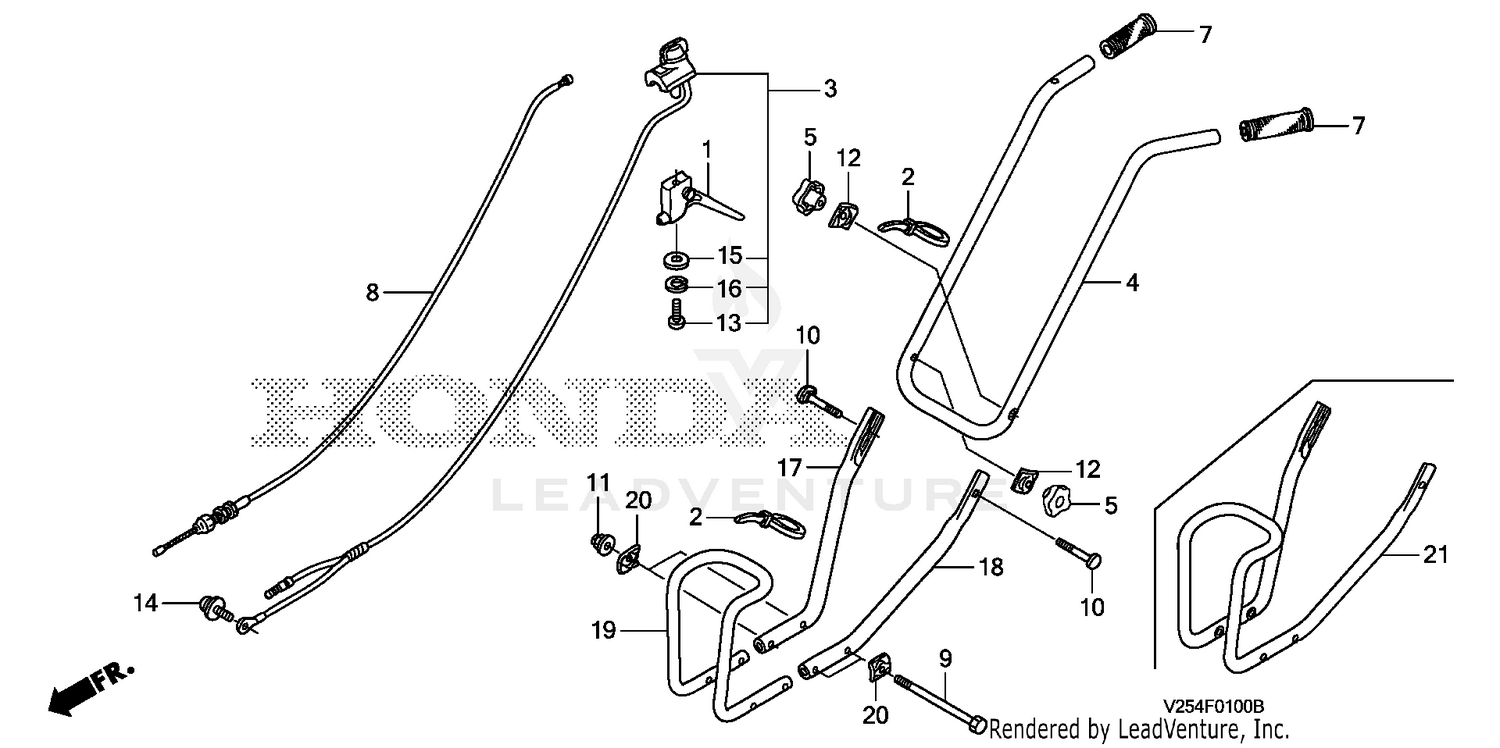

| Ref | Part Number | Description |
|---|
| 1 |
17850-V25-000 |
LEVER ASSY., THROTTLE Price: $8.34 |
| 2 |
32901-VB5-A00 |
TIE, CABLE (157.5MM) Price: $0.68 |
| 3 |
35120-V06-013 |
SWITCH ASSY., ENGINE STOP Price: $19.60 |
| 4 |
53111-V25-000 |
PIPE, HANDLE (UPPER) Price: $44.02 |
| 5 |
53125-VE1-R00 |
GRIP, HANDLE JOINT Price: $5.50 |
| 7 |
53165-V25-000 |
GRIP, HANDLE Price: $3.22 |
| 8 |
54510-V25-000 |
CABLE, CLUTCH Price: $7.40 |
| 9 |
90104-V25-000 |
BOLT, HEX. (6X177.5) Price: $23.64 |
| 10 |
90102-V25-000 |
BOLT, HANDLE HOLDER Price: $2.12 |
| 11 |
90303-V10-000 |
NUT, NYLON LOCK (6MM) Price: $0.26 |
| 12 |
90501-898-000 |
WASHER, FRAME JOINT Price: $2.92 |
| 13 |
93500-03012-0A |
SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0182154). Price: $1.04 |
| 14 |
93893-05012-00 |
SCREW-WASHER (5X12) (Honda Code 0638734). Price: $1.68 |
| 15 |
94101-03800 |
WASHER, PLAIN (3MM) Price: $1.24 |
| 16 |
94111-03000 |
SEE PART DETAILS - PRI; WASHER, SPRING (3MM) Price: $1.18 |
| 20 |
90501-V25-000 |
WASHER, FRAME JOINT Price: $0.62 |
