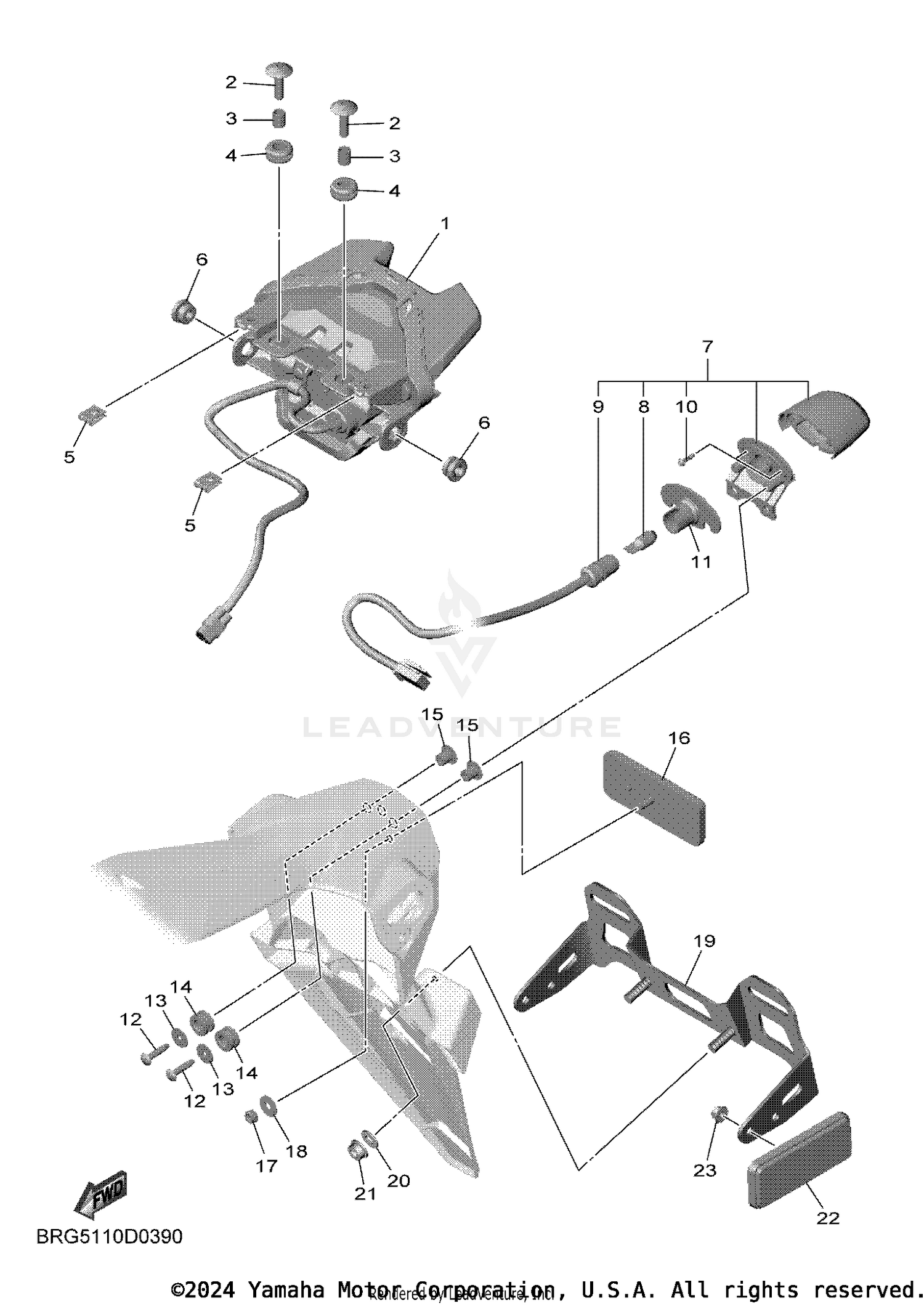

| Ref | Part Number | Description |
|---|
| 1 |
B4C-84710-02-00 |
TAILLIGHT UNIT ASSY This part replaces B6S-H4710-02-00. Price: $138.99 |
| 2 |
90111-06117-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.80 |
| 3 |
90387-067V1-00 |
COLLAR Price: $3.20 |
| 4 |
90480-13001-00 |
GROMMET Price: $1.30 |
| 5 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 6 |
90480-10003-00 |
GROMMET Price: $9.49 |
| 7 |
BS7-H4740-10-00 |
LICENSE LIGHT ASSY Price: $25.99 |
| 8 |
1WD-H4744-00-00 |
BULB (12V-5W) Price: $13.49 |
| 9 |
BS7-H4547-00-00 |
CORD, LICENSE LIGH Price: $5.99 |
| 10 |
1WD-H4726-00-00 |
SCREW Price: $0.50 |
| 11 |
1WD-H4753-00-00 |
DAMPER Price: $1.30 |
| 12 |
97707-40020-00 |
SCREW, TAPPING Price: $0.70 |
| 13 |
90201-047A2-00 |
WASHER, PLATE This part replaces 90201-04804-00. Price: $4.00 |
| 14 |
90480-11009-00 |
GROMMET Price: $1.20 |
| 15 |
90387-05042-00 |
COLLAR Price: $6.49 |
| 16 |
3C1-H5130-00-00 |
REAR REFLECTOR ASSY Price: $4.20 |
| 17 |
95617-05100-00 |
NUT, U This part replaces 95602-05100-00. Price: $10.49 |
| 18 |
90201-05043-00 |
WASHER, PLATE Price: $8.49 |
| 19 |
2MS-H4751-00-00 |
BRACKET, LICENSE Price: $14.49 |
| 20 |
90201-06055-00 |
WASHER, PLATE Price: $3.20 |
| 21 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95607-06200-00. Price: $2.95 |
| 22 |
3C1-H5130-00-00 |
REAR REFLECTOR ASSY Price: $4.20 |
