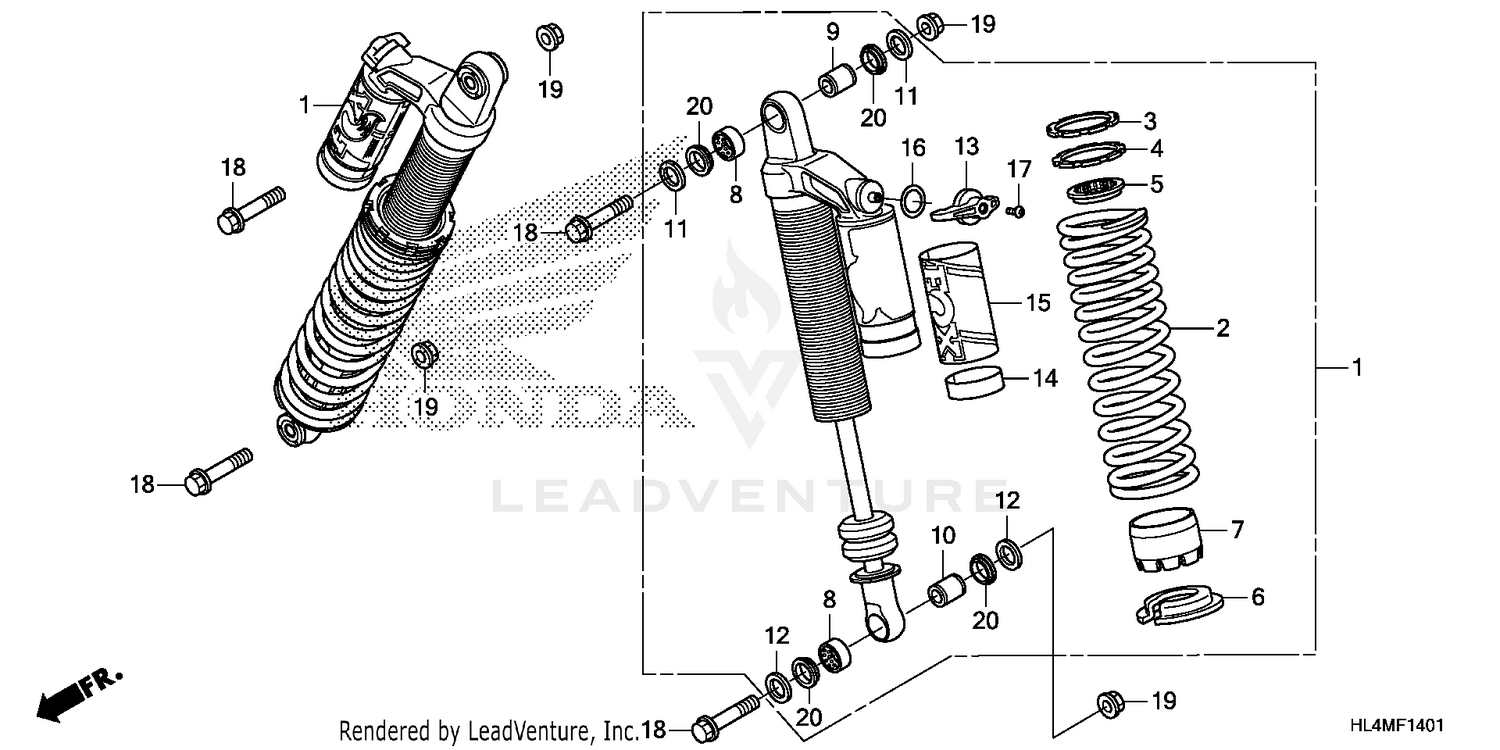

| Ref | Part Number | Description |
|---|
| 1 |
51400-HL4-AH1ZA |
CUSHION ASSY., FR. (TYPE1) Price: $1,085.05 |
| 2 |
51401-HL4-AH1 |
SPRING, FR. FORK Price: $299.24 |
| 3 |
51403-HL4-F41 |
RING, BACK-UP PRELOAD Price: $16.96 |
| 4 |
51404-HL4-F41 |
RING, PRELOAD Price: $17.60 |
| 5 |
51405-HL4-F41 |
ADAPTER, SPRING Price: $5.15 |
| 6 |
51408-HL4-F41 |
RETAINER, SPRING (LOWER) Price: $51.20 |
| 7 |
51409-HL4-F41 |
GUIDE, SPRING Price: $5.47 |
| 8 |
51421-HL4-F41 |
BUSHING, EYELET Price: $6.45 |
| 9 |
51422-HL4-F41 |
SLEEVE, EYELET Price: $14.82 |
| 10 |
51423-HL4-F41 |
SLEEVE, EYELET Price: $15.16 |
| 11 |
51424-HL4-F41 |
SPACER, EYELET Price: $5.05 |
| 12 |
51425-HL4-F41 |
SPACER, EYELET Price: $4.36 |
| 13 |
51426-HL4-F41 |
KNOB, DAMPING ADJUST Price: $7.55 |
| 14 |
51427-HL6-A01ZA |
DECAL, BAND (TYPE1) Price: $17.27 |
| 15 |
51428-HL6-A01ZA |
DECAL, RESERVOIR (TYPE1) Price: $10.71 |
| 16 |
51429-HL4-F41 |
DECAL, BASE VALVE Price: $11.89 |
| 17 |
90110-HL4-F41 |
BOLT, TORX Price: $1.55 |
| 18 |
90163-S73-000 |
BOLT, FLANGE (12X60) (NOT AVAILABLE USE REPLACEMENT 90173-SM4-000) (NA USE ALT:90173-SM4-000) Price: $0.64 |
| 19 |
90305-HC4-000 |
NUT, SELF-LOCK (12MM) Price: $5.27 |
