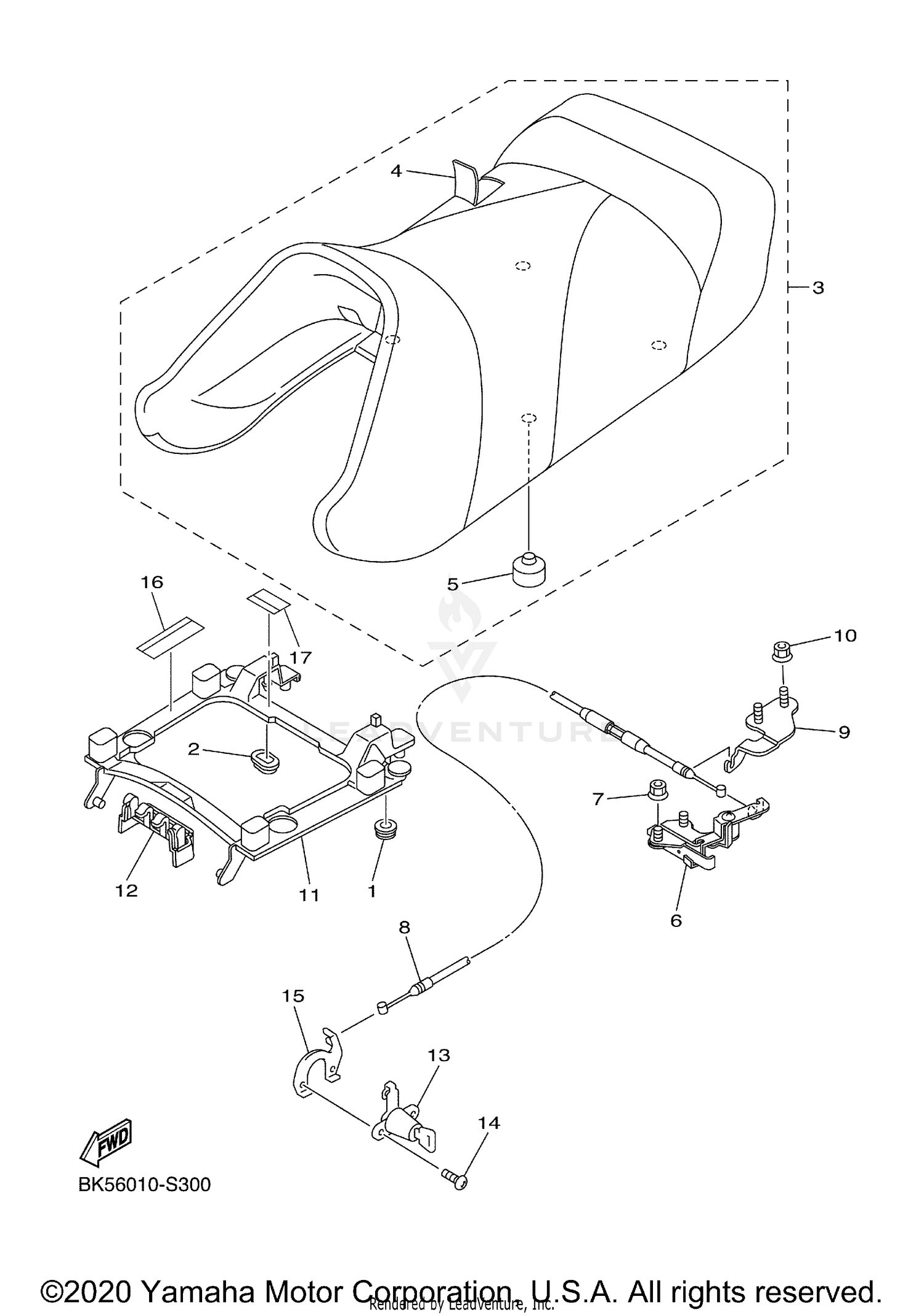

SEAT
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 90480-13567-00 | GROMMET Price: $5.49 |
| 2 | 90480-01558-00 | GROMMET Price: $4.65 |
| 3 | 5P5-24710-02-00 | SINGLE SEAT ASSY This part replaces 5P5-24710-01-00. Price: $268.99 |
| 4 | 5P5-2470F-01-00 | SEAT COVER COMP. Price: $523.99 |
| 5 | 5JW-24741-00-00 | PAD, SEAT Price: $5.99 |
| 6 | 5P5-24780-00-00 | SEAT LOCK ASSY Price: $111.99 |
| 7 | 95702-06500-00 | NUT, WITH WASHER Price: $2.60 |
| 8 | 5P5-2478E-00-00 | CABLE, SEAT LOCK Price: $20.99 |
| 9 | 5P5-24847-00-00 | HOLDER 1 Price: $34.99 |
| 10 | 95702-06500-00 | NUT, WITH WASHER Price: $2.60 |
| 11 | 3P6-24708-00-00 | SEAT BRACKET ASSY Price: $80.99 |
| 12 | 3P6-24768-00-00 | STOPPER Price: $33.99 |
| 13 | 3CK-W2470-00-00 | SEAT LOCK ASSY This part replaces 2TV-W2470-00-00. Price: $91.99 |
| 14 | 90149-06308-00 | SCREW Price: $9.49 |
| 15 | 3P6-2117K-01-00 | STAY, LOCK This part replaces 3P6-2117K-00-00. Price: $7.49 |
| 16 | 3JJ-28446-A2-00 | LABEL, CAUTION This part replaces 3JJ-28446-A1-00. Price: $4.95 |
