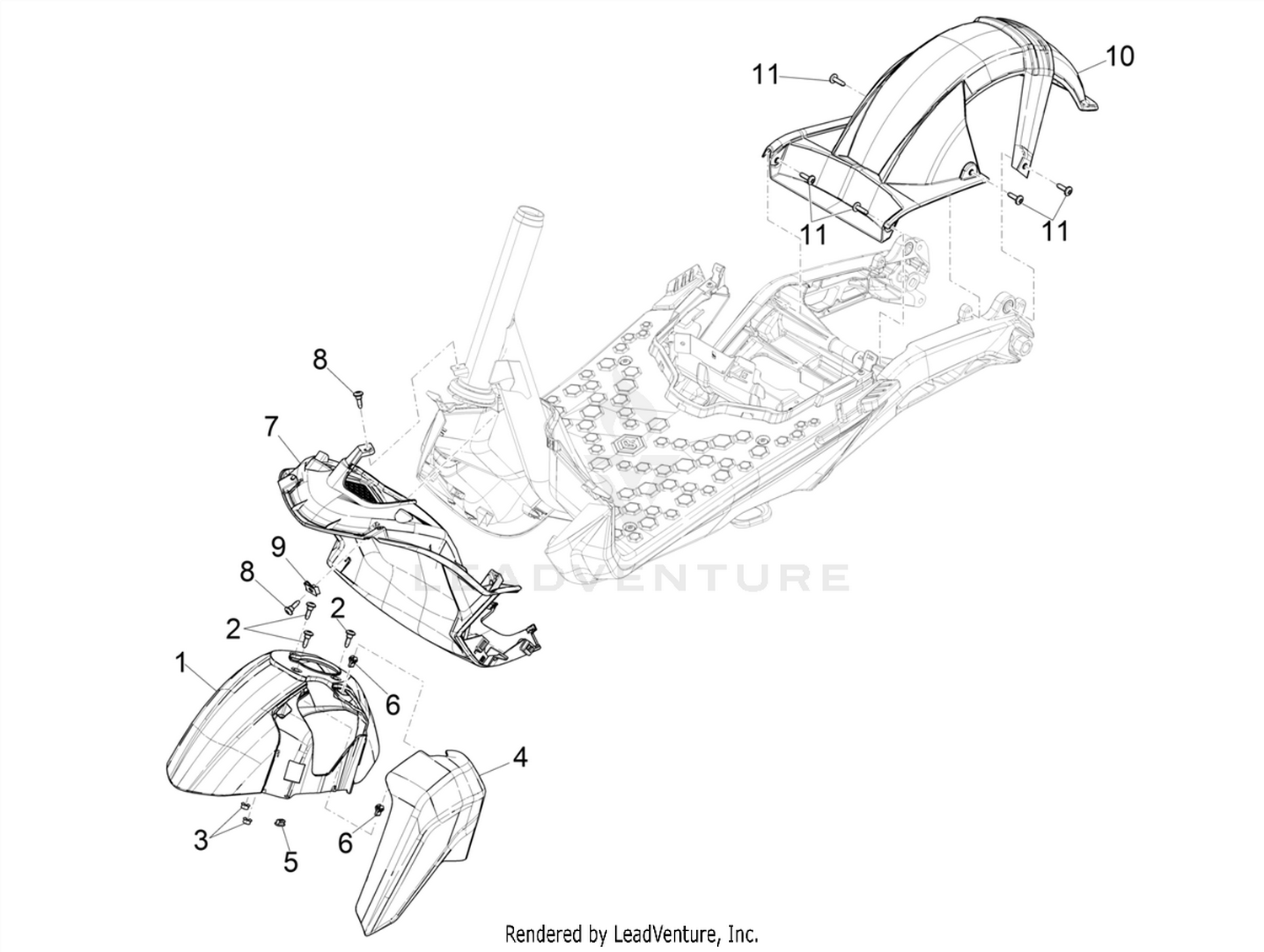

Wheel huosing - Mudguard
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1B008384 | Front splash guard Price: $25.66 |
| 1 | 1B008384000BY | Front splash guard Price: $70.08 |
| 1 | 1B008384000EX | Front splash guard Price: $70.08 |
| 1 | 1B008384000NZ | Front splash guard Price: $70.08 |
| 2 | CM179201 | Torx head cylinder head screw Price: $0.25 |
| 3 | 241936 | Self locking nut Price: $0.06 |
| 4 | 1B008382 | Mudguard cover Price: $33.75 |
| 4 | 1B0083820009C | Mudguard cover Price: $33.75 |
| 5 | 1B008878 | Stem cover holder Price: $1.10 |
| 6 | D9004468091 | Gripper clip Price: $0.25 |
| 7 | 1B008365 | Wheel compartment Price: $33.18 |
| 8 | CM179201 | Torx head cylinder head screw Price: $0.25 |
| 9 | 254485 | Spring plate Price: $0.25 |
| 10 | 1B007929 | Rear mudguard Price: $28.14 |
