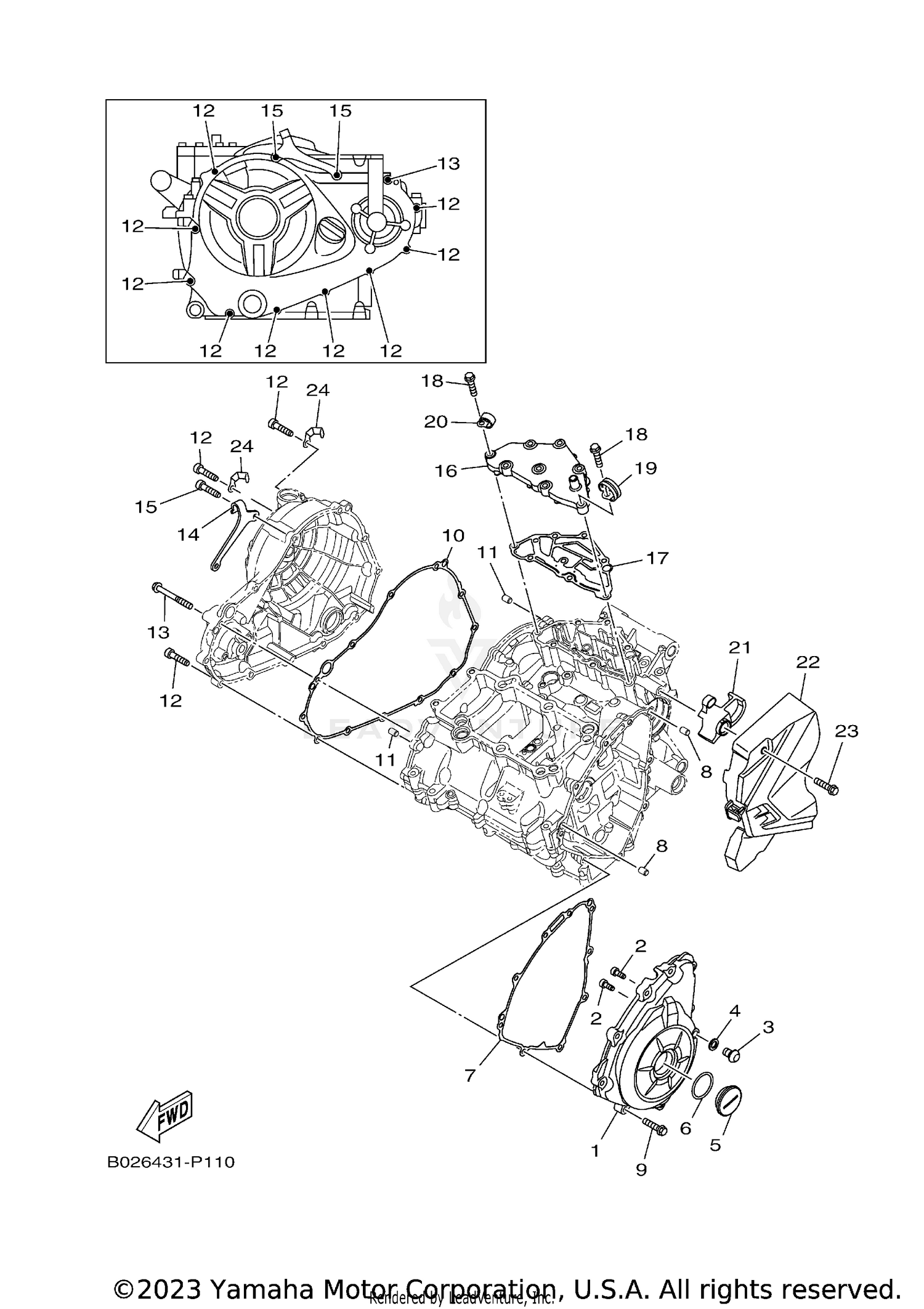

| Ref | Part Number | Description |
|---|
| 2 |
91317-05012-00 |
BOLT This part replaces 90110-05032-00. Price: $2.75 |
| 3 |
92014-08012-00 |
BOLT, BUTTON HEAD Price: $10.49 |
| 4 |
90430-08143-00 |
GASKET Price: $3.35 |
| 5 |
90340-32819-00 |
PLUG, STRAIGHT SCREW Price: $13.49 |
| 6 |
93210-32816-00 |
O-RING Price: $3.50 |
| 7 |
1WD-E5451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $6.49 |
| 8 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 9 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 10 |
1WD-E5461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $60.99 |
| 11 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 12 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 13 |
95022-06050-00 |
BOLT, FLANGE Price: $1.80 |
| 14 |
2MS-E5441-10-00 |
HOLDER, CLUTCH CABLE Price: $5.99 |
| 15 |
91317-06025-00 |
BOLT This part replaces 90110-06178-00. Price: $2.65 |
| 16 |
1WD-E5413-10-00 |
COVER Price: $46.99 |
| 17 |
1WD-E5462-00-00 |
GASKET, CRANKCASE COVER 3 Price: $3.70 |
| 18 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 19 |
90462-08819-00 |
CLAMP Price: $1.60 |
| 20 |
90462-08806-00 |
CLAMP Price: $8.99 |
| 21 |
BS7-E5377-00-00 |
GUIDE, INLET Price: $10.49 |
| 22 |
1WD-E5418-00-00 |
COVER, CHAIN CASE Price: $29.99 |
| 23 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
