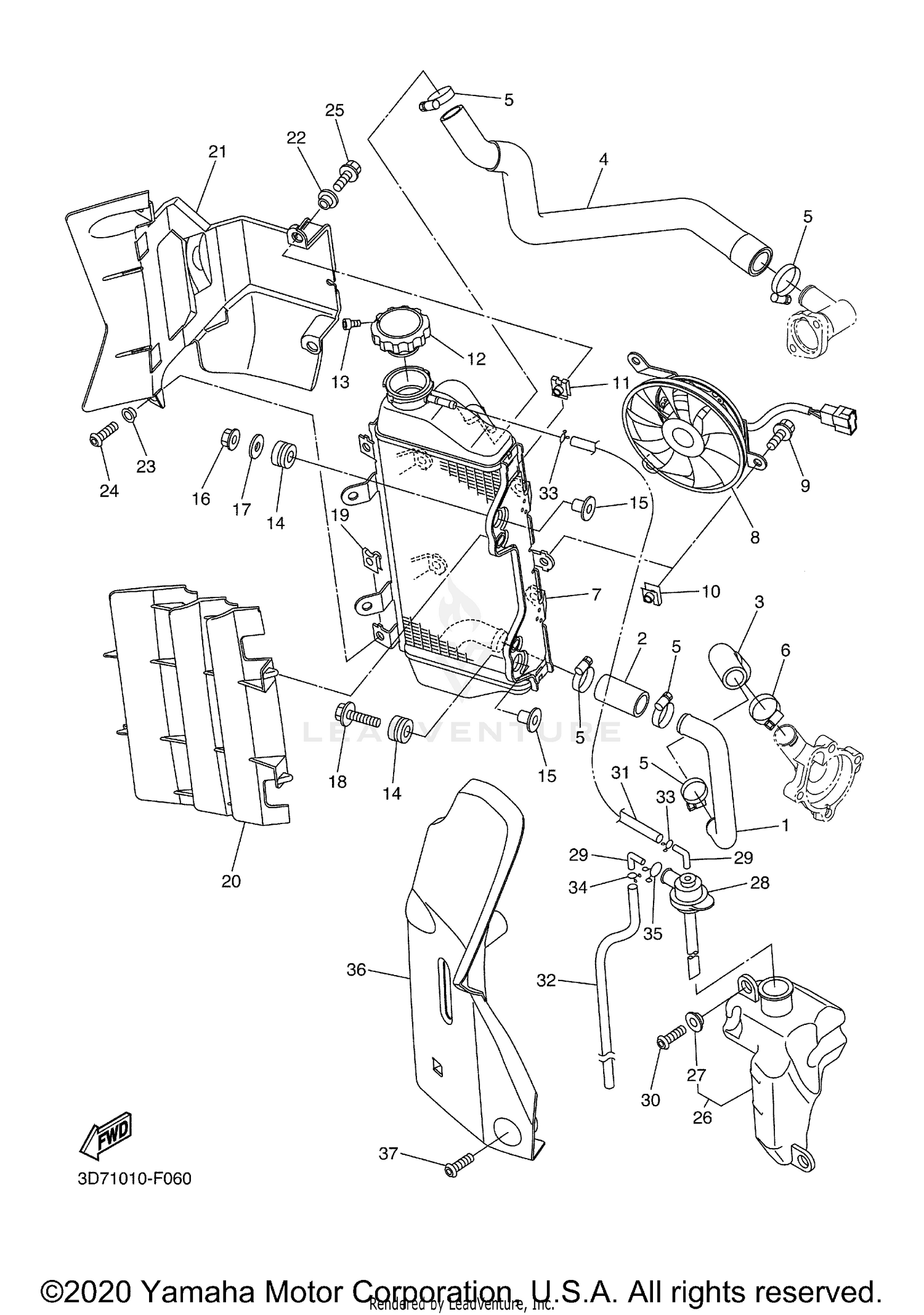

| Ref | Part Number | Description |
|---|
| 1 |
3D7-12481-00-00 |
PIPE 1 Price: $39.99 |
| 2 |
3D7-12577-00-00 |
HOSE 2 Price: $5.99 |
| 3 |
3D7-12578-00-00 |
HOSE 3 Price: $11.99 |
| 4 |
3D7-12579-00-00 |
HOSE 4 Price: $44.99 |
| 5 |
90450-22M14-00 |
HOSE CLAMP ASSY This part replaces 90450-25037-00. Price: $16.99 |
| 6 |
90450-28001-00 |
HOSE CLAMP ASSY This part replaces 90450-28014-00. Price: $16.49 |
| 7 |
3D7-12461-10-00 |
RADIATOR COMP Price: $617.99 |
| 8 |
3D7-12405-00-00 |
BLOWER ASSY Price: $403.99 |
| 9 |
5GJ-12675-00-00 |
BOLT, BLOWER HOLDING Price: $8.49 |
| 10 |
5SL-12671-00-00 |
NUT 1 Price: $7.49 |
| 11 |
5SL-12671-00-00 |
NUT 1 Price: $7.49 |
| 12 |
3D7-12462-00-00 |
CAP, RADIATOR Price: $48.99 |
| 13 |
91317-03006-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 14 |
90480-15010-00 |
GROMMET Price: $4.05 |
| 15 |
90387-0614M-00 |
COLLAR Price: $12.49 |
| 16 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 17 |
90201-06033-00 |
WASHER, PLATE Price: $3.20 |
| 18 |
90119-06181-00 |
BOLT, WITH WASHER Price: $9.49 |
| 19 |
90183-061A3-00 |
NUT, SPRING Price: $9.49 |
| 20 |
3D7-2172A-00-00 |
PANEL 1 Price: $50.99 |
| 21 |
3D7-2137Y-00-00 |
GUIDE, AIR Price: $53.99 |
| 22 |
90387-06130-00 |
COLLAR Price: $10.49 |
| 23 |
90387-06180-00 |
COLLAR Price: $6.49 |
| 24 |
90149-06105-00 |
SCREW Price: $6.49 |
| 25 |
95817-06016-00 |
BOLT, FLANGE This part replaces 90105-06690-00. Price: $1.95 |
| 26 |
3D7-21871-00-00 |
TANK, RECOVERY Price: $39.99 |
| 27 |
90387-08079-00 |
COLLAR Price: $9.49 |
| 28 |
3D7-21875-00-00 |
CAP Price: $39.99 |
| 29 |
26H-21828-00-00 |
ELBOW Price: $30.99 |
| 30 |
90149-06298-00 |
SCREW Price: $6.49 |
| 31 |
3D7-21816-00-00 |
PIPE 1 Price: $2.45 |
| 32 |
91A11-05056-00 |
TUBE, FLEXIBLE Price: $6.49 |
| 33 |
90467-08003-00 |
CLIP, SCISSOR Price: $11.49 |
| 34 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 35 |
90467-10M04-00 |
CLIP Price: $7.70 |
| 36 |
3D7-2175E-01-00 |
PANEL, INNER Price: $34.99 |
