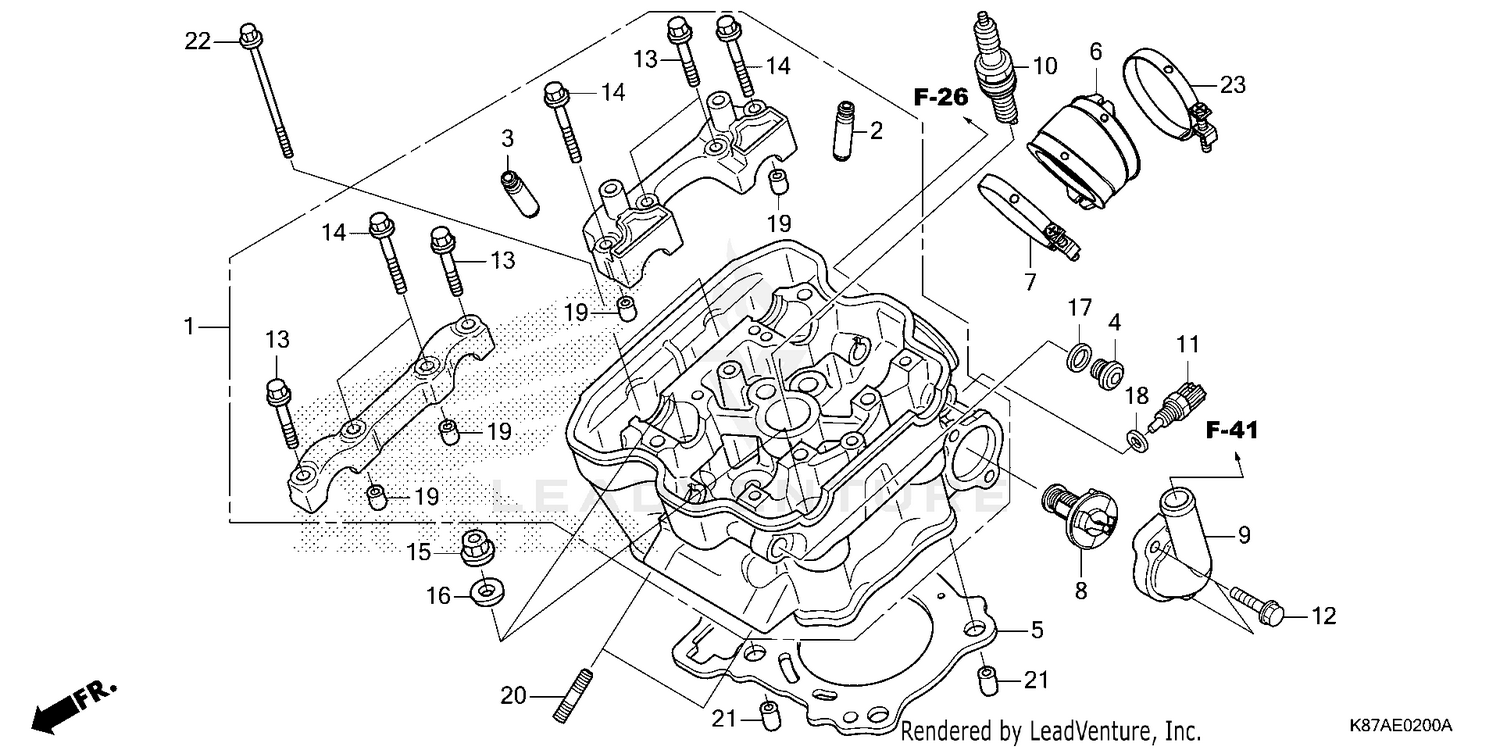

| Ref | Part Number | Description |
|---|
| 1 |
12010-K2Y-A00 |
CYLINDER HEAD ASSY. Price: $150.16 |
| 2 |
12204-KYJ-305 |
GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE) Price: $23.31 |
| 3 |
12205-KYJ-305 |
GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE) Price: $23.31 |
| 4 |
12207-KYJ-900 |
BOLT, SEALING (12MM) Price: $1.69 |
| 5 |
12251-K2Y-A01 |
GASKET, CYL HD Price: $12.05 |
| 6 |
16211-K2Y-A00 |
INSULATOR Price: $22.97 |
| 7 |
16217-K1T-E10 |
BAND, INSULATOR Price: $14.20 |
| 8 |
19300-K0A-DB1 |
THERMOSTAT Price: $23.25 |
| 9 |
19321-K0A-EB0 |
COVER, THERMOSTAT Price: $3.22 |
| 10 |
31916-MEH-003 |
SPARK PLUG (SIMR8A9) (NGK) Price: $22.13 |
| 11 |
37870-KRJ-901 |
SENSOR ASSY., WATER TEMPERATURE Price: $37.25 |
| 12 |
90011-KYJ-900 |
BOLT, FLANGE (6X22) (NSHF) Price: $0.55 |
| 13 |
90017-KYJ-900 |
BOLT, FLANGE (6X32) Price: $0.87 |
| 14 |
90019-KYJ-900 |
BOLT, FLANGE (6X39.5) Price: $0.95 |
| 15 |
90204-K87-A30 |
NUT, FLANGE (10MM) Price: $1.40 |
| 16 |
90410-GCC-000 |
WASHER (10MM) Price: $2.45 |
| 17 |
90418-KYJ-900 |
WASHER (12.2X17X1.5) Price: $1.07 |
| 18 |
90454-MC7-000 |
WASHER, SPECIAL (12MM) Price: $2.98 |
| 19 |
90702-KRM-840 |
PIN, DOWEL (8X14) Price: $0.76 |
| 19 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 20 |
92900-08022-3E |
BOLT, STUD (8X22) Price: $2.64 |
| 21 |
94301-12160 |
PIN A, DOWEL (12X16) Price: $2.58 |
| 22 |
95701-06120-00 |
BOLT, FLANGE (6X120) Price: $1.24 |
