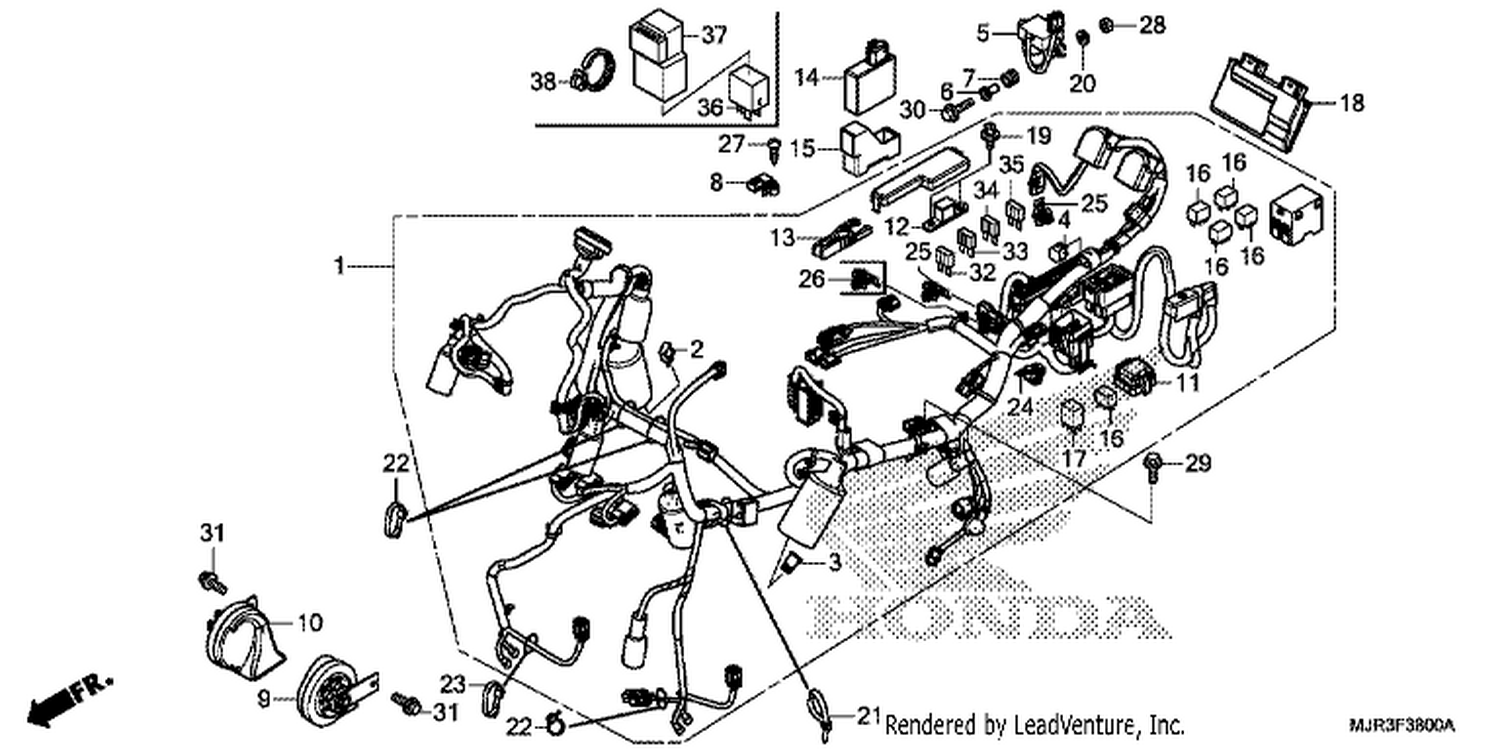

WI RE HARNESS

 WI RE HARNESS

Parts (34)

RefPart NumberDescription
1 32100MJR640 HARNESS, WIRE Price: Call Us
2 32146SJ4003 DIODE (3P) Price: Call Us
3 32147SF1003 CONNECTOR, DIODE (3P) Price: Call Us
4 32606GEV761 CAP, DUMMY (4P) (RED) Price: Call Us
5 35161MJR671 SENSOR COMP., BANK ANGLE Price: Call Us
6 35162MJR671 COLLAR Price: Call Us
7 35163MGC003 GROMMET Price: Call Us
8 37830MEL003 SENSOR ASSY., MAP Price: Call Us
9 38110MCA003 HORN ASSY. (HIGH) Price: Call Us
10 38120MCA003 HORN ASSY. (LOW) Price: Call Us
11 38182SDA003 COVER, RELAY BLOCK UPPER (2P) Price: Call Us
12 38213SP0003 FUSE, BLOCK (120A) Price: Call Us
13 38235S04003 PULLER, MINI FUSE (SUMITOMO) Price: Call Us
14 38301MJR771 RELAY COMP., WINKER (LED) Price: Call Us
15 38306MJR670 CUSHION, WINKER RELAY Price: Call Us
16 38501MCAA61 RELAY ASSY., POWER (MICRO ISO 4P) Price: Call Us
17 38503MCAA61 RELAY COMP., POWER (MICRO ISO 4P) Price: Call Us
18 38770MJR641 PGM FI UNIT Price: Call Us
19 90114SG0003 BOLT, 5X13 Price: Call Us
20 90504HW1670 WASHER, PLAIN, 6MM Price: Call Us
21 90620SB2003 BAND, WIRE HARNESS Price: Call Us
22 90651KV6003 BAND, WIRE, 165MM (BLACK) Price: Call Us
23 90652KT1771 BAND, WIRE (BLACK) Price: Call Us
24 91535TA0003 CLIP, COUPLER (DARK BROWN) Price: Call Us
25 91565SEL003 CLIP, COUPLER (BLACK) Price: Call Us
26 91565SEL003 CLIP, COUPLER (BLACK) Price: Call Us
27 9390325480 SCREW, TAPPING, 5X20 Price: Call Us
28 94001064900S NUT, HEX., 6MM Price: Call Us
29 957010602008 BOLT, FLANGE, 6X20 Price: Call Us
30 957010602507 BOLT, FLANGE, 6X25 Price: Call Us
31 957010801608 BOLT, FLANGE, 8X16 Price: Call Us
32 9820041000 FUSE, MINI (10A) Price: Call Us
33 9820041500 FUSE, MINI (15A) Price: Call Us
34 9820042000 FUSE, MINI (20A) Price: Call Us
